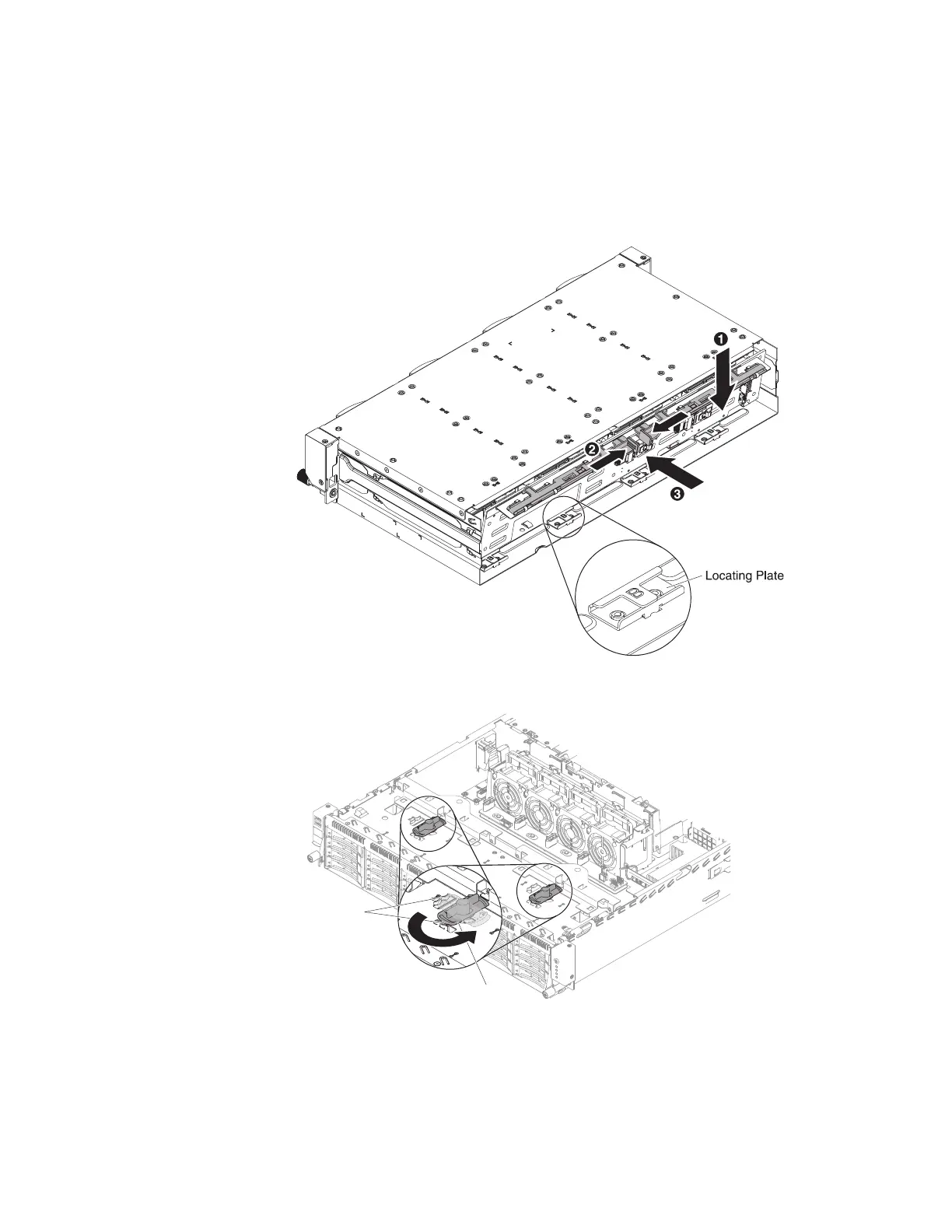

3. Lower the backplane into the server. Make sure the locating plates securely

engages the bottom of the backplane.

4. Press the release latches; then, rotate the top of the backplane toward the front

of the server until it locks into place.

Note: Make sure the backplane is engaged into place by the locating plates

and that it is securely installed in the server.

5. Rotate the blue latches counterclockwise till they are in vertical positions.

Lock point

Latche

6. Install the cover (see “Installing the cover” on page 146).

7. Install the hot-swap hard disk drives (see “Installing a hot-swap hard disk drive”

on page 138).

8. Reconnect the external cables; then, reconnect the power cords and turn on the

peripheral devices and the server.

Chapter 5. Removing and replacing server components 201
