IBM x3630 M3 7377 User Manual

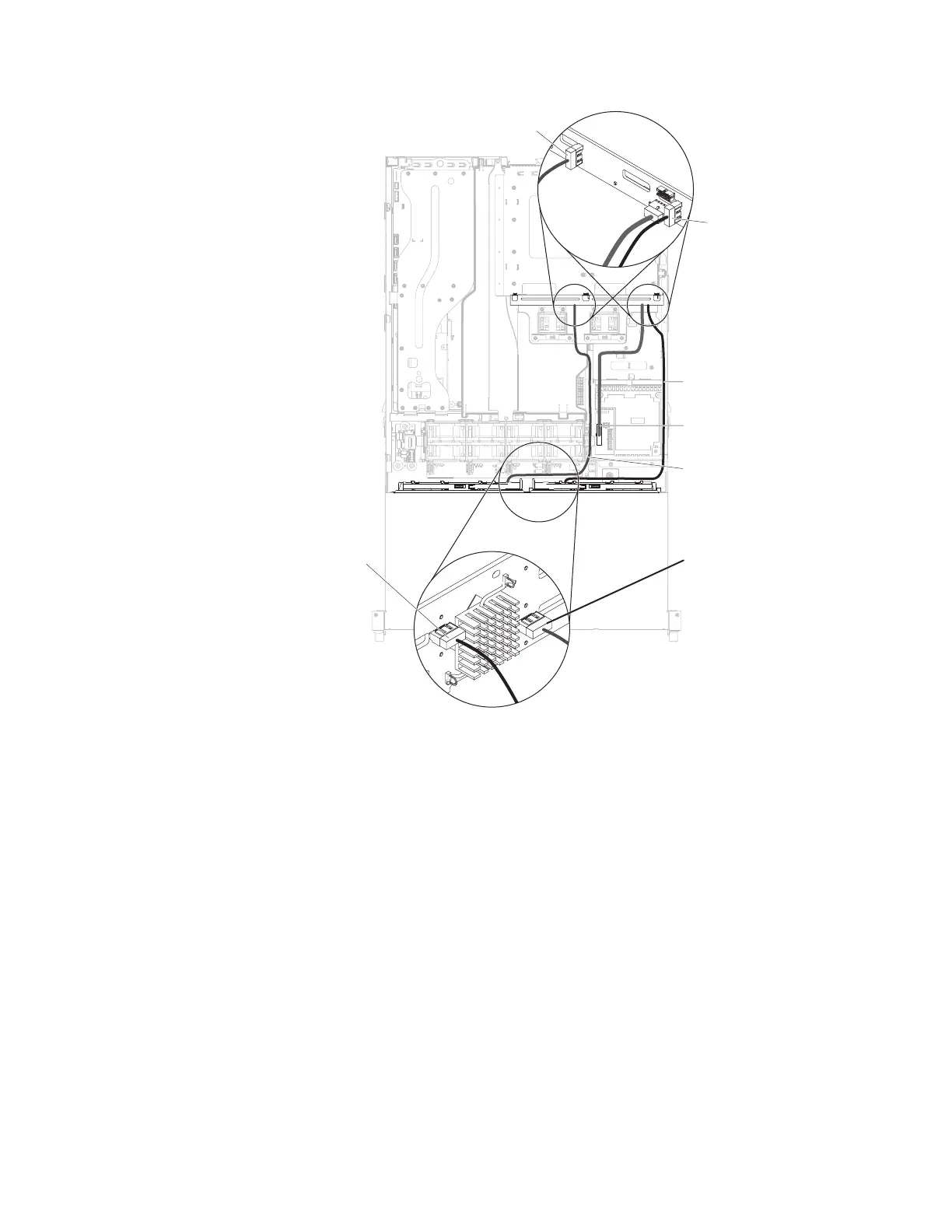

SATA signal cable 0
SATA signal cable 1
SATA 1
SATA 0
SATA 0
SATA 1
Hot-swap backplane
power cable
6. Rotate the rear hard disk drive cage 2 outwards. Then, carefully pull the rear
hard disk drive cage 3 out of the chassis.
7. Remove the air baffle (see “Removing the air baffle” on page 148).
8. Find the rear hard disk drive detect pin of the hot-swap backplane (I
2
C) cable
located near the system fan cage; then, disconnect from the rear hard disk drive
detect pin of the LED signal cable.
Chapter 5. Removing and replacing server components 203

IBM x3630 M3 7377 Specifications

General

Product Family	System x
Machine Type	7377
Max Processors	2
Chipset	Intel 5520
Memory Slots	12 DIMM slots
Processor	Intel Xeon 5600 series
Memory	Up to 192 GB
RAID Support	RAID 0, 1, 10, 5, 50
Network Interface	2 x Gigabit Ethernet
Power Supply	Hot-swap, redundant
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
