1
3
1
2

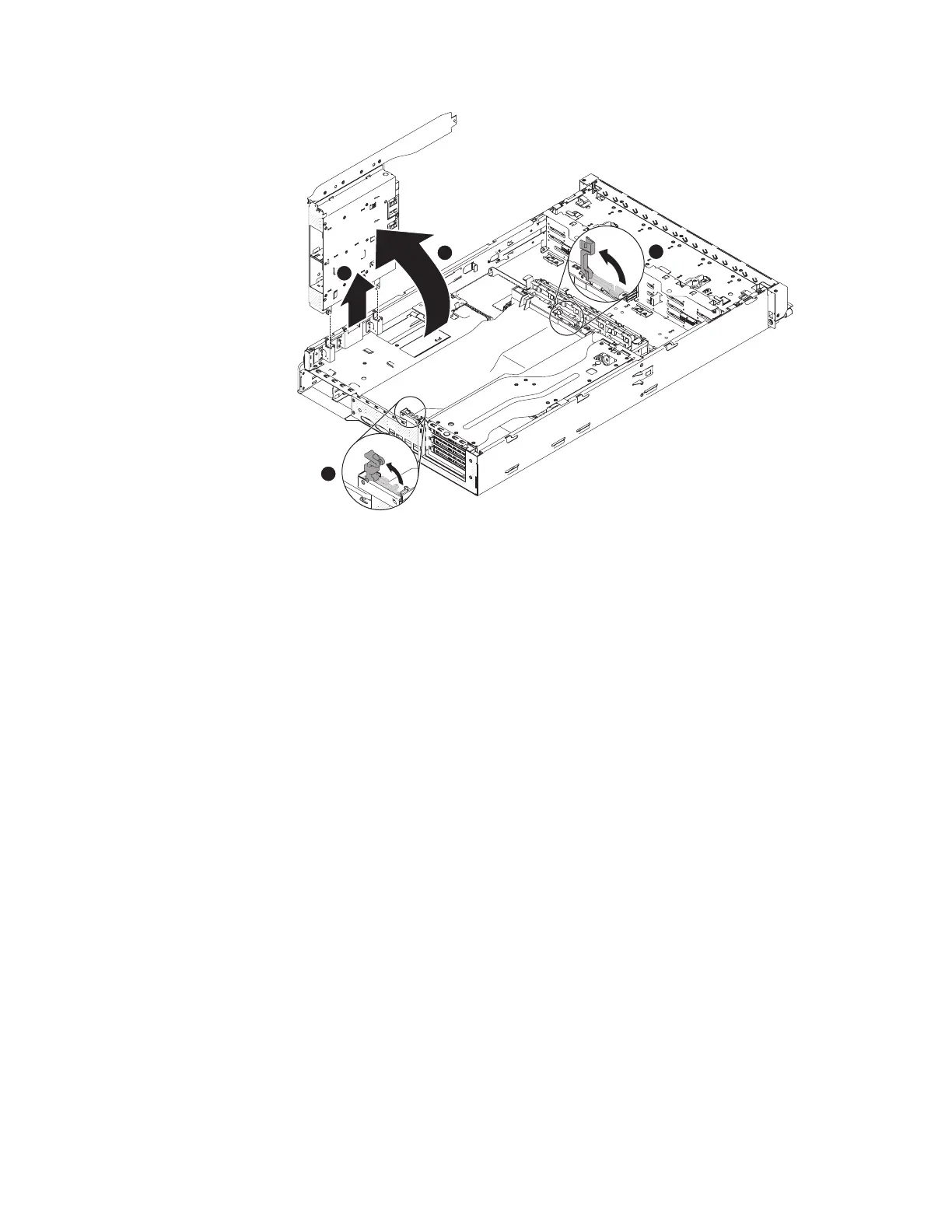

5. Make a note of where cables are attached to; then, disconnect the cables on
the rear hard disk drive cage including:
a. the signal cable and the LED signal cable on the hot-swap backplane
b. Two fan power cables from the fan board
c. One backplane power cable
Chapter 5. Removing and replacing server components 211
