1
-19
8
CKY
-66
14 WSB- Card
198
IEI
®
T
echnology
, Corp
.

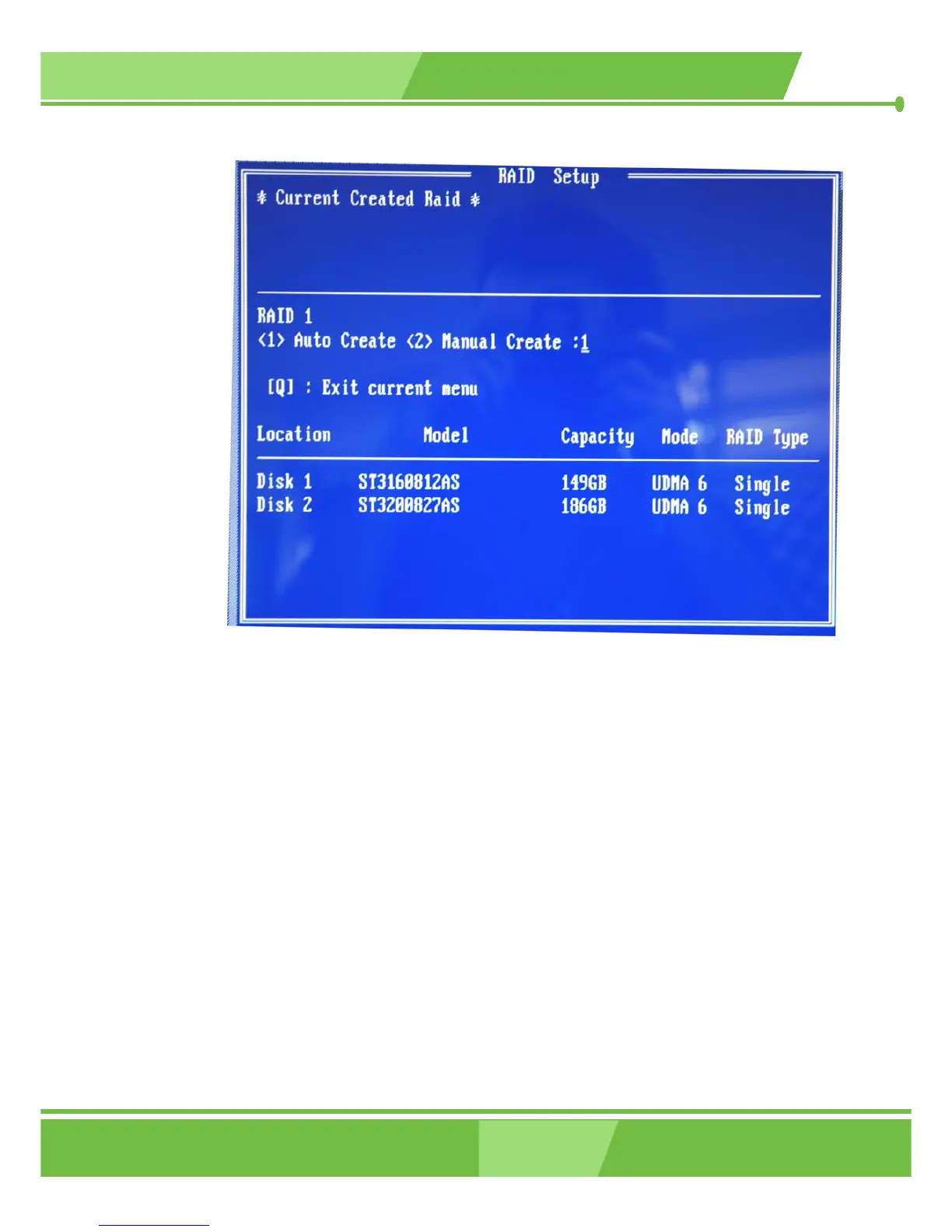

Figure E-7: Select “Auto”
Step 7:
Y
ou will then be prompted to
Auto Cre
ate
or
Manual Create
. Se
lect
Auto
Creat
e
(see
Figure
E-8
).
197
199
Table of Contents
Table of Contents
3
1 Introduction
13
Rocky-6614 Cpu Board Overview
14
Overview
14
ROCKY-6614 CPU Board Applications
14
ROCKY-6614 CPU Board Benefits
14
ROCKY-6614 CPU Board Features
14
ROCKY-6614 CPU Board Connectors
15
Figure 1-1: ROCKY-6614 CPU Board Overview
15
Technical Specifications
16
Table 1-1: Technical Specifications
17
This Page Is Intentionally Left Blank
18
2 Detailed Specifications
19
Compatible Iei Backplanes
20
Cpu Support
20
Celeron D
20
P4 Prescott
20
Table 2-1: Supported Cpus
20
Onboard Chipsets
21
Northbridge and Southbridge Chipsets
21
Sis661Cx Northbridge Chipset
21
Sis964 Southbridge Chipset
22
Data Flow
22
Figure 2-1: Data Flow Block Diagram
23
Graphics Support
24
Memory Support
24
Gbe Ethernet
25
Pci Bus Interface Support
25
Drive Interfaces
26
Floppy Disk Drive (FDD)
26
IDE HDD Interfaces
26
SATA Drives
26
Serial Ports
26
Bios
27
Infrared Data Association (Irda) Interface
27
Real Time Clock
27
System Monitoring
27
Usb Interfaces
27
Audio Codec
28
Operating Temperature and Temperature Control
28
Power Consumption
29
Packaged Contents and Optional Accessory Items
30
Optional Accessory Items
30
Package Contents
30
Table 2-2: Power Consumption
30
3 Connectors and Jumpers
31
Peripheral Interface Connectors
32
ROCKY-6614 CPU Board Layout
32
Figure 3-1: Connector and Jumper Locations
32
Peripheral Interface Connectors
33
Onboard Jumpers
34
Rear Panel Connectors
34
Table 3-1: Peripheral Interface Connectors
34
Table 3-2: Peripheral Interface Connectors
34
Table 3-3: Onboard Jumpers
34
Internal Peripheral Connectors
35
FDD Connector
35
Figure 3-2: FDD Connector Location
36
Table 3-4: FDD Connector Pinouts
36
IDE Connectors
37
Table 3-5: IDE Connector Pinouts
37
COM Ports
38
Figure 3-3: IDE Connector Location
38
Figure 3-4: COM Port Locations
39
Parallel Port
39
Table 3-6: Internal COM Port Connector Pinouts
39
Figure 3-5: LPT Connector Location
40
Table 3-7: LPT Connector Pinouts
40
Figure 3-6: USB Port Connector Location
41
Internal USB Connectors
41
Table 3-8: USB Port Connector Pinouts
41
Cooling Fan Connector
42
Figure 3-7: Cooling Fan Connector Locations
42
Table 3-9: Cooling Fan Connector Pinouts
42
Backplane to Mainboard ATX Connector
43
Figure 3-8: ATXCTL1 Connector Locations
43
Table 3-10: CN7 Connector Pin Outs
43
System Front Panel Connector
44
Table 3-11: System Panel Connector Pinouts
44
Figure 3-9: System Panel Connector Location
45
Irda Connector
45
Figure 3-10: Irda Connector Location
46
Table 3-12: Irda Connector Pinouts
46
SATA Drive Connectors
47
Table 3-13: SATA Connector Pinouts
47
Figure 3-11: SATA Connector Locations
48
Figure 3-12: KB1 Connector Location
49
Keyboard Connector
49
Table 3-14: KB1 Connector Pinouts
49
ATX-12V Power Source Connector
50
Figure 3-13: ATX Connector Location
50
Table 3-15: CN100 Connector Pinouts
50
External (Rear Panel) Connectors
51
PS/2 Connector
51
Figure 3-14: ROCKY-6614 CPU Board Rear Panel
51
Ethernet Connectors
52
Figure 3-15: PS/2 Pinout Locations
52
Table 3-16: PS/2 Pinouts
52
Table 3-17: USB Connectors
52
USB Connectors
52
Figure 3-16: RJ-45 Ethernet Connector
53
Table 3-18: RJ-45 Ethernet Connector Pinouts
53
Table 3-19: RJ-45 Ethernet Connector Leds
53
VGA Connector
53
Onboard Jumpers
54
Table 3-20: VGA Connector Pinouts
54
Reset CMOS Jumper
55
Figure 3-18: Jumper Locations
55
Table 3-21: JP2 Jumper Settings
56
4 Installation and Configuration
57
Installation Considerations
58
Installation Notices
58
Unpacking
59
Checklist
59
Unpacking Precautions
59
Rocky-6614 Cpu Card Installation
60
CPU Installation
61
CPU Selection: HT Functionality Requirements
61
Cooling Kit (CF-520) Installation
64
Figure 4-1: Intel LGA775 Socket
62
Figure 4-2: Remove the CPU Socket Protective Shield
62
Figure 4-3: Open the CPU Socket Load Plate
63
Figure 4-4: Insert the CPU
63
Chassis Installation
69
Rear Panel Connectors
69
Ethernet Connection
69
LCD Panel Connection
69
USB Connection
69
Figure 4-5: IEI CF-520 Cooling Kit
64
DIMM Module Installation
66
Purchasing the Memory Module
66
Figure 4-6: Securing the Heatsink to the PCB Board
66
DIMM Module Installation
67
Peripheral Device Connection
67
Table 4-1: IEI Provided Cables
67
IDE Disk Drive Connector (IDE1)
68
Floppy Drive Connector (FDD1)
68
5 Ami Bios Setup
71
Introduction
72
Starting Setup
72
Using Setup
72
BIOS Menu Bar
73
Getting Help
73
Unable to Reboot after Configuration Changes
73
Table 5-1: BIOS Navigation Keys
73
Main
74
System Overview
74
Advanced
75
CPU Configuration
76
Menu 3: CPU Configuration
77
Ratio CMOS Setting [18]
78
Execute Disable Bit [Enabled]
78
Max CUPID Value Limit [Disabled]
78
Hardware Prefetcher [Enabled]
79
Adjacent Cache Line Prefetch [Enabled]
79
Hyper Threading Function [Disabled]
79
Auto Detect CPU and DRAM FREQU [Enabled]
79
CPU Frequency Setting [200]
79
CPU/DRAM Frequency Ratio [1:1]
80
Clock Spread Spectrum [Disabled]
81
DRAM Frequency [200*2 Mhz]
81
IDE Configuration
81
Onboard PCI IDE Controller [Both]
82
Menu 4: IDE Configuration
82
Onboard PCI IDE Mode [Legacy Mode]
83
IDE Master and IDE Slave
83
Onboard PCI S-ATA Controller
83
Hard Disk Write Protect [Disabled]
84
IDE Detect Time out (Sec) [5]
84
ATA (PI) 80Pin Cable Detection [Host & Device]
85
IDE PIO Pre-Fetch Enable
85
IDE Master, IDE Slave
86
Auto-Detected Drive Parameters
86
Type [Auto]
87
Lba/Large Mode [Auto]
88
Block (Multi Sector Transfer) [Auto]
88
PIO Mode [Auto]
88
DMA Mode [Auto]
89
Auto]
90
32Bit Data Transfer [Enabled]
91
Floppy Configuration
91
Super IO Configuration
92
Floppy Drive Swap [Disabled]
93
On Board Floppy Controller [Enabled]
93
Menu 7: Super IO Configuration
93
Serial Port1 Address [3F8/IRQ4]
94
Serial Port2 Address [2F8/IRQ3]
94
Serial Port2 Mode [Normal]
95
Parallel Port Address [Disabled]
95
Parallel Port Mode [Normal]
95
Hardware Health Configuration
96
Parallel Port IRQ [IRQ7]
96
H/W Health Function [Enabled]
97
Menu 8: Hardware Health Configuration
97
ACPI Configuration
98
ACPI Aware O/S [Yes]
99
General ACPI Configuration
99
Advanced ACPI Configuration
100
Repost Video on S3 Resume [No]
100
Suspend Mode [S1(POS)]
100
ACPI 2.0 Features
101
ACPI APIC Support [Enabled]
101
Menu 11: General ACPI Configuration
101
AMI OEMB Table [Enabled]
102
Headless Mode [Disabled]
102
MPS Configuration
103
Smbios
103
MPS Revision [1.1]
103
Remote Access Configuration
104
Smbios Smi Support [Enabled]
104
Remote Access [Disabled]
105
Serial Port Number
105
Serial Port Mode
105
Flow Control
105
Menu 14: Remote Access Configuration
105
Redirection after BIOS POST
106
Serial Port Mode [115200 8,N,1]
106
Serial Port Number [COM1]
106
Terminal Type
106
VT-UTF8 Combo Key Support
106
Flow Control [None]
107
Redirection after BIOS POST [Always]
107
Terminal Type [ANSI]
107
USB Configuration
107
VT-UTF8 Combo Key Support [Disabled]
107
Onboard Sis USB1.1 DEVICE [Enabled]
108
Onboard Sis USB2.0 DEVICE [Enabled]
108
Menu 15: USB Configuration
108
USB Configuration
109
USB Devices Enabled
109
Legacy USB Support [Disabled]
109
USB2.0 Controller Mode [Hispeed]
109
Pci/Pnp
110
Menu 16: Pci/Pnp Configuration [Part 1]
111
Clear NVRAM [No]
112
Plug & Play O/S [No]
112
Menu 17: Pci/Pnp Configuration [Part 2]
112
PCI Latency Timer [64]
113
Allocate IRQ to PCI VGA [Yes]
113
Palette Snooping [Disabled]
113
Offboard PCI/ISA IDE Card [Auto]
114
PCI IDE Busmaster [Disabled]
114
IRQ# [Available]
115
Boot
116
DMA Channel# [Available]
116
Reserved Memory Size [Disabled]
116
Boot Settings Configuration
117
Quick Boot [Enabled]
118
Quiet Boot [Disabled]
118
Menu 19: Boot Settings Configuration
118
Addon ROM Display Mode [Force BIOS]
119
Bootup Num-Lock [On]
119
PS/2 Mouse Support [Enabled]
119
Wait for 'F1' if Error [Enabled]
120
Hit 'DEL' Message Display [Enabled]
120
Interrupt 19 Capture [Disabled]
120
Boot Device Priority
121
Hard Disk Drives
122
Removable Drives
122
CD/DVD Drives
124
Security
124
Boot Sector Virus Protection [Disabled]
125
Change Supervisor Password
125
Change User Password
125
Chipset
126
Northbridge SIS661FX Configuration
127
Primary Graphics Adapter [PCI]
128
DRAM CAS# Latency [By SPD]
129
Graphic Win Size [64MB]
129
Share Memory Size [32MB]
130
Southbridge Sis964 Configuration
130
Power Key
131
Onboard AC97 Audio DEVICE [Enabled]
131
MAC Address [780000007800]
131
Onboard Lan ROM [Enabled]
131
Onboard Sis 1394 Device [Disabled]
131
Power Management/Apm [Enabled]
132
Suspend Power Saving Type [S1]
132
Suspend Time out [Disabled]
133
Power Button Mode [On/Off]
133
Video Power down Mode [Disabled]
134
Hard Disk Time out [Disabled]
134
Keyboard HOT KEY SMI [Disabled]
134
Keyboard Resume Function [Disabled]
135
Restore on AC Power Loss [Last State]
135
PME Resume [Disabled]
136
PS2 MOUSE Resume Function [Disabled]
136
RI Resume [Disabled]
136
USB Controller Resume [Disabled]
136
Exit
137
Resume on RTC Alarm [Disabled]
137
RTC Alarm Date (Days)
137
System Time
137
Save Changes and Exit
138
Discard Changes and Exit
138
Discard Changes
138
Load Failsafe Defaults
139
Load Optimal Defaults
139
6 Software Drivers
140
Available Software Drivers
141
Agp Driver Installation
141
Figure 6-1: Startinginstallshield Wizard Screen
142
Figure 6-2: Preparing Setup Screen
142
Figure 6-3: Install Shield Screen
143
Figure 6-4: Installing Screen
144
Realtek Audio Driver Installation
145
Figure 6-5: Restart the Computer
145
Figure 6-6: Audio Driver Install Shield Wizard Starting
146
Figure 6-7: Audio Driver Setup Prerparation
146
Figure 6-8: Audio Driver Welcome Screen
147
Figure 6-9: Audio Driver Software Configuration
147
Figure 6-10: Audio Driver Digital Signal
148
Figure 6-11: Audio Driver Installation Begins
149
Sis VGA Utilities Driver
150
Figure 6-12: Audio Driver Installation Complete
150
Figure 6-13: VGA Utilities Welcome Screen
151
Figure 6-13: Select Setup Installation Type
152
Figure 6-13: Select Folders to Copy Files
153
Figure 6-13: Review Settings
153
Figure 6-13: Read Readme File
154
Sis IDE Driver Installation
155
Figure 6-13: Restart the Computer
155
Figure 6-13: Select a Language
156
Figure 6-14: Welcome Screen
156
Figure 6-15: Chipset Driver Readme File Information
157
Lan Driver Installation
158
Figure 6-16: Chipset Driver Installation Complete
158
Figure 6-17: LAN Driver Welcome Screen
159
Figure 6-18: LAN Driver Installation Complete
160
Abios Configuration Options
162
Bios Configuration Options
162
A.1 BIOS Configuration Options
163
Default Chapter
163
A.1 Bios C Onfiguration O Ptions
163
Bwatchdog Timer
168
Caddress Mapping
172
Io Address Map
173
St Mb Memory Address Map
173
C.1 IO Addres Map
173
Irq Mapping Table
174
Dma Channel Assignments
174
Dexternal Ac'97 Audio Codec
176
Introduction
177
Driver Installation
177
Sound Effect Configuration
178
Sound Effect
179
Environment Simulation
180
Karaoke Mode
181
Equalizer Selection
182
Speaker Configuration
183
Speaker Test
184
S/PDIF-In & S/PDIF-Out
185
Connector Sensing
185
Hrtf Demo
188
Microphone Effect
188
General
189
Eraid Setup
190
Introduction
191
RAID Support
191
What Is RAID
191
Raid Setup
191
E.1 I NTRODUCTION E.1.1 RAID Support
191
Copy the RAID Driver
192
Configure the RAID BIOS
194
Configure the SATA Controller in BIOS
194
Install SATA Drives
194
E.2.6 Install the os
199
Install the os
199
Findex
201
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the IEI Technology ROCKY-6614 and is the answer not in the manual?
Ask a question
IEI Technology ROCKY-6614 Specifications
General
Brand
IEI Technology
Model
ROCKY-6614
Category
Motherboard
Language
English
Related product manuals
IEI Technology IMB-9454G-R20
172 pages
IEI Technology PCISA-6770-RS
8 pages
IEI Technology WAFER-LX-800-R12
227 pages
IEI Technology PCIE-Q57A
159 pages
IEI Technology KINO-9454
209 pages
IEI Technology WSB-9454
234 pages
IEI Technology IMBA-8650
248 pages
IEI Technology KINO-6612
11 pages
IEI Technology WSB-H810
165 pages
IEI Technology WSB-9150
3 pages
IEI Technology KINO-9452
199 pages
Need help?
General
To Next Page
