IEI Technology ROCKY-6614 User Manual

1-43
ROCKY-6614 CPU Card
43
3.2.7 Backplane to Mainboard ATX Connector
CN Label: ATXCTL1
CN Type: 1x3 pin header
CN Location: See Figure 3-8
CN Pinouts: See Table 3-10
Connects a power source from a backplane with an ATX Connector.
PIN NO. DESCRIPTION
1 GND
2 PSON#
3 5VSB
Table 3-10: CN7 Connector Pin Outs

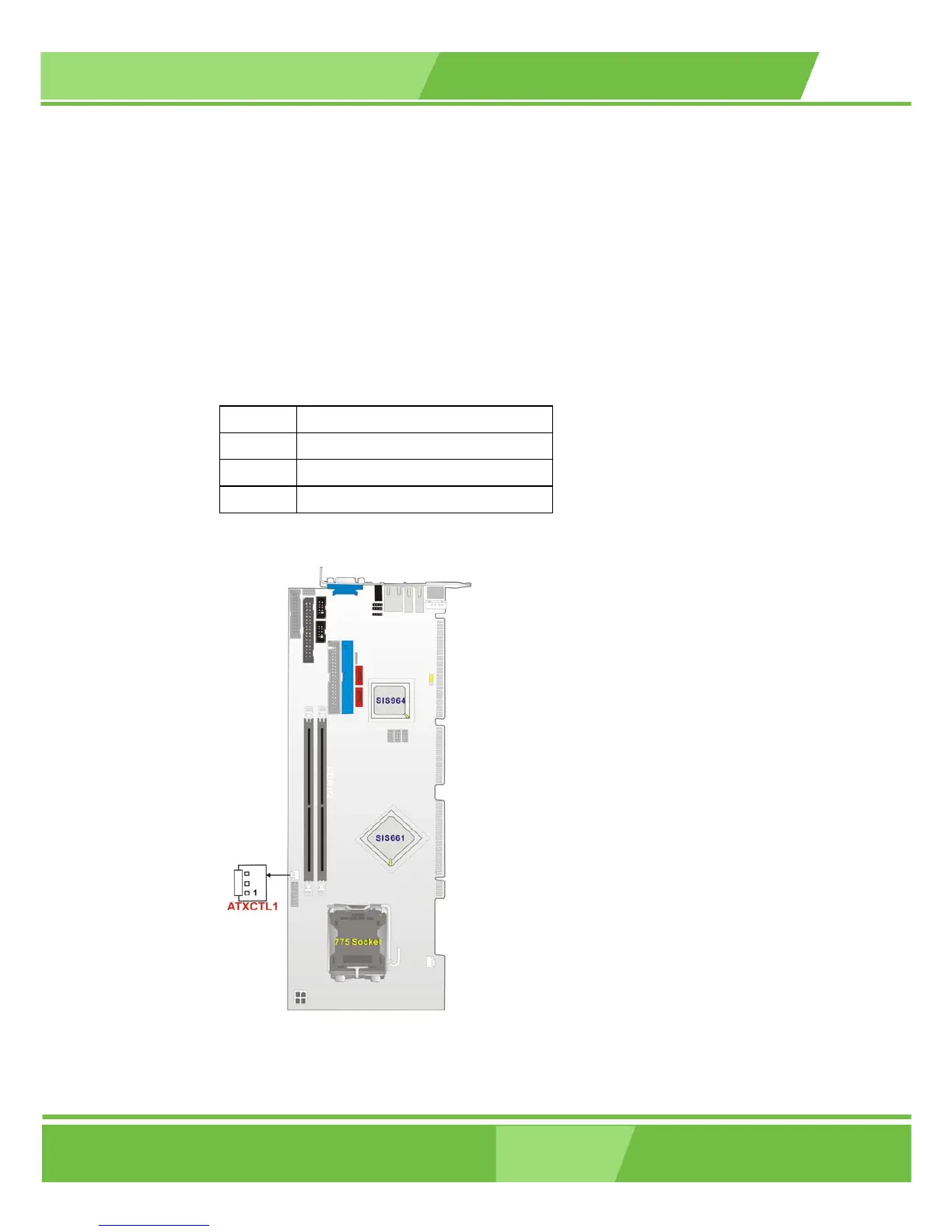

Figure 3-8: ATXCTL1 Connector Locations
