3.2.11 Keyboard Connector
CN Label: KB1
CN Type: 1x5 pin header
CN Location: See Figure 3-12
CN Pinouts: See Table 3-14
For alternative application, a keyboard pin header connector is also available on board.
PIN NO. DESCRIPTION
1 KEYBOARD CLOCK
2 KEYBOARD DATA
3 N/C
4 GND
5 VCC
Table 3-14: KB1 Connector Pinouts

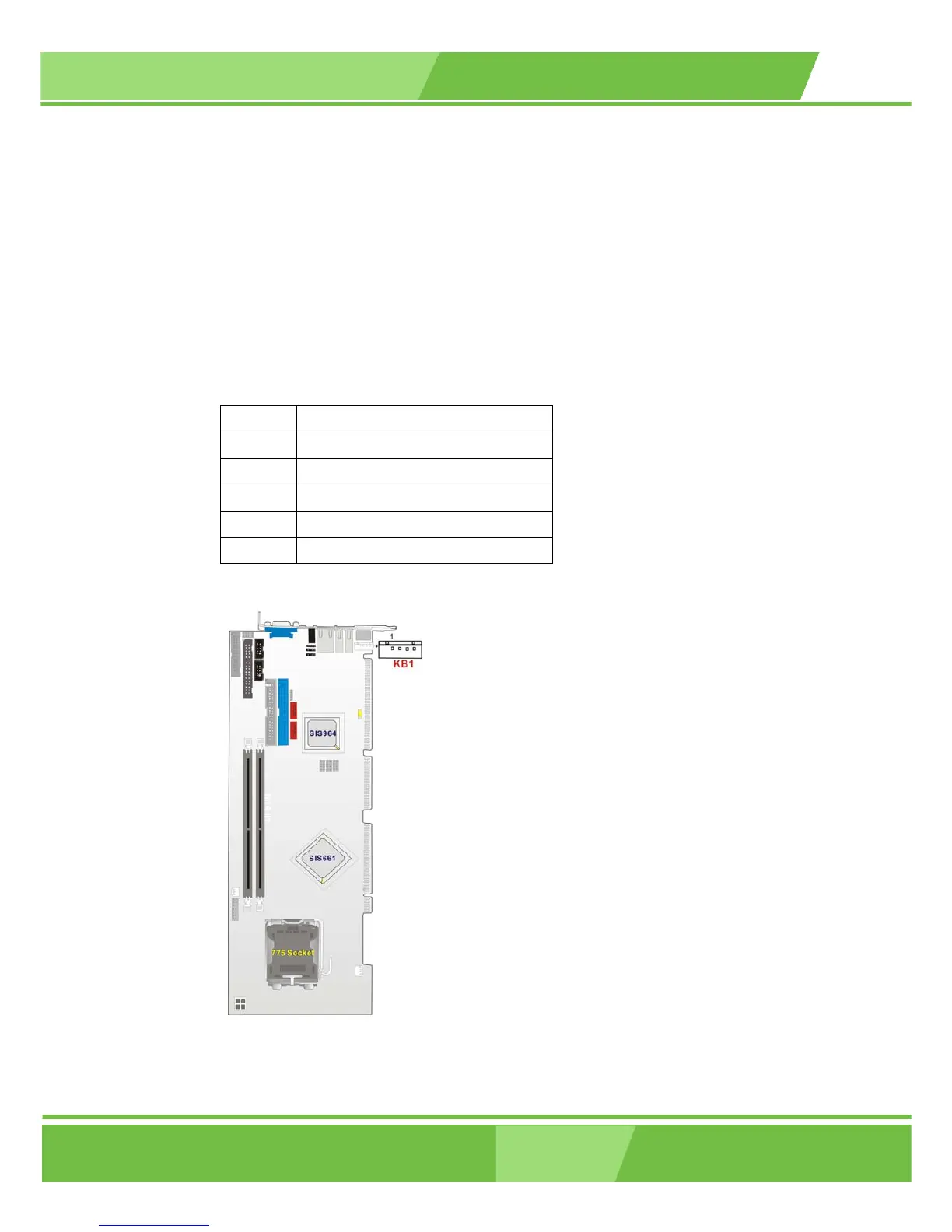

Figure 3-12: KB1 Connector Location
