1-54
CKY-6614 WSB- Card
54
IEI
®
Technology, Corp.

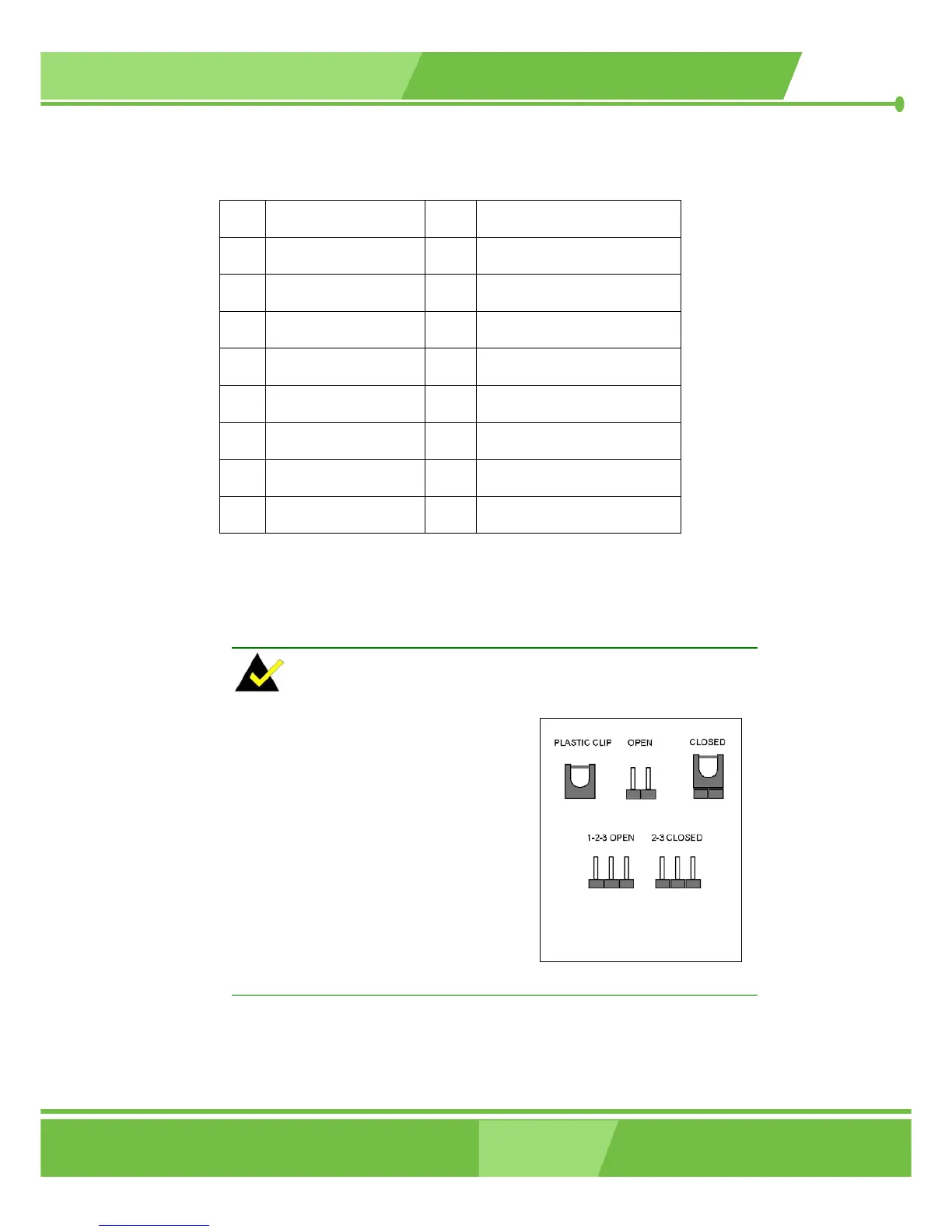

The standard 15-pin VGA connector connects to a CRT or LCD display monitor.
PIN DESCRIPTION PIN DESCRIPTION
1 Red 9 No Connect
2 Green 10 Ground
3 Blue 11 No Connect
4 No Connect 12 DDC DAT
5 Ground 13 Horizontal Synchronization
6 Ground 14 Vertical Synchronization
7 Ground 15 DDC Clock
8 Ground
Table 3-20: VGA Connector Pinouts
3.4 Onboard Jumpers
NOTE:
A jumper is a metal bridge that is used to
close an electrical circuit. It consists of
two metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them.
To CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper
means removing the plastic clip from a
jumper.
The ROCKY-6614 CPU Board one onboard jumper, “
Clear CMOS
.”
Figure 1
-3-17
Jumper
