ROCKY-6614 CPU Card
41
3.2.5 Internal USB Connectors
CN Label: USB23, USB45, USB67
CN Type: 2x4 pin header
CN Location: See Figure 3-6
CN Pinouts: See Table 3-8
Three 2x4 pin connectors provide connectivity to six USB 2.0 ports. Two additional USB
ports are found on the rear panel. The USB ports are used for I/O bus expansion.
PIN DESCRIPTION PIN DESCRIPTION
1 USB Power 2 GND
3 USBPX- 4 USBPX-
5 USBPX+ 6 USBPX+
7 GND 8 USB Power
Table 3-8: USB Port Connector Pinouts

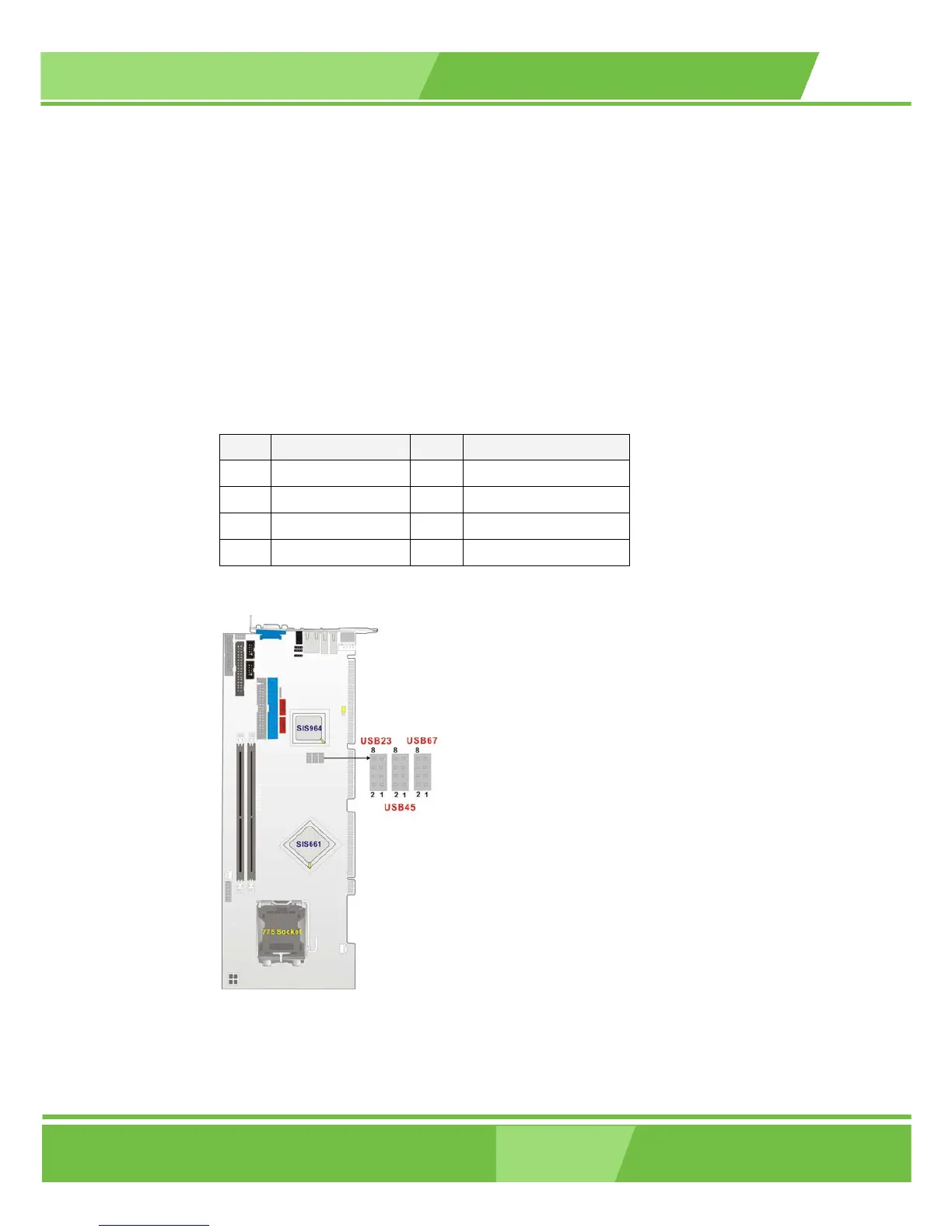

Figure 3-6: USB Port Connector Location
