3 GND 4 +5V
5 Clock 6 N/C

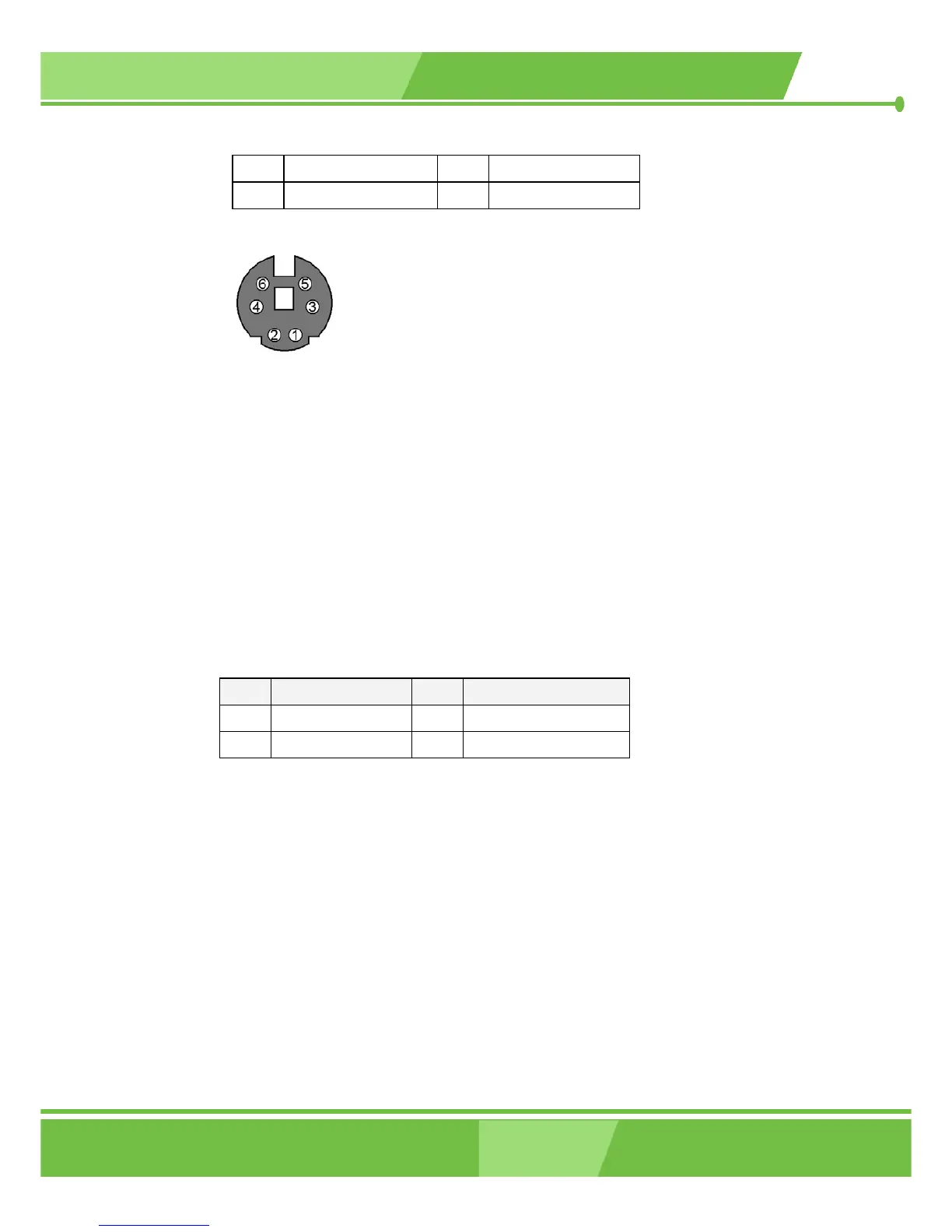

Table 3-16: PS/2 Pinouts
Figure 3-15: PS/2 Pinout locations
3.3.2 USB Connectors
CN Label: USB_C0, USB_C1
CN Type: USB port
CN Location: See Figure 3-14 (labeled number 2 and 3)
CN Pinouts: See Table 3-17
USB devices can be connected directly to the USB connectors on the rear panel.
PIN DESCRIPTION PIN DESCRIPTION
1
+5V 2 DATA-
3
DATA+ 4 GND
Table 3-17: USB Connectors
3.3.3 Ethernet Connectors
CN Label: LAN1
CN Type: RJ-45
CN Location: See Figure 3-14 (labeled number 4)
CN Pinouts: See Table 3-18

IEI Technology ROCKY-6614 Specifications

General

Brand	IEI Technology
Model	ROCKY-6614
Category	Motherboard
Language	English
