41
2
INSTALLATION PROCEDURE
302.061
ERROR CAUSE SOLUTION
At the beginning of the first feeding
stroke, the short feed gate is not
closed.
The gate could not close because of
an obstacle.
Check that the area is free from
obstruction (swarf, bar remnants,
chips). Close the gate manually
checking for obstructions.
Gate closed sensor fault.
Check that when the gate moves,
the sensor is triggered.
ERROR CAUSE SOLUTION

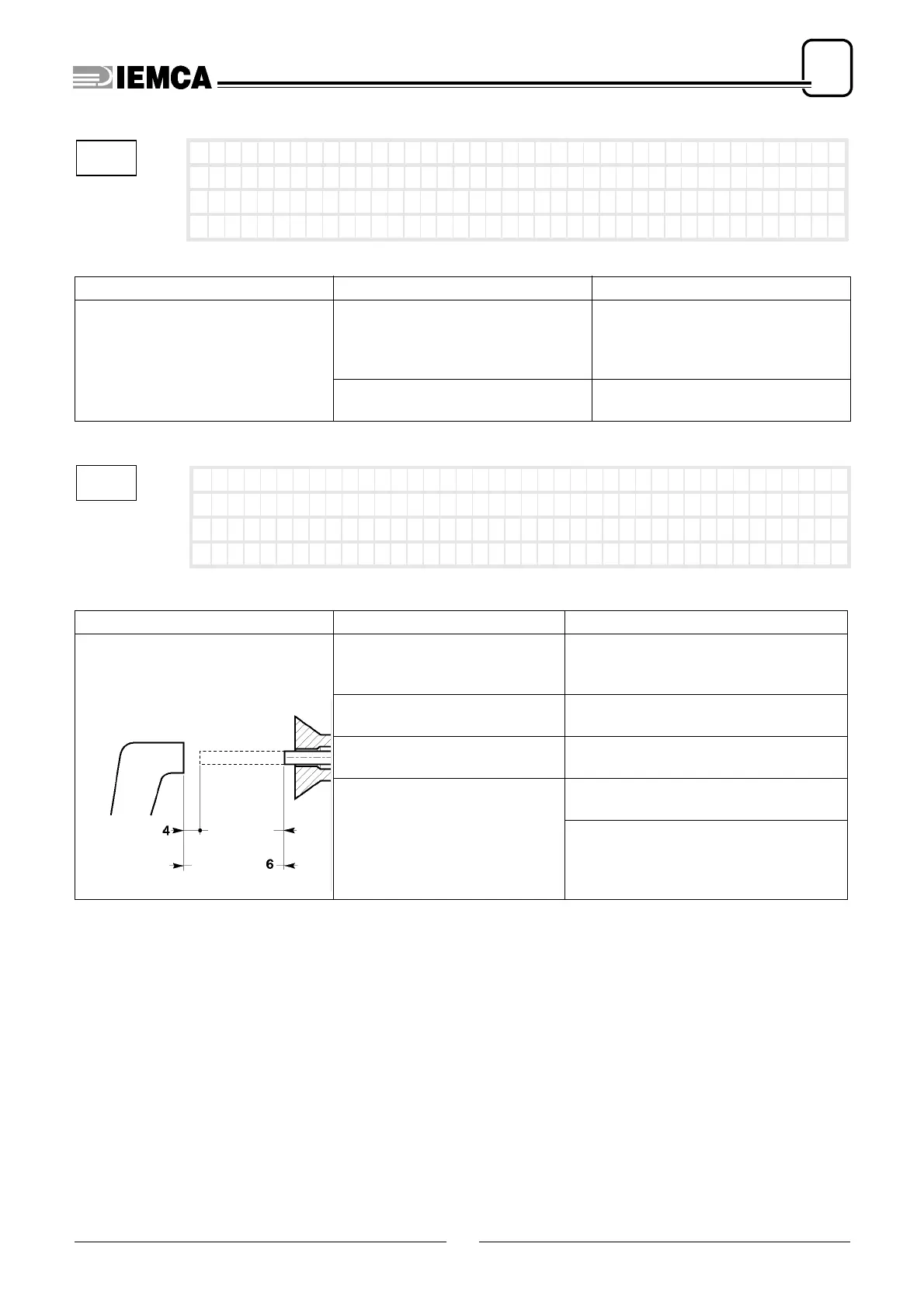

After “collet closed” the bar is at a
position lower than that given by
parameter 6 minus parameter 4
.
The value of
parameter 4
is too
low.
Check the value of
parameter 4
based
on the length of the workpiece to be
machined.
The collet lathe does not open
correctly.
Check the correct opening of the collet
lathe (at least 0.5 mm).
The push on the bar is not suffi-
cient.
Check the values of
parameter 4
, and
parameter 6
.
Encoder fault.
Check that the encoder is driven cor-
rectly in the rotation.
Check on the display the position of the
bar pusher carriage, and verify that the
position change indicated corresponds
to the actual movement.
9
Error : ga t e open
10
Er ror : shor t f e ed
parameter
IDM - 61.022 Ec.0
parameter
error 10
