INSTALLATION PROCEDURE
302.061

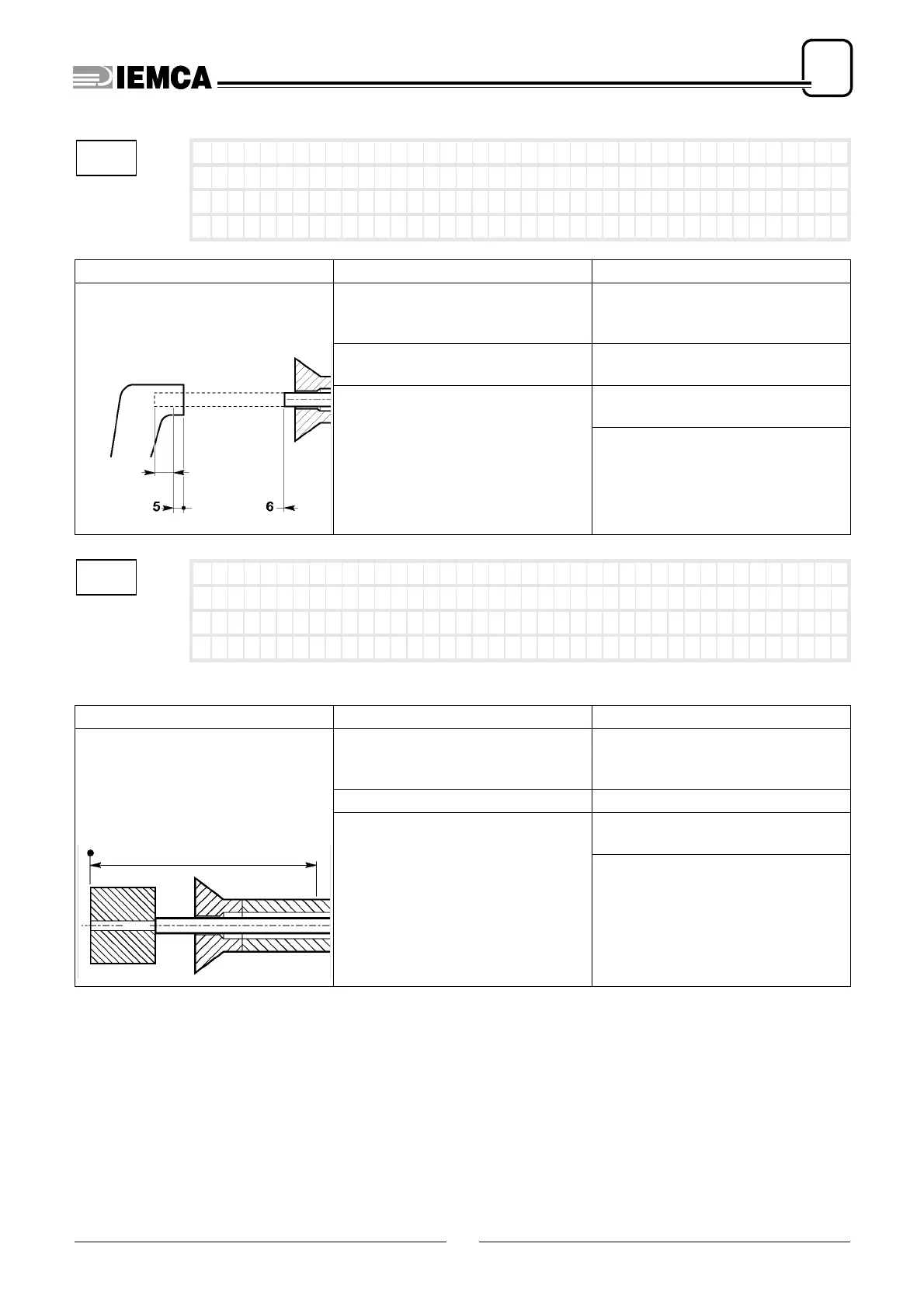

ERROR CAUSE SOLUTION
During feed, the bar is at a position
past that given by
parameter 5 plus parameter 6
.
The value of
parameter 5
is too
high.
Check the value of
parameter 5
based on the length of the piece to
be machined.
The lathe bar stop is not in the cor-
rect position.
Check the correct position of the bar
stop on the lathe.
Encoder fault.
Check that the encoder is driven
correctly in the rotation .
Check on the display the position of
the bar pusher carriage, and verify
that the position change indicated
corresponds to the actual move-
ment.
ERROR CAUSE SOLUTION
The bar moves along the section
defined at
parameter 11
, clears the
first obstacle (the collet), but stops
when it meets a second obstacle
(bushing or other).
The bar has met with an obstacle
past the impulse window (10 mm)..
Check the play of the bushing and
the presence of foreign bodies (bar
scraps or tool chips).
The push on the bar is not sufficient. Check the value of
parameter 13
.
Encoder fault.
Check that the encoder is driven
correctly in the rotation .
Check on the display the position of
the bar pusher carriage, and verify
that the position change indicated
corresponds to the actual move-
ment.
11
Er ror : l ong f e ed
IDM - 61.023 Ec.0
parameter parameter
error 11
12
Error: s tat ionary pos
ition after impulses
C
parameter 11
IDM - 61.020 Ec.0
