IEMCA VIP 80 - Page 68

6
1
GENERAL INFORMATION
302.061
❑

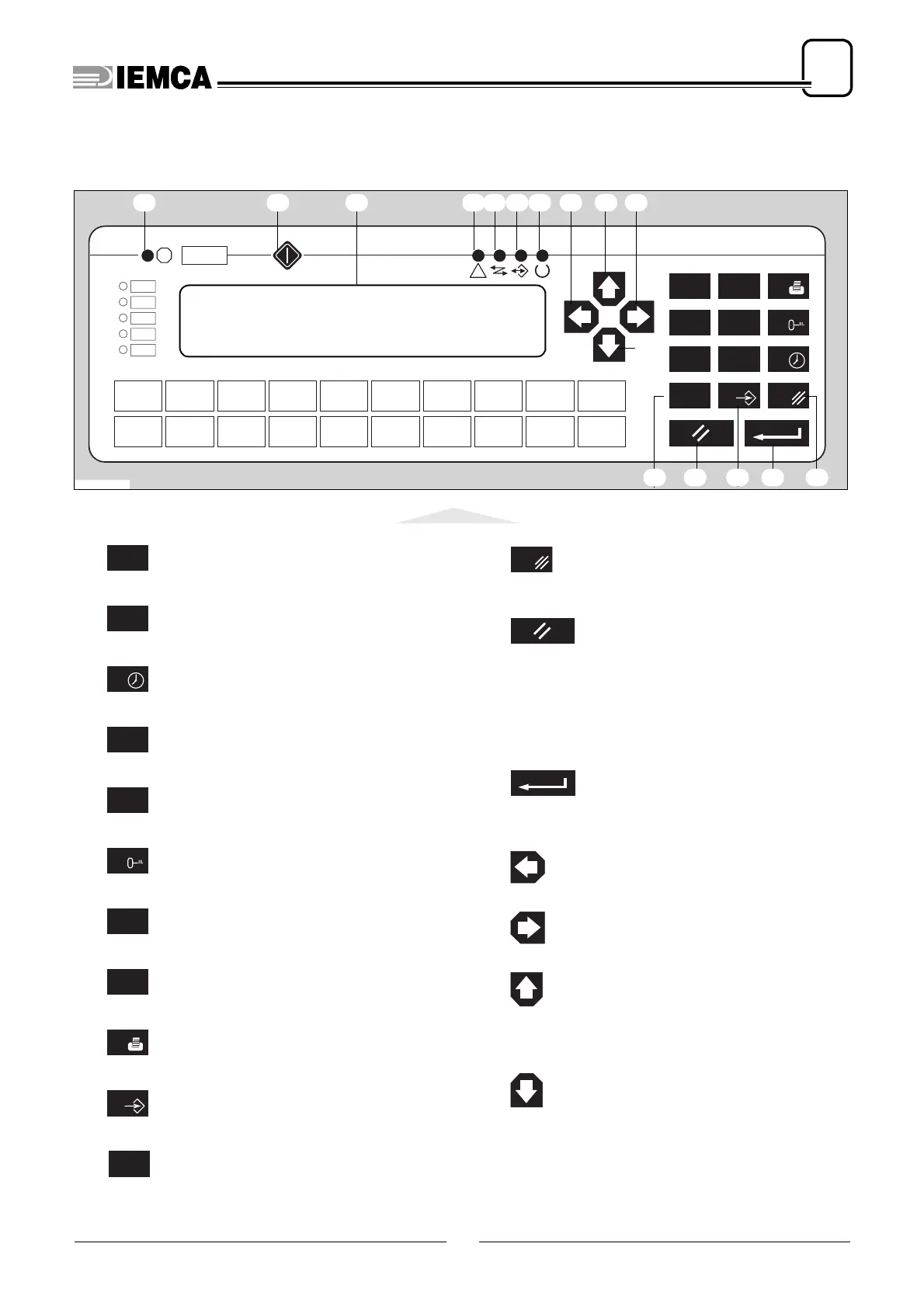

Display controls and LEDs
1- Key
for numerical value 1.
2- Key
for numerical value 2.
3- Key
for numerical value 3 and to access
the date and hour programming mode
.
4- Key
for numerical value 4.
5- Key
for numerical value 5.
6- Key
for numerical value 6 and to access
protected parameter entering mode.
7- Key
for numerical value 7.
8- Key
for numerical value 8.
9- Key
for numerical value 9.
10 - Key
for numerical value 0 or to recall selec-
tion cursor.
11 - Key
for “greater” or “less” sign or for di-
splaying “Push-button panel Software”
and “PLC/CN Software” identification data.
12 - Key
for “comma” sign.
13 - Key
for “CLEAR” function:
• to stop selection function,
• to return to the value which had been
displayed before the non-confirmed
modification,
• to return to the page shown after set-
ting date and time.
14 - Key
for “ENTER” function to confirm en-
tered data.
15 - Key
to recall the previous parameter or to
move the selection cursor left.
16 - Key
to recall the next parameter or to move
the selection cursor right.
17 - Key
to scroll page upwards or to move se-
lection cursor upwards or to increase by
one the value in the date and hour pro-
gramming mode.
18 - Key
to scroll page downwards or to move
selection cursor downwards or to decrease
by one the value in the date and hour pro-
gramming mode.
1
2
3
4
5
6
7
8
9
0
+/-
F( )
•
123
456
789
+/- 0
•
F( )
!
?
141011
20192423 21 22 15 17 16
18
1213
25
IDM - 36.004 Ec. 0
