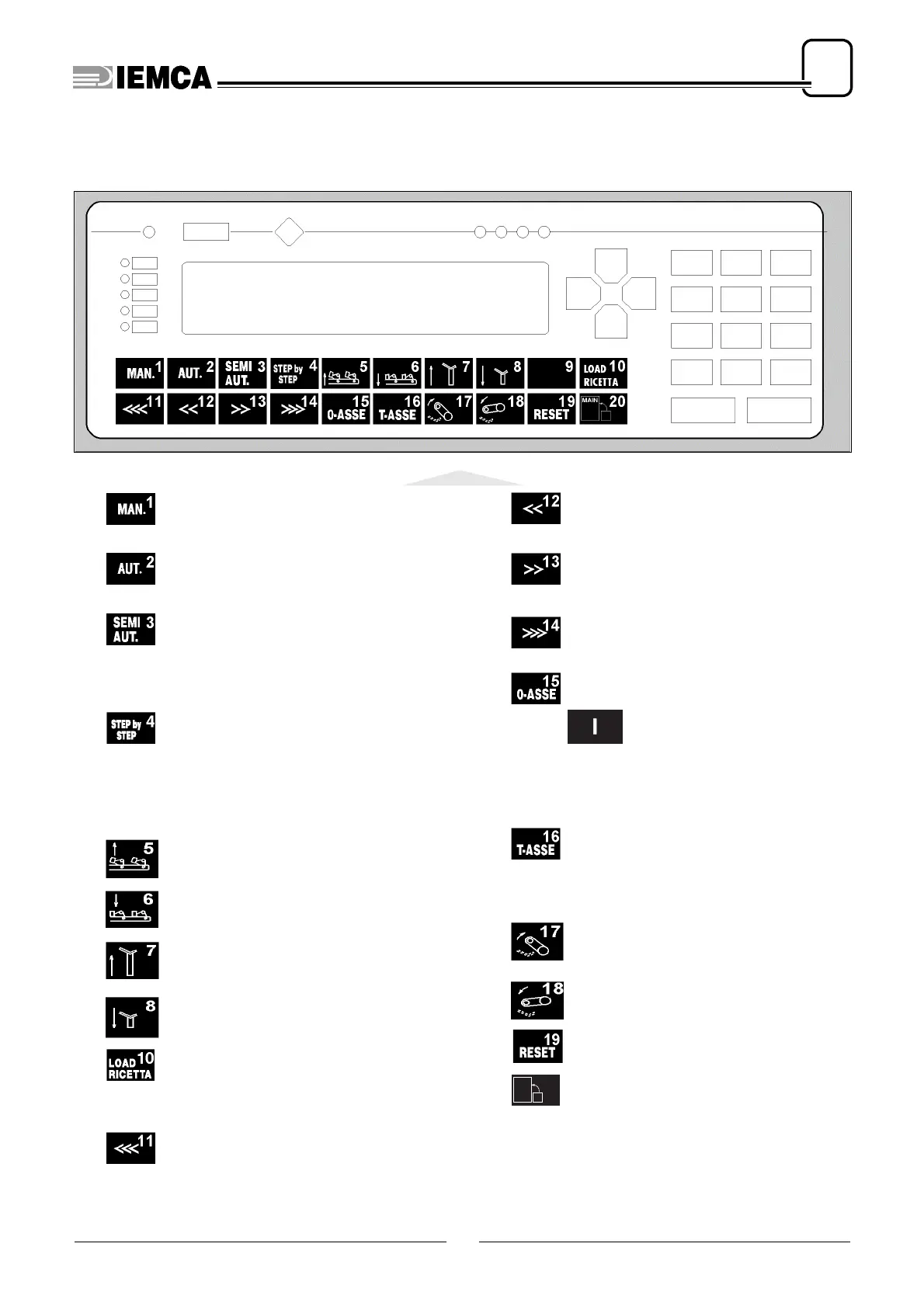

Programming and manual functions controls
1- Key
to select bar feeder manual opera-
tion.
2- Key
to select bar feeder automatic opera-
tion.
3- Key
for selecting semiautomatic functio-
ning of the bar feeder. Pressing it selects
the function, pressing it again cuts off the
selection.
4- Key
to control a step-by-step operating
cycle. If pressed, the bar feeder performs
the first step, if pressed again the bar
feeder performs the second step, and so
on.
5- Key
to lift the bar lifting device.
6- Key
to lower the bar lifting device.
7- Key
to lifting guide channel.
8- Key
to lowering guide channel.
10- Key
for inserting default values in the
parameters according to a special proce-
dure.
11 - Key
for manual forward movement of bar
pusher at high speed.
12 - Key
for manual forward movement of bar
pusher at low speed.
13- Key
for manual backward movement of
bar pusher at low speed.
14- Key
for manual backward movement of
bar pusher at high speed.
15- Key
for “BAR FEEDER ZERO SET-
TING”. It must be pressed only after key
has been pressed; once the car-
riage has started moving, they can be
released.
16- Key
to adjust the motor for the bar
pusher motion. Never press it during
daily operation of bar feeder.
17- Key
for bar pusher lifting.
18- Key
for bar pusher lowering.
19- Key
to “RESET”.
20 - Key
to recall “MAIN MENU”.
