IHI 9NX - Lifting Capacities

SPECIFICATIONS

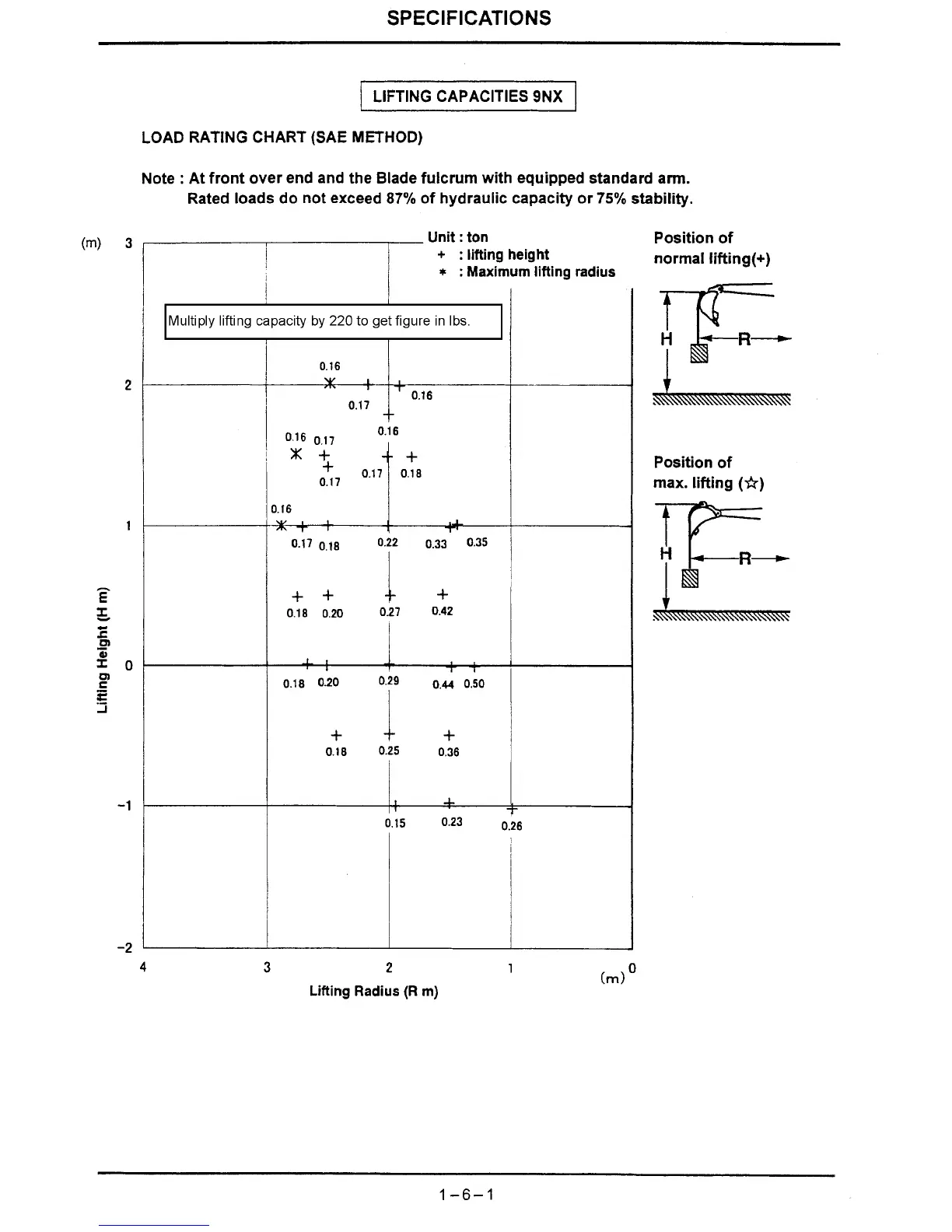

LIFTING CAPACITIES 9NX
LOAD RATING CHART (SAE METHOD)
Note : At front over end and the Blade fulcrum with equipped standard arm.
Rated loads do not exceed
87% of hydraulic capacity or 75% stability.
4 3 2 1 0
(rn)
Lifting Radius (R m)
Unit : ton
Position of
normal lifting(+)
,
j
Position of
max. lifting
(*)
+ : lifting height
* : Maximum lifting radius
