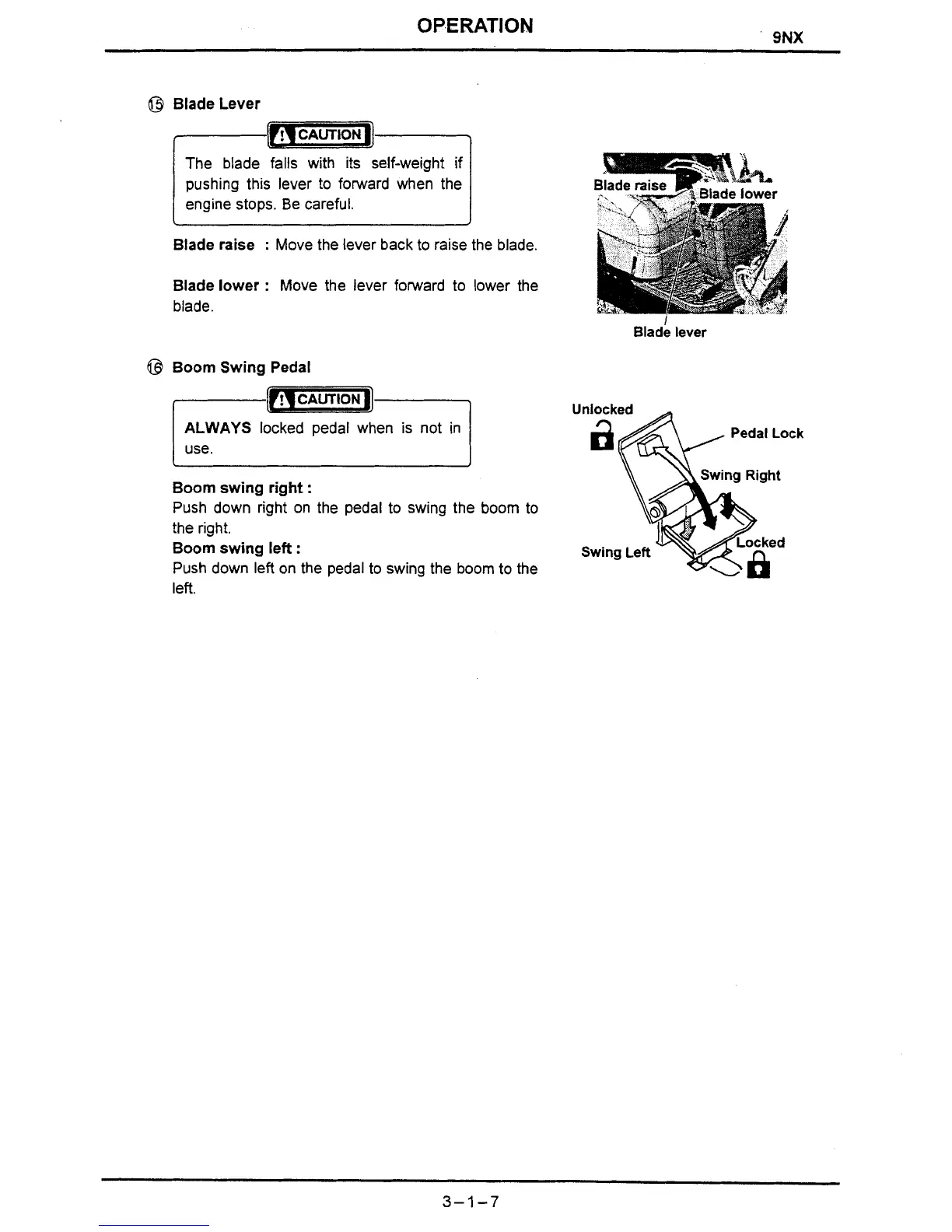

IHI 9NX - Blade Lever Operation; Boom Swing Pedal Operation

OPERATION
9NX
@ Blade Lever
I- my ! CAUTION
engine stops. Be careful.
,+>;.>. Thyd
'.*~ "4~~
Blade raise : Move the lever back to raise the blade.
p+.,$.-"!J
The blade falls with its self-weight if
pushing this lever to forward when the
Blade lower
: Move the lever forward to lower the
blade.
Blade raise
/
Blade lever
@ Boom Swing Pedal
ALWAYS locked pedal when is not in
I use.
Boom swing right
:
Push down right on the pedal to swing the boom to
the right.
Boom swing left
:
Push down left on the pedal to swing the boom to the
left.
