IHI 9NX - Double Action Operation Used: Wrecking Fork and Others; Single Action Operation Used: for Power Port Works

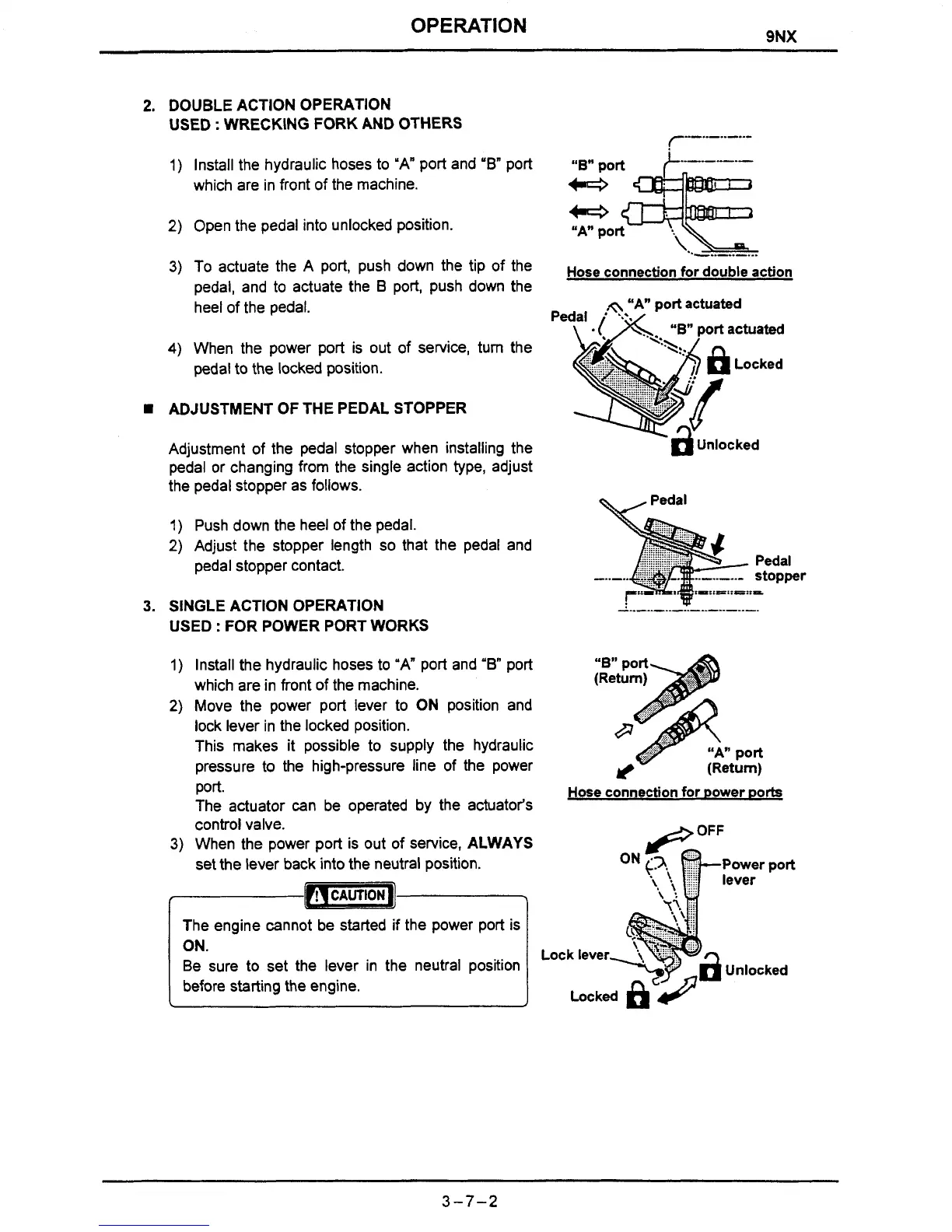

OPERATION
2. DOUBLE ACTION OPERATION
USED
: WRECKING FORK AND OTHERS
1) Install the hydraulic hoses to 'A" port and 'B" port
llBn port
.----.--.-
which are in front of the machine.
Cd
2) Open the pedal into unlocked position.
3) To actuate the
A port, push down the tip of the
Hose connection
action
pedal, and to actuate the B port, push down the
heel of the pedal.
Pe
4) When the power port is out of service, turn the
pedal to the locked position.
ADJUSTMENT OF THE PEDAL STOPPER
Adjustment of the pedal stopper when installing the
pedal or changing from the single action type, adjust
the pedal stopper as follows.
1) Push down the heel of the pedal.
2) Adjust the stopper length so that the pedal and
pedal stopper contact.
iP:IPl:t:i-
3. SINGLE ACTION OPERATION --.--.-.--..-.------.-.
USED : FOR POWER PORT WORKS
1) Install the hydraulic hoses to "A" port and "B" port
which are in front of the machine.
2) Move the power port lever to ON position and
lock lever in the locked position.
This makes it possible to supply the hydraulic
pressure to the high-pressure line of the power
(Return)
port.
Hose connection for Dower ports
The actuator can be operated by the actuator's
control valve.
3) When the power port is out of service,
ALWAYS
set the lever back into the neutral position.
r m-11 -l
The engine cannot be started if the power port is
ON.
Be sure to set the lever in the neutral position
before starting the engine.
\ 2
