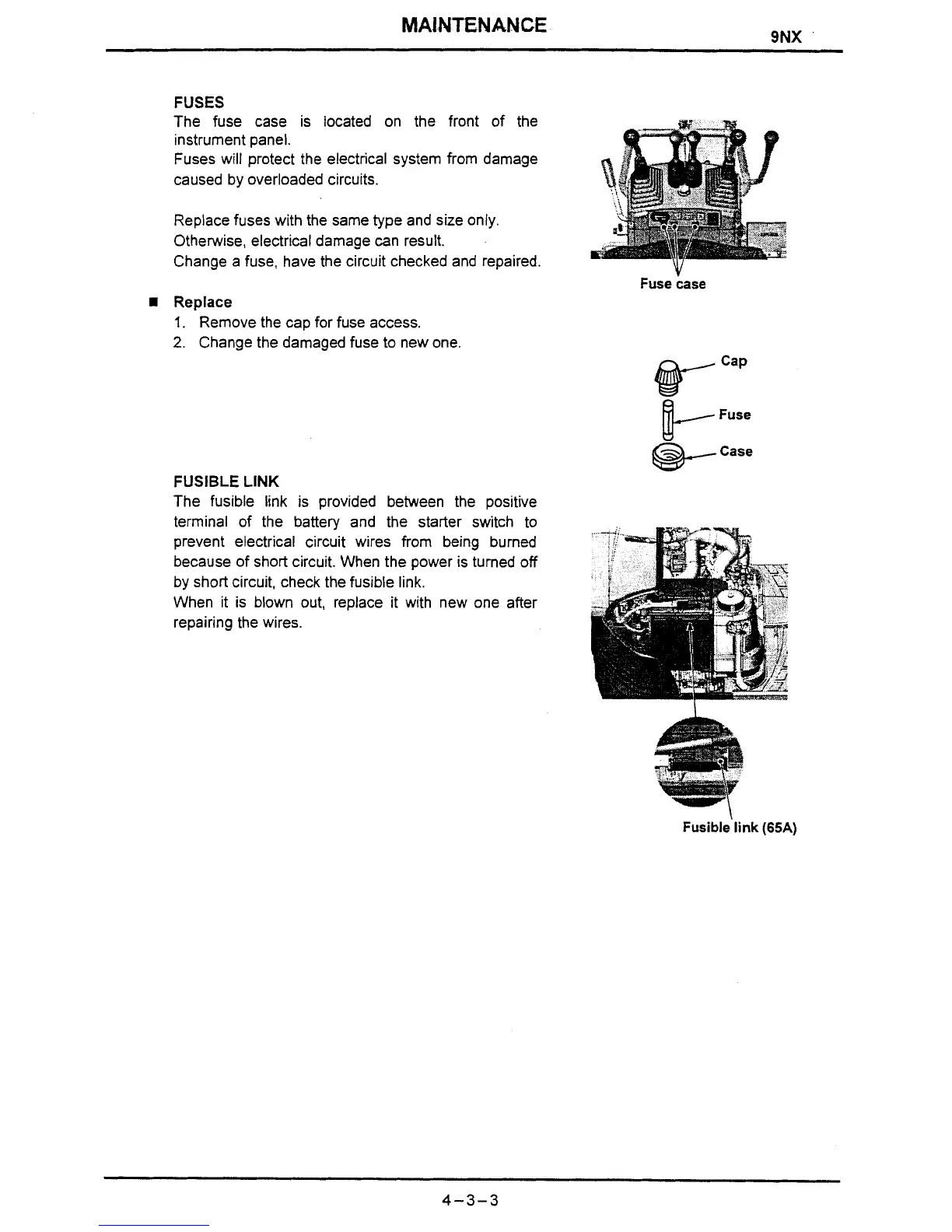

MAINTENANCE
FUSES
The fuse case is located on the front of the
instrument panel.
Fuses will protect the electrical system from damage
caused by overloaded circuits.
Replace fuses with the same type and size only.
Otherwise, electrical damage can result.
Change a fuse, have the circuit checked and repaired.
Replace
1.
Remove the cap for fuse access.
2.
Change the damaged fuse to new one.
Fuse case
-
FUSIBLE LINK
The fusible link is provided between the positive
terminal of the battery and the starter switch to
prevent electrical circuit wires from being burned
because of short circuit. When the power is turned off
by short circuit, check the fusible link.
When it is blown out, replace it with new one after
repairing the wires.
\
Fusible
link
(65A)
