IHI 9NX - Hydraulic Tank Assy

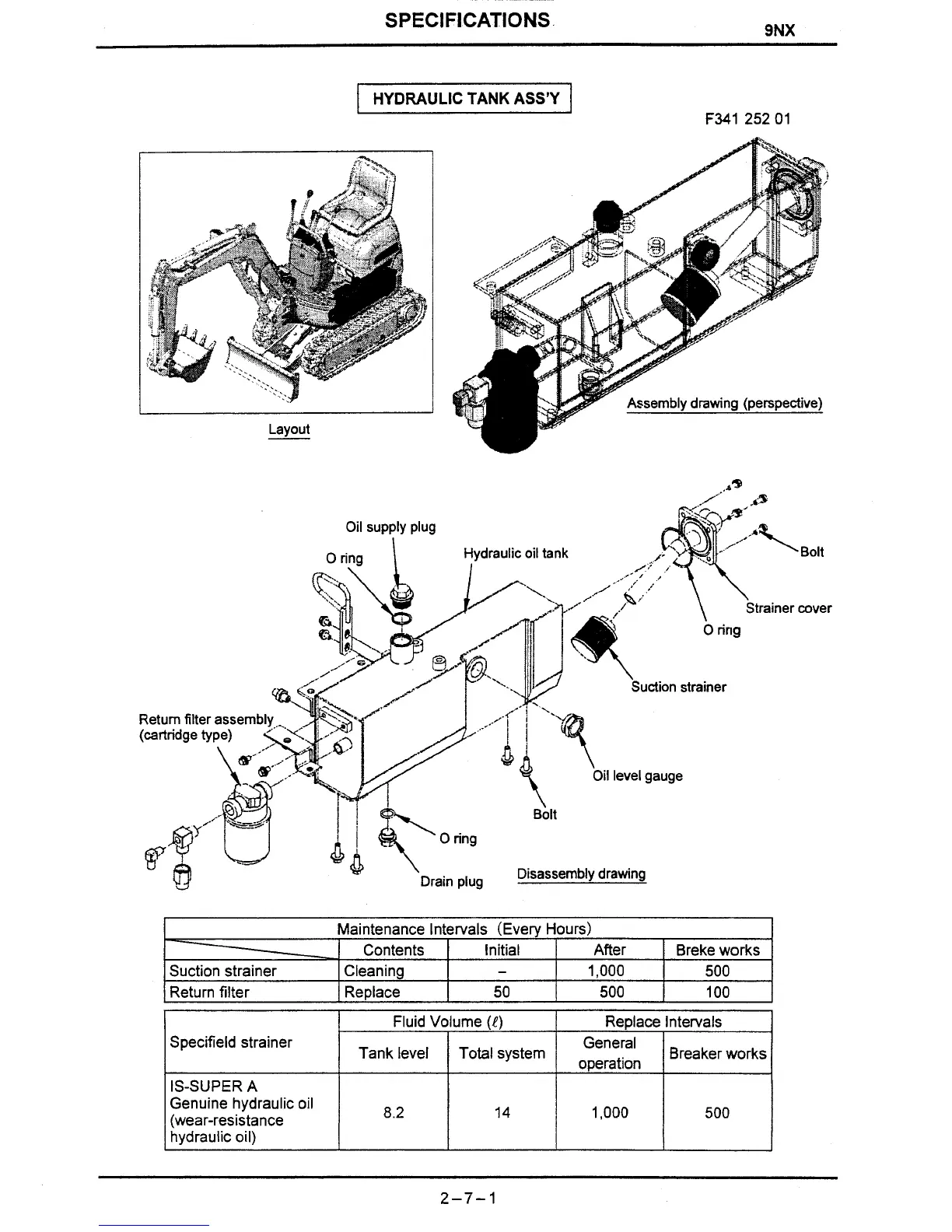

SPECIFICATIONS
HYDRAULIC TANK ASS'Y
Layout
Oil supply plug
Hydraulic oil tank
Return
filter
(cartridge type)
0 ring
Drain plug
Disassembly drawing
\ 'Strainer
o ring
\
Suction strainer
Oil level gauge
Bolt
' cover
Maintenance Intervals (Every Hours)
-- Contents Initial After Breke works
Suction strainer Cleaning
- 1,000 500
P
Return filter Replace 50 500 100
Specifield strainer
IS-SUPER A
Genuine hydraulic oil
(wear-resistance
hydraulic oil)
Fluid Volume
(e)
Tank level
8.2
Replace Intervals
Total system
14
General
operation
1,000
Breaker works
500
