IHI 9NX - Crawler Shoe Adjusting Device

SPECIFICATIONS
9NX

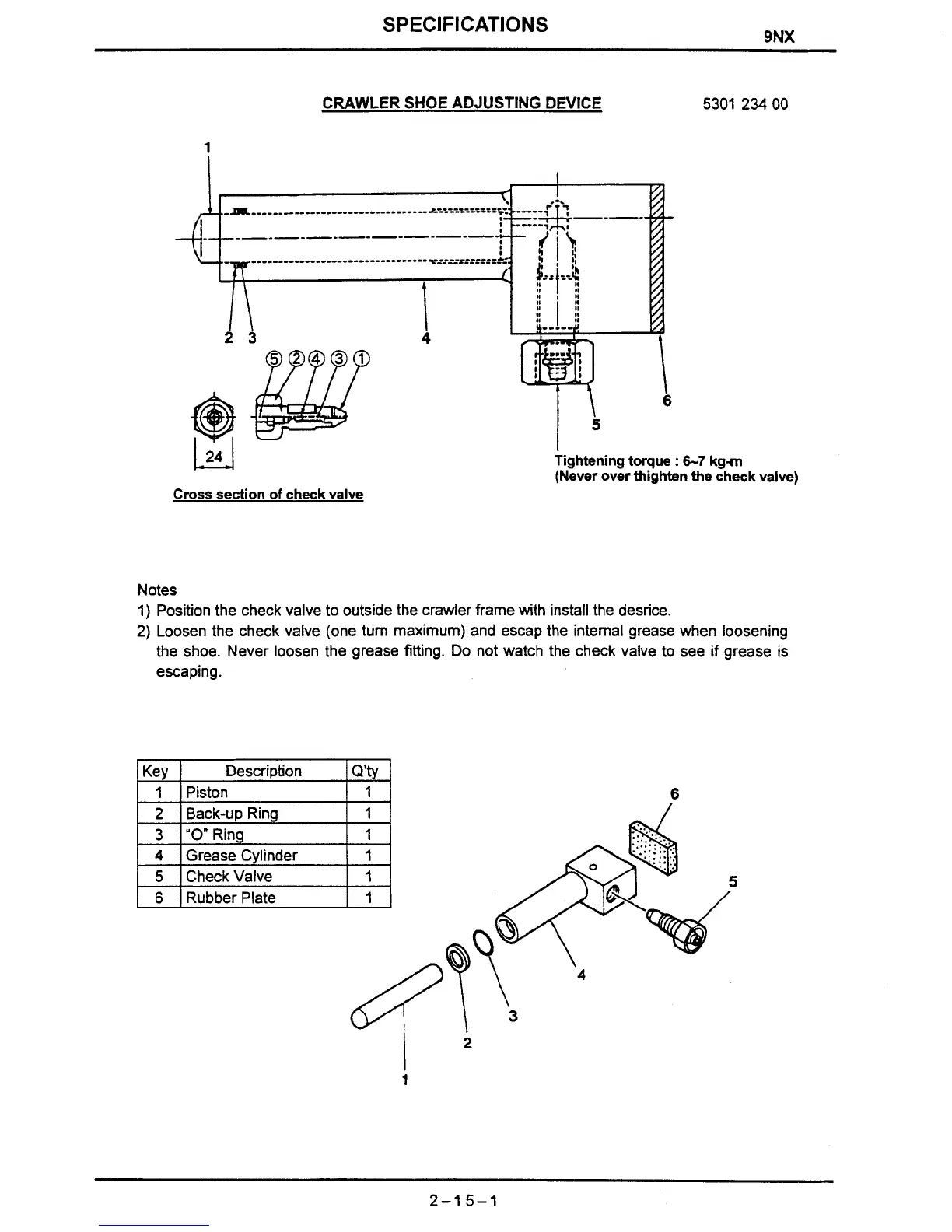

CRAWLER SHOE ADJUSTING DEVICE
5301 234 00
valve)
Notes
1) Position the check valve to outside the crawler frame with install the desrice.
2) Loosen the check valve (one turn maximum) and escap the internal grease when loosening
the shoe. Never loosen the grease fitting. Do not watch the check valve to see if grease is
escaping.
IK~Y 1 Description ( Q'ty
4 Grease Cylinder 1
5
Checkvalve 1
1 6 1 Rubber Plate 111
