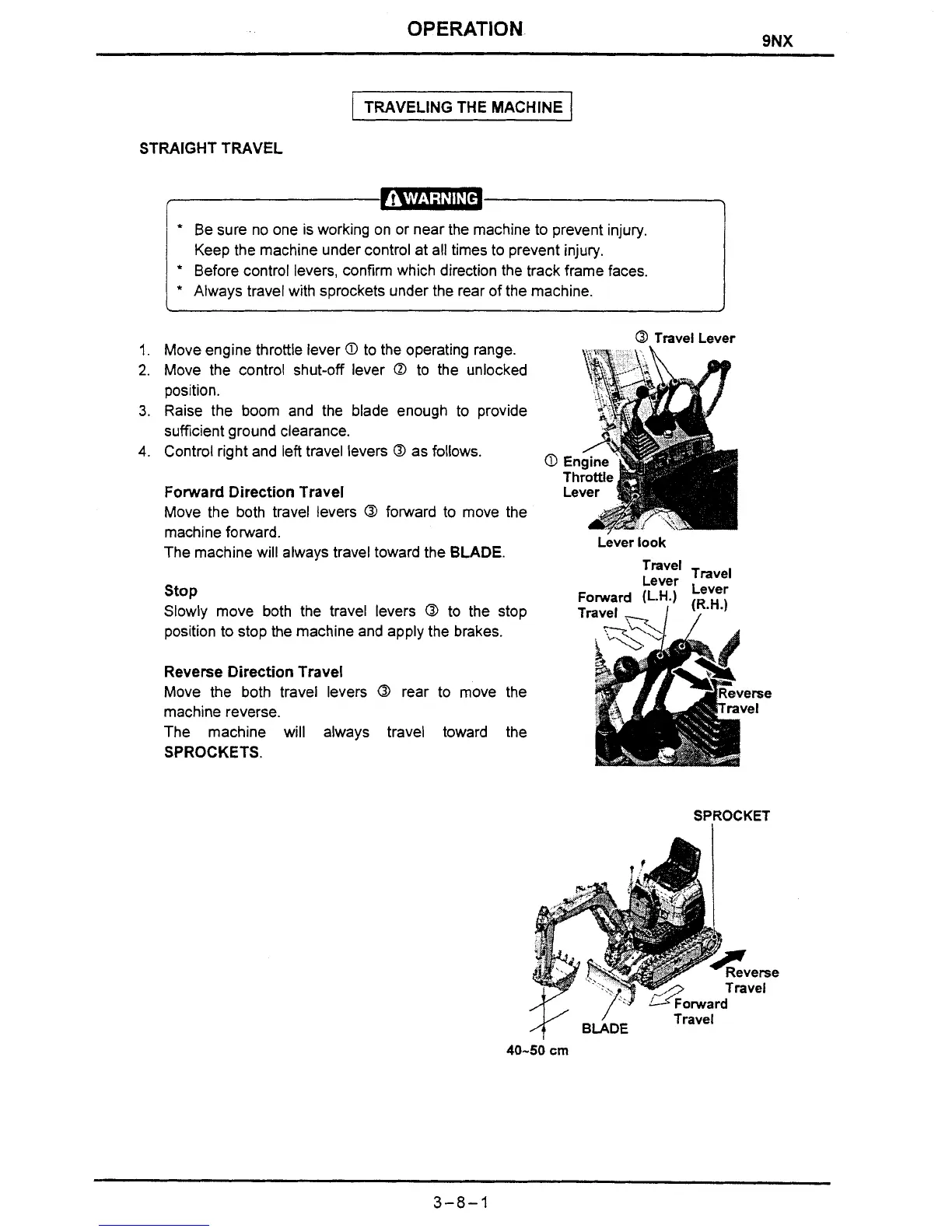

OPERATION
TRAVELING THE MACHINE
STRAIGHT TRAVEL
*
Be sure no one is working on or near the machine to prevent injury.
Keep the machine under control at all times to prevent injury.
*
Before control levers, confirm which direction the track frame faces.
*
Always travel with sprockets under the rear of the machine.
1.
Move engine throttle lever
O
to the operating range.
2.
Move the control shut-off lever
O
to the unlocked
position.
3.
Raise the boom and the blade enough to provide
sufficient ground clearance.
4.
Control right and left travel levers
O
as follows.
Forward Direction Travel
Move the both travel levers
@
forward to move the
machine forward.
The machine will alwavs travel toward the
BLADE.
@
Travel Lever
Lever look
Travel
Stop
Lever
ever
Forward (L.H.1 (R.H.,
Slowly move both the travel levers
O
to the stop
Travel
,-
/
1
position to stop the machine and apply the brakes.
Reverse Direction Travel
Move the both travel levers
@
rear to move
machine reverse.
The machine will always travel toward
SPROCKETS.
the
the
SPROCKET
40-50
crn
Travel
