IHI 9NX - Attachment Assy

STRUCTURE 8 FUNCTION
E
F38E

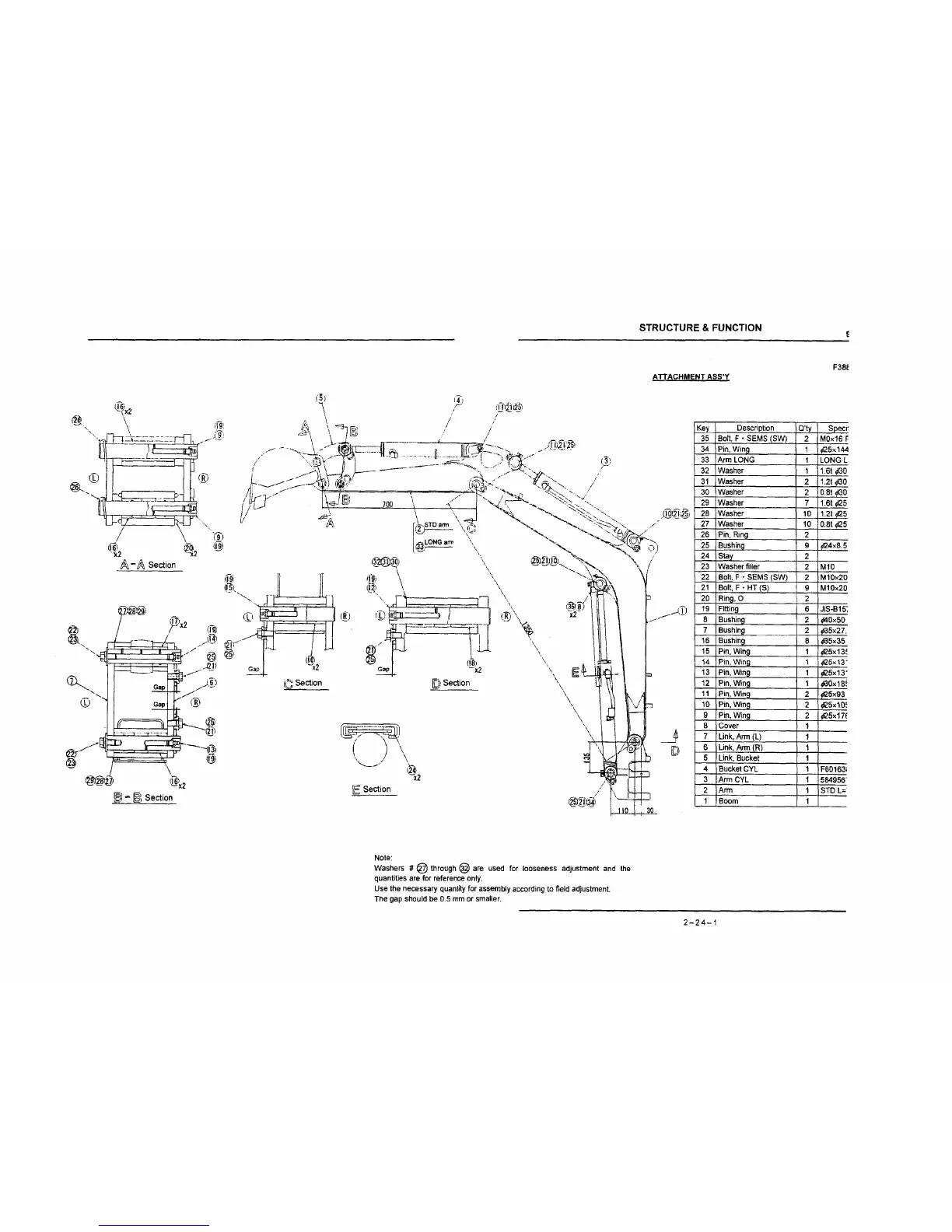

ATTACHMENT ASS'Y
Note:
Washers #@through
@ are used for looseness adjustment and Ihe
quantities are for reference only.
Use the necessary quantity for assembly according to field adjustment.
The gap should be
0.5 mm or smaller.
