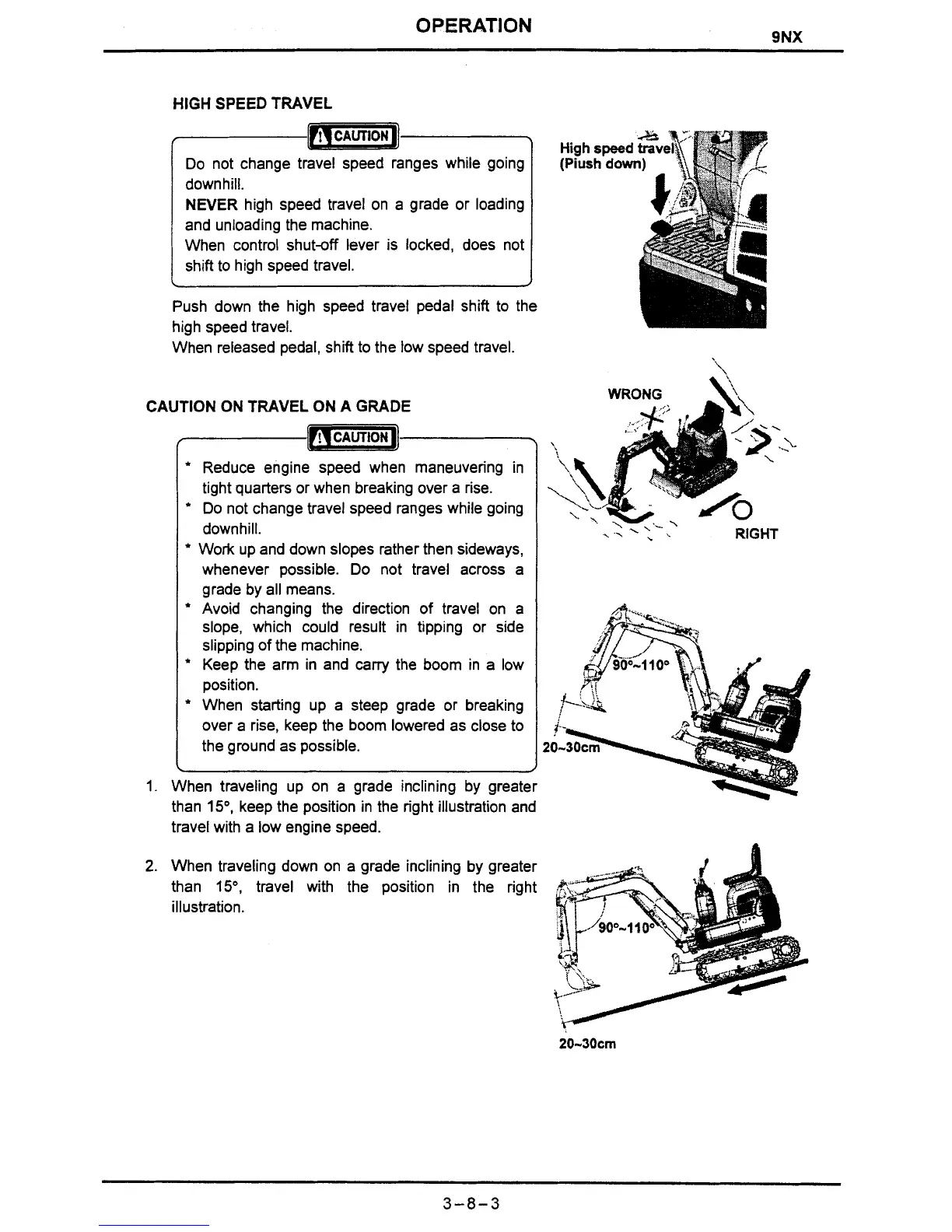

OPERATION
HIGH SPEED TRAVEL
Do not change travel speed ranges while going
downhill.
NEVER
high speed travel on a grade or loading
and unloading the machine.
When control shut-off lever is locked, does not
shift to high speed travel.
Push down the high speed travel pedal shift to the
high speed travel.
When released pedal, shift to the low speed travel.
'\
CAUTION ON TRAVEL ON A GRADE
Reduce engine speed when maneuvering in
tight quarters or when breaking over a rise.
Do not change travel speed ranges while going
downhill.
Work up and down slopes rather then sideways,
whenever possible. Do not travel across a
grade by all means.
Avoid changing the direction of travel on a
slope, which could result in tipping or side
slipping of the machine.
Keep the arm in and carry the boom in a low
position.
When starting up a steep grade or breaking
over a rise, keep the boom lowered as close to
the ground as possible.
c
J
1.
When traveling up on a grade inclining by greater
than
15O,
keep the position in the right illustration and
travel with a low engine speed.
,.;
\'-;
\
RIGHT
2.
When traveling down on a grade inclining by greater
/,+d
