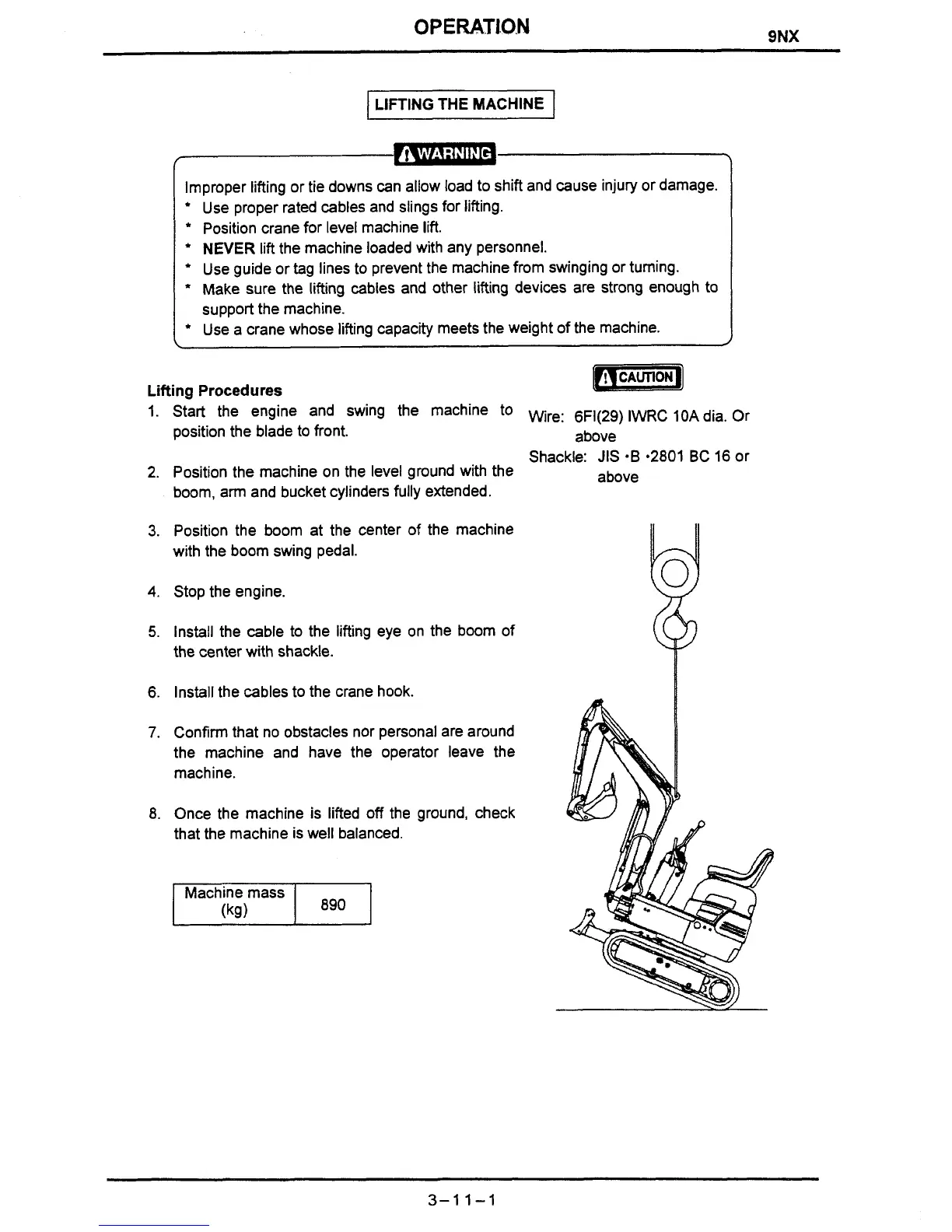

LIFTING THE MACHINE
f
Improper lifting or tie downs can allow load to shift and cause injury or damage.
*
Use proper rated cables and slings for lifting.
*
Position crane for level machine lift.
*
NEVER lift the machine loaded with any personnel.
*
Use guide or tag lines to prevent the machine from swinging or turning.
Make sure the lifting cables and other lifting devices are strong enough to
support the machine.
Use a crane whose lifting capacity meets the weight of the machine.
Lifting
Procedures
1. Start the engine and swing the machine to
Wire: 6F1(29) IWRC
Or
position the blade to front.
above
Shackle: JIS
.B 02801 BC 16 or
2. Position the machine on the level ground with the
above
boom, arm and bucket cylinders fully extended.
3. Position the boom at the center of the machine
with the boom swing pedal.
4. Stop the engine.
5. Install the cable to the lifting eye on the boom of
the center with shackle.
6. Install the cables to the crane hook.
7. Confirm that no obstacles nor personal are around
the machine and have the operator leave the
machine.
8. Once the machine is lifted off the ground, check
that the machine is well balanced.
Machine mass
-1
