IHI 9NX - Lower Roller Assy

SPECIFICATIONS
9NX
Snap
Oil

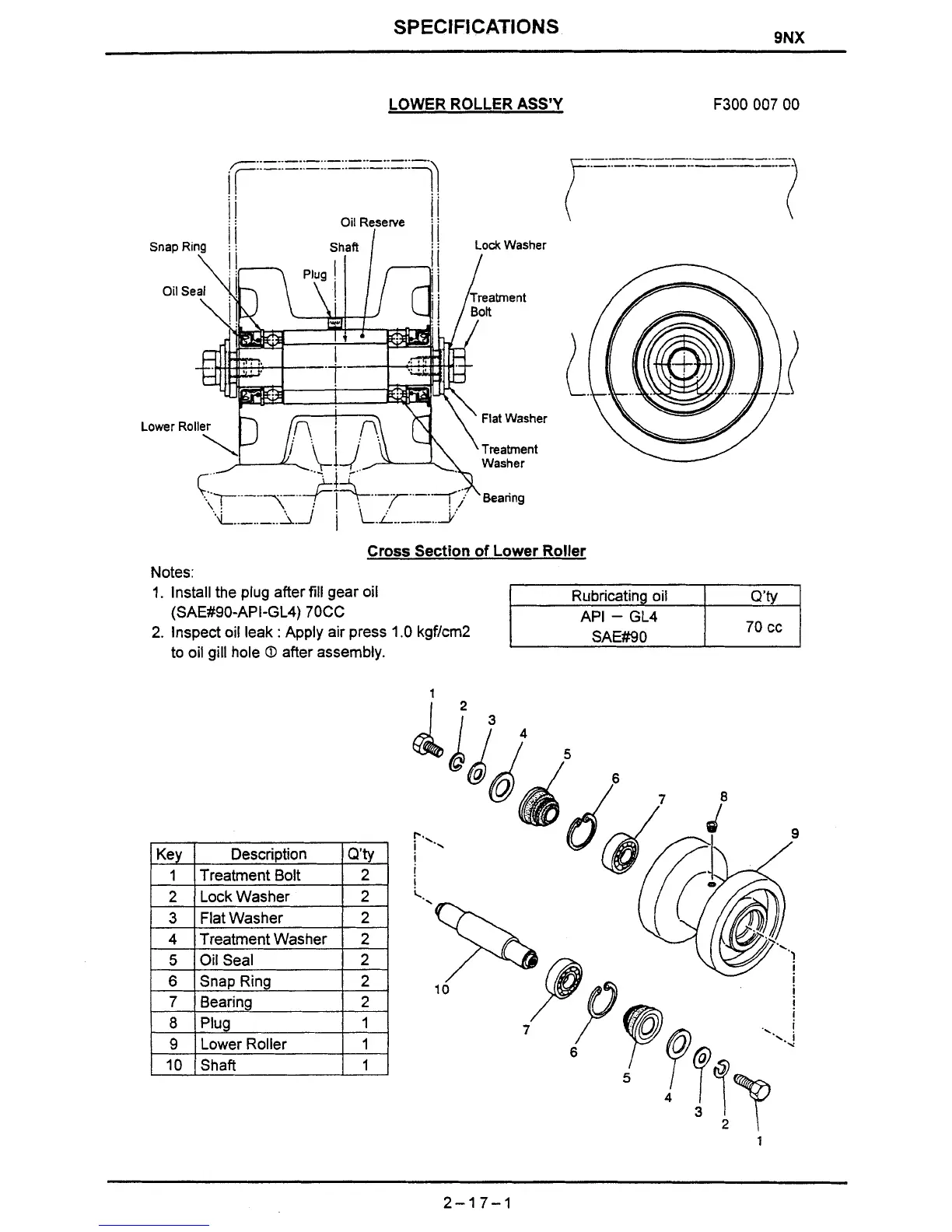

LOWER ROLLER ASS'Y
F300 007 00
-..-..-..-..-..-.- -..--
-..-..-..-..-..-..-..
i i
Oil Reserve
i i
Ring ' I: Shaft I I Lock Washer
Lower Roller
' Flat Washer
Treatment
Washer
-. I .-''
Cross Section of Lower Roller
Notes:
1. Install the plug after fill gear oil
(SAE#90-API-GL4) 70CC
2. Inspect oil leak
: Apply air press 1.0 kgWcm2
to oil gill hole O after assembly.
API
- GL4
SAE#90
Q'ty
2
2
2
2
2
2
2
1
1
1
Key
1
2
3
4
7
5
6
7
8
9
10
Description
Treatment Bolt
Lock Washer
Flat Washer
Treatment Washer
Oil Seal
Snap Ring
Bearing
Plug
Lower Roller
Shaft
