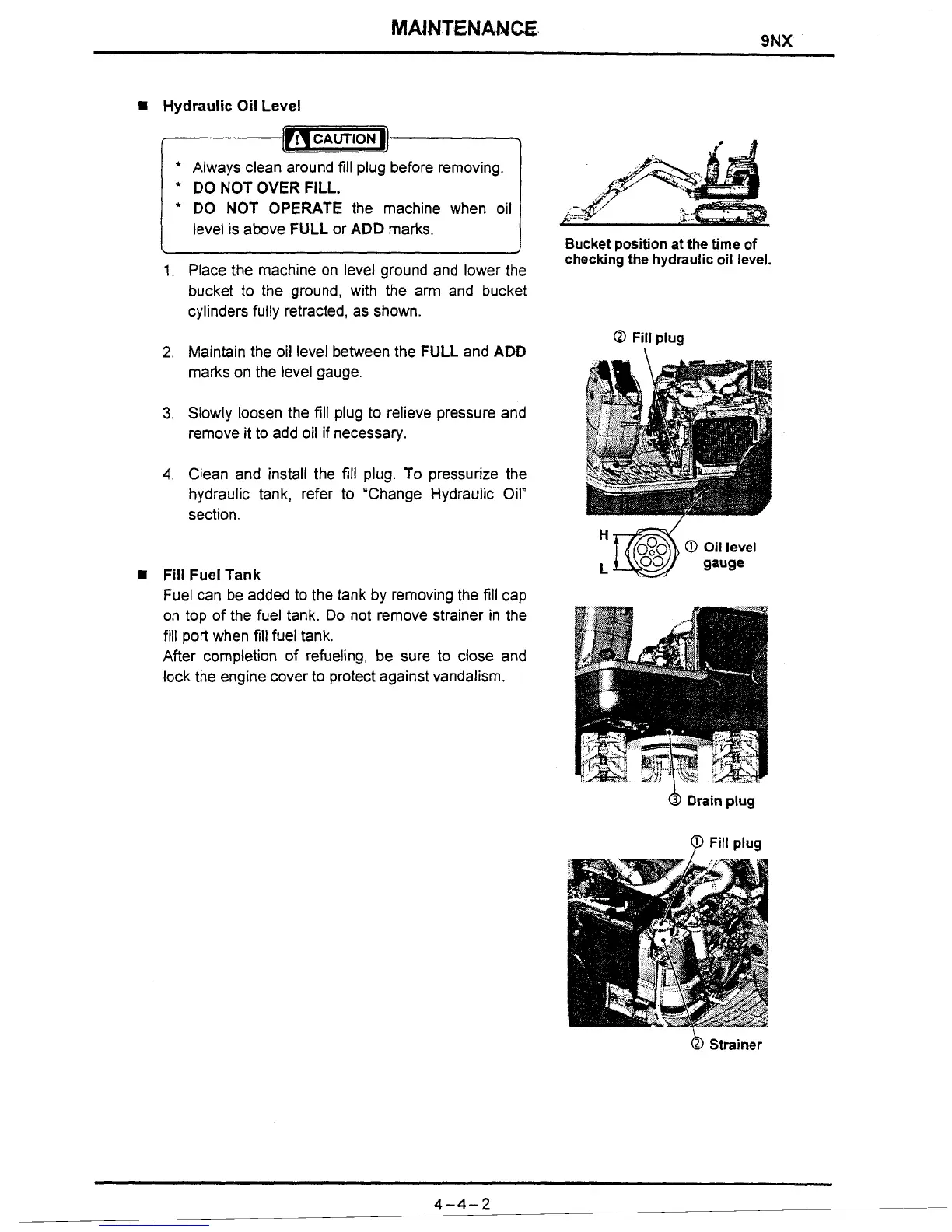

IHI 9NX - Fill Fuel Tank; Hydraulic Oil

MAINTENANCE
9NX
Hydraulic Oil Level
*
Always clean around fill plug before removing.
* DO NOT OVER FILL.
* DO NOT OPERATE the machine when oil
level is above
FULL or ADD marks.
1. Place the machine on level ground and lower the
bucket to the ground, with the arm and bucket
cylinders fully retracted, as shown.
2. Maintain the oil level between the FULL and ADD
marks on the level gauge.
3. Slowly loosen the fill plug to relieve pressure and
remove it to add oil if necessary.
4. Clean and install the fill plug. To pressurize the
hydraulic tank, refer to 'Change Hydraulic Oil"
section.
Fill Fuel Tank
Fuel can be added to the tank by removing the fill cap
on top of the fuel tank. Do not remove
fill port when fill fuel tank.
After completion of refueling, be sure
lock the engine cover to protect against
-
strainer in the
to close and
vandalism.
Bucket position at the time of
checking
the hydraulic oil level.
0 Fill plug
\
6 Drain plug
Fill plug
b stainer
