IHI 9NX - Travel Motor

STRUCTURE 8 FUNCTION
91

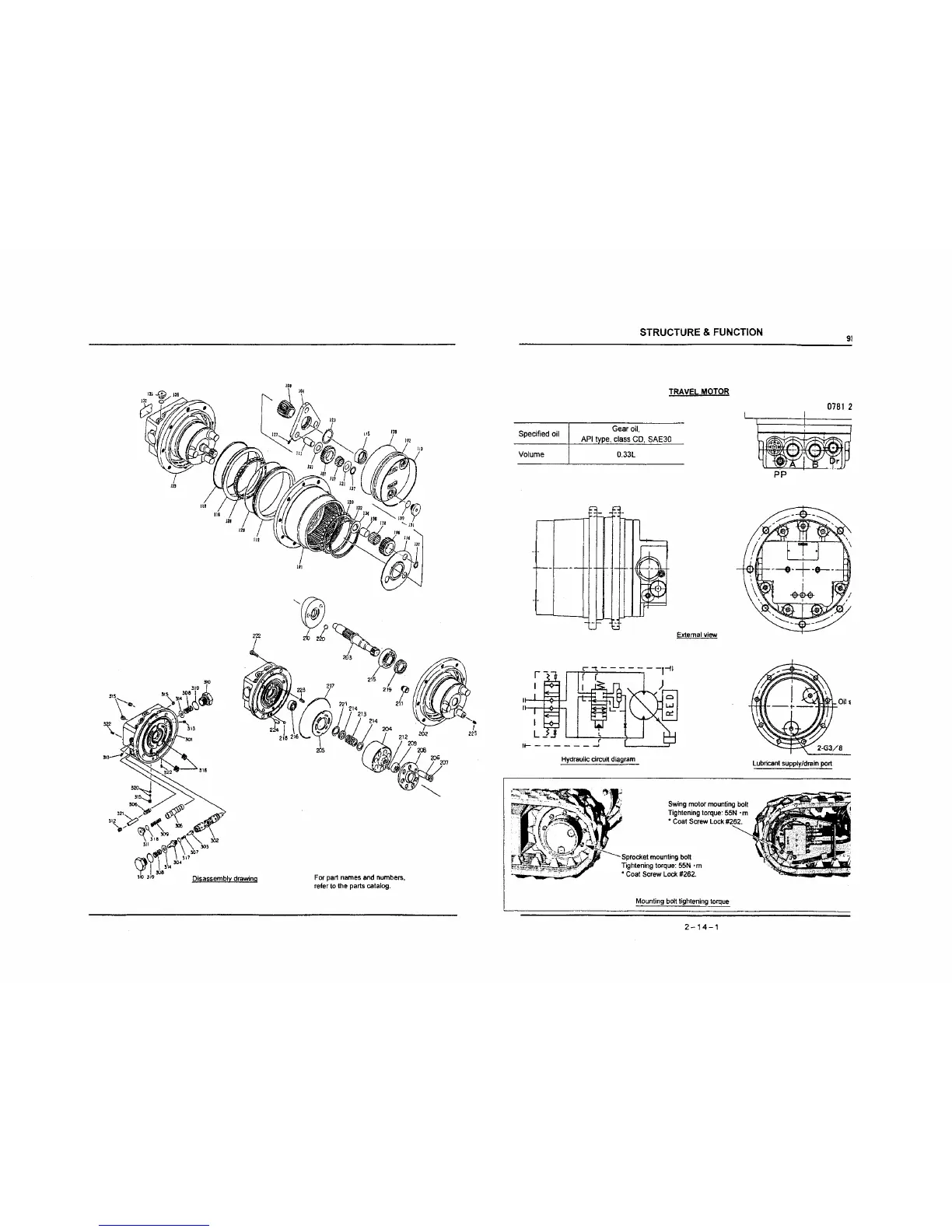

Disassemblv drawinq
For part names and numbers.
refer to the parts catalog.
External view
T
TRAVEL MOTOR
0781 2
t+------d' w
Hydraulic circuit diagram
Specified oil
Volume
I\
Lubricant supplyldrain port
Gear oil,
API type, class
CD. SAE30
0.33L
Swing motor mounting bolt
Tightening torque'
55N .m
' Coat Screw Lock #
Sprocket mounting bolt
Tightening torque: 55N .m
' Coat Screw Lock #262.
PP
Mounting bolt tightening toque
2-14-1
