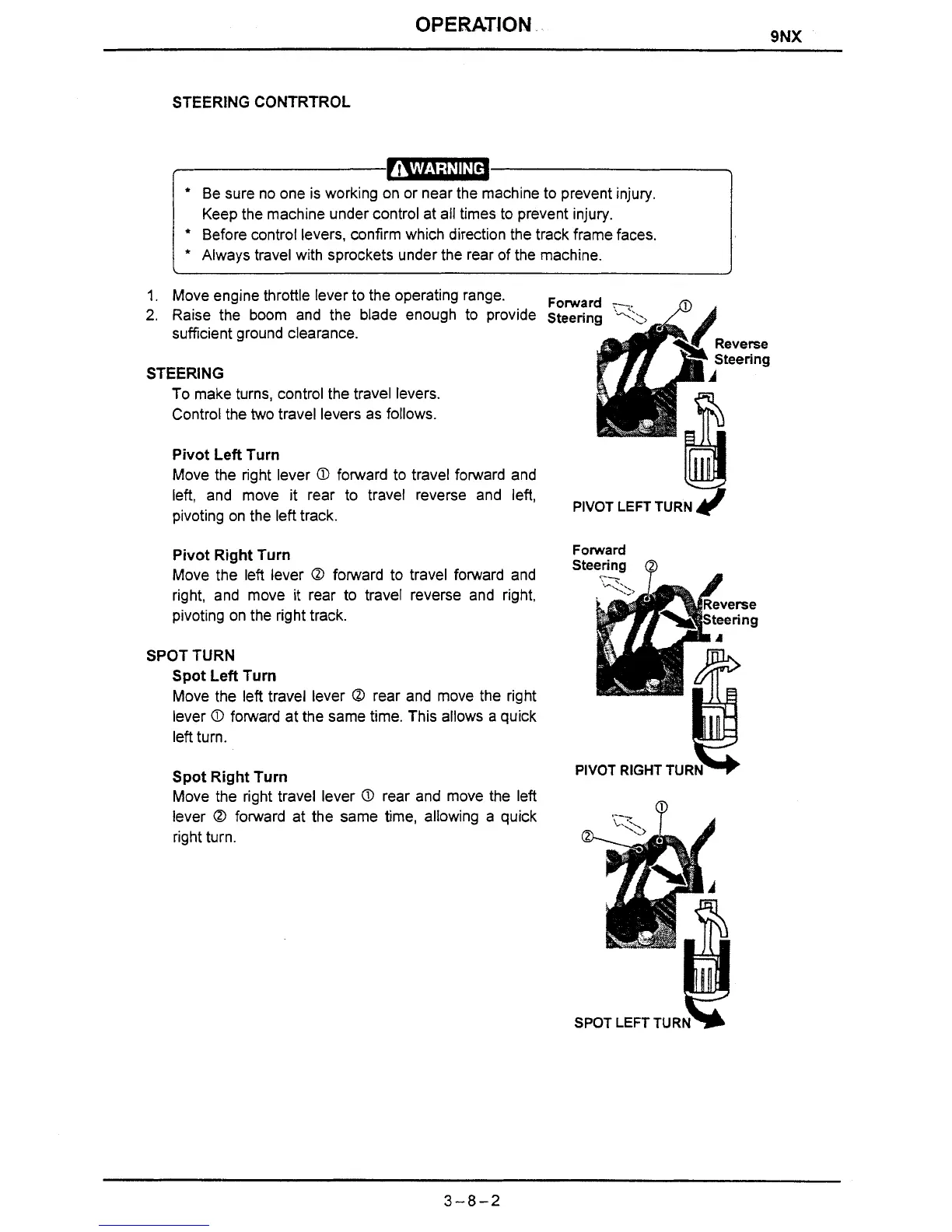

OPERATION
STEERING CONTRTROL
+
Be sure no one is working on or near the machine to prevent injury.
Keep the machine under control at all times to prevent injury.
+
Before control levers, confirm which direction the track frame faces.
Always travel with sprockets under the rear of the machine.
1. Move engine throttle lever to the operating range.
Forward :-.
2. Raise the boom and the blade enough to provide Steering '4.
sufficient ground clearance.
e
9
STEERING
To make turns, control the travel levers.
Control the two travel levers as follows.
Pivot Left Turn
Move the right lever
O forward to travel forward and
-
w
left, and move it rear to travel reverse and left,
pivoting on the left track.
PIVOT
LEFT TURN
Pivot Right Turn
Forward
Move the left lever O forward to travel forward and
right, and move
it rear to travel reverse and right,
pivoting on the right track.
SPOT TURN
Spot Left Turn
Move the left travel lever
O rear and move the right
lever
O forward at the same time. This allows a quick
left turn.
Spot Right Turn
PIVOT RIGHT TUR
Move the right travel lever
O rear and move the left
lever
O forward at the same time, allowing a quick
right turn.
SPOT LEFT TUR
