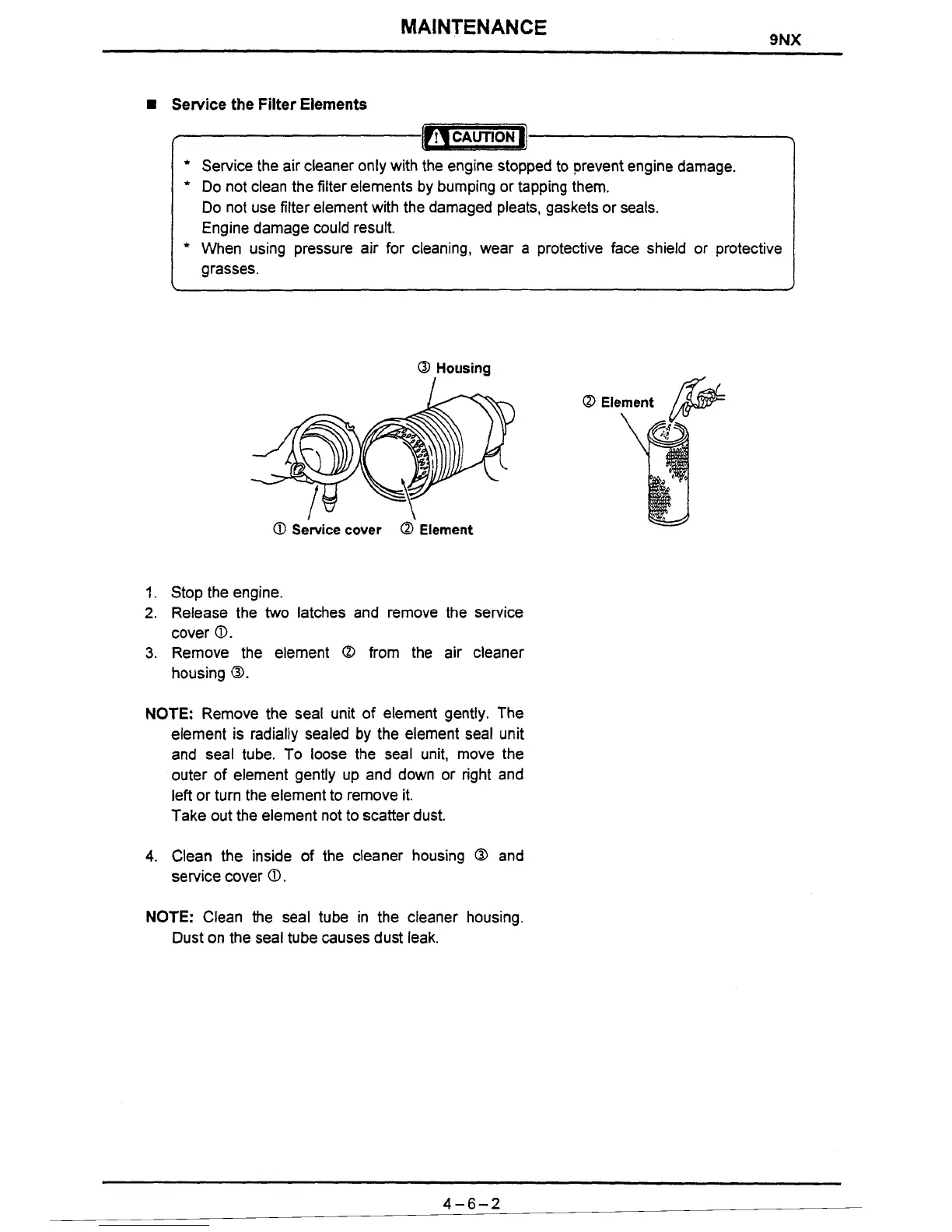

IHI 9NX - Service the Filter Elements

MAINTENANCE
Service the Filter Elements
Service the air cleaner only with the engine stopped to prevent engine damage.
Do not clean the filter elements by bumping or tapping them.
Do not use filter element with the damaged pleats, gaskets or seals.
Engine damage could result.
When using pressure air for cleaning, wear a protective face shield or protective
grasses.
Q Housing
-
Service cover @ Element
1. Stop the engine.
2. Release the two latches and remove the service
cover
O.
3. Remove the element 0 from the air cleaner
housing
O.
NOTE: Remove the seal unit of element gently. The
element is radially sealed by the element seal unit
and seal tube. To loose the seal unit, move the
outer of element gently up and down or right and
left or turn the element to remove it.
Take out the element not to scatter dust.
4. Clean the inside of the cleaner housing O and
service cover
O .
NOTE: Clean the seal tube in the cleaner housing.
Dust on the seal tube causes dust leak.
