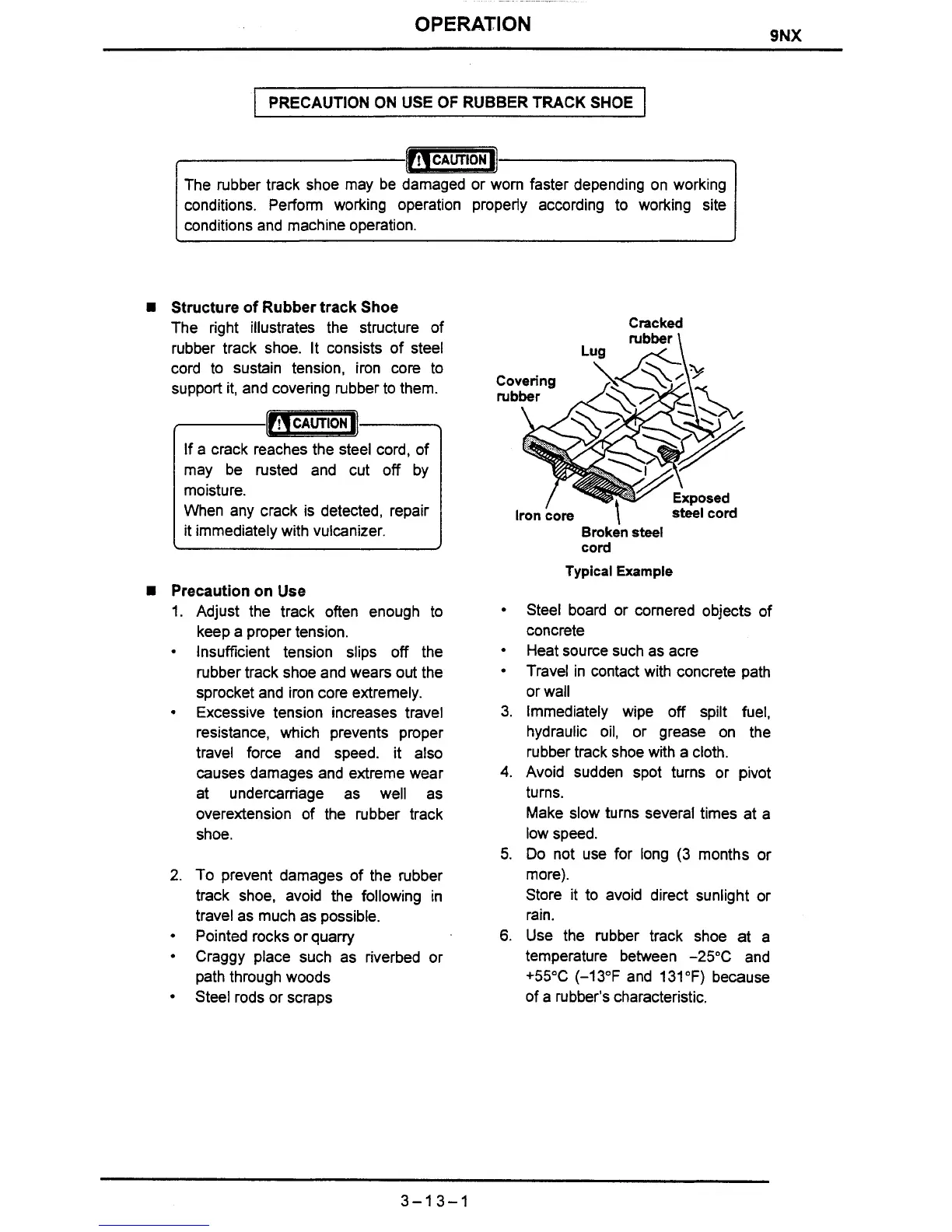

OPERATION
PRECAUTION ON USE OF RUBBER TRACK SHOE
The rubber track shoe may be damaged or worn faster depending on working
conditions. Perform working operation properly according to working site
I
conditions and machine operation.
I
Structure
of
Rubber track Shoe
The right illustrates the structure of
rubber track shoe. It consists of steel
cord to sustain tension, iron core to
support it, and covering rubber to them.
(-
!
CAUTION
If a crack reaches the steel cord, of
may be rusted and cut off by
moisture.
When any crack is detected, repair
it immediately with vulcanizer.
Precaution on Use
1. Adjust the track often enough to
keep a proper tension.
Insufficient tension slips off the
rubber track shoe and wears out the
sprocket and iron core extremely.
Excessive tension increases travel
resistance, which prevents proper
travel force and speed. it also
causes damages and extreme wear
at undercarriage as well as
overextension of the rubber track
shoe.
2.
To prevent damages of the rubber
track shoe, avoid the following in
travel as much as possible.
Pointed rocks or quarry
Craggy place such as riverbed or
path through woods
Steel rods or scraps
Cracked
rubber
\
lron ;ore
\
steel cord
~roken steel
cord
Typical Example
Steel board or cornered objects of
concrete
Heat source such as acre
Travel in contact with concrete path
or wall
3.
Immediately wipe off spilt fuel,
hydraulic oil, or grease on the
rubber track shoe with a cloth.
4.
Avoid sudden spot turns or pivot
turns.
Make slow turns several times at a
low speed.
5.
Do not use for long (3 months or
more).
Store it to avoid direct sunlight or
rain.
6.
Use the rubber track shoe at a
temperature between
-25°C and
+55"C (-1 3°F and 131 OF) because
of a rubber's characteristic.
