OPERATION

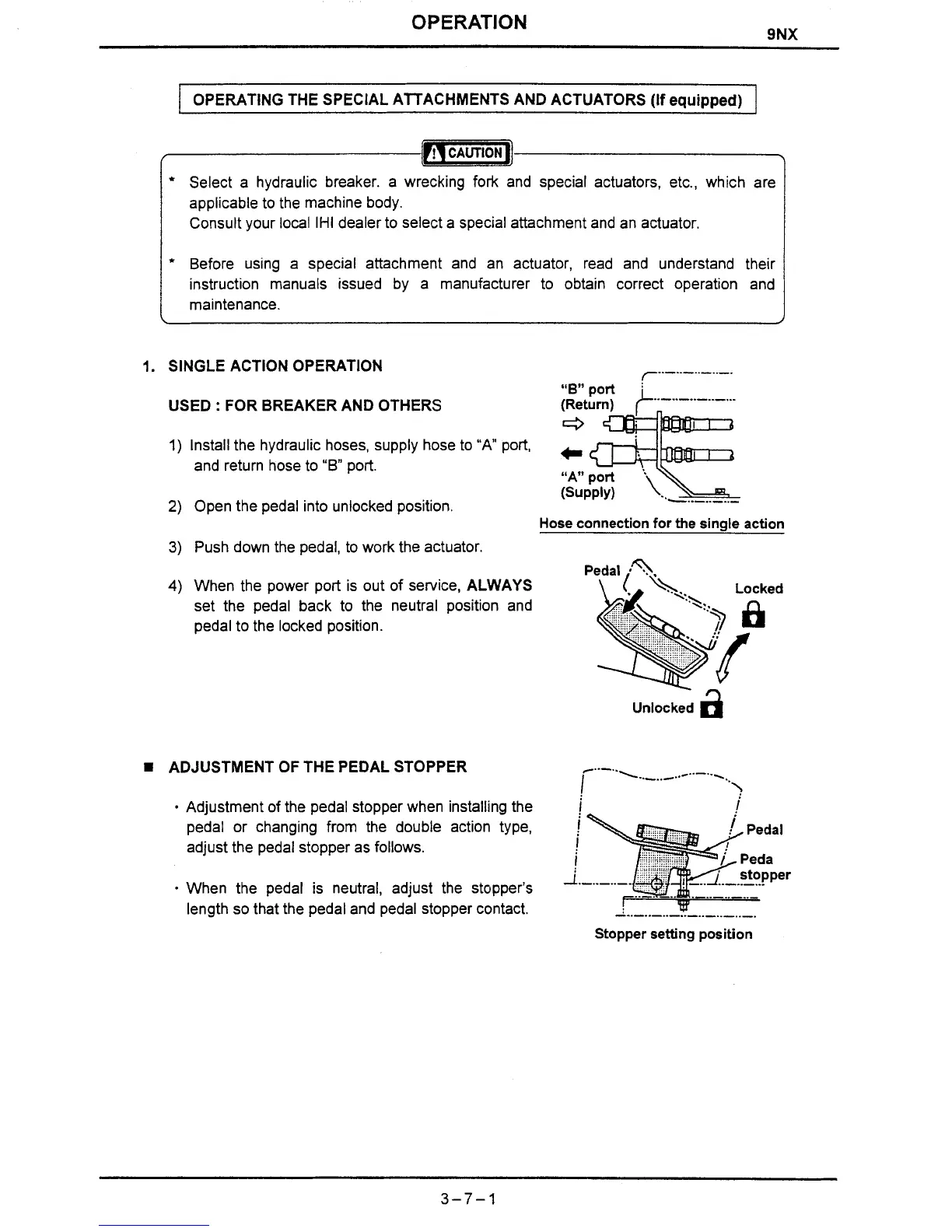

OPERATING THE SPECIAL AlTACHMENTS AND ACTUATORS (If equipped)
Select a hydraulic breaker. a wrecking fork and special actuators, etc., which are
applicable to the machine body.
Consult your local
IHI dealer to select a special attachment and an actuator.
Before using a special attachment and an actuator, read and understand their
instruction manuals issued by a manufacturer to obtain correct operation and
maintenance.
1. SINGLE ACTION OPERATION
USED
: FOR BREAKER AND OTHERS
..-..-..- .--..-
1) Install the hydraulic hoses, supply hose to "A port,
and return hose to "B" port.
2) Open the pedal into unlocked position.
.-..- ..-..-
Hose connection for the single action
3) Push down the pedal, to work the actuator.
4) When the power port is out of service, ALWAYS
set the pedal back to the neutral position and
pedal to the locked position.
W ADJUSTMENT OF THE PEDAL STOPPER
Adjustment of the pedal stopper when installing the
pedal or changing from the double action type,
adjust the pedal stopper as follows.
When the pedal is neutral, adjust the stopper's
length so that the pedal and pedal stopper contact.
Stopper setting position
