MAINTENANCE
9NX

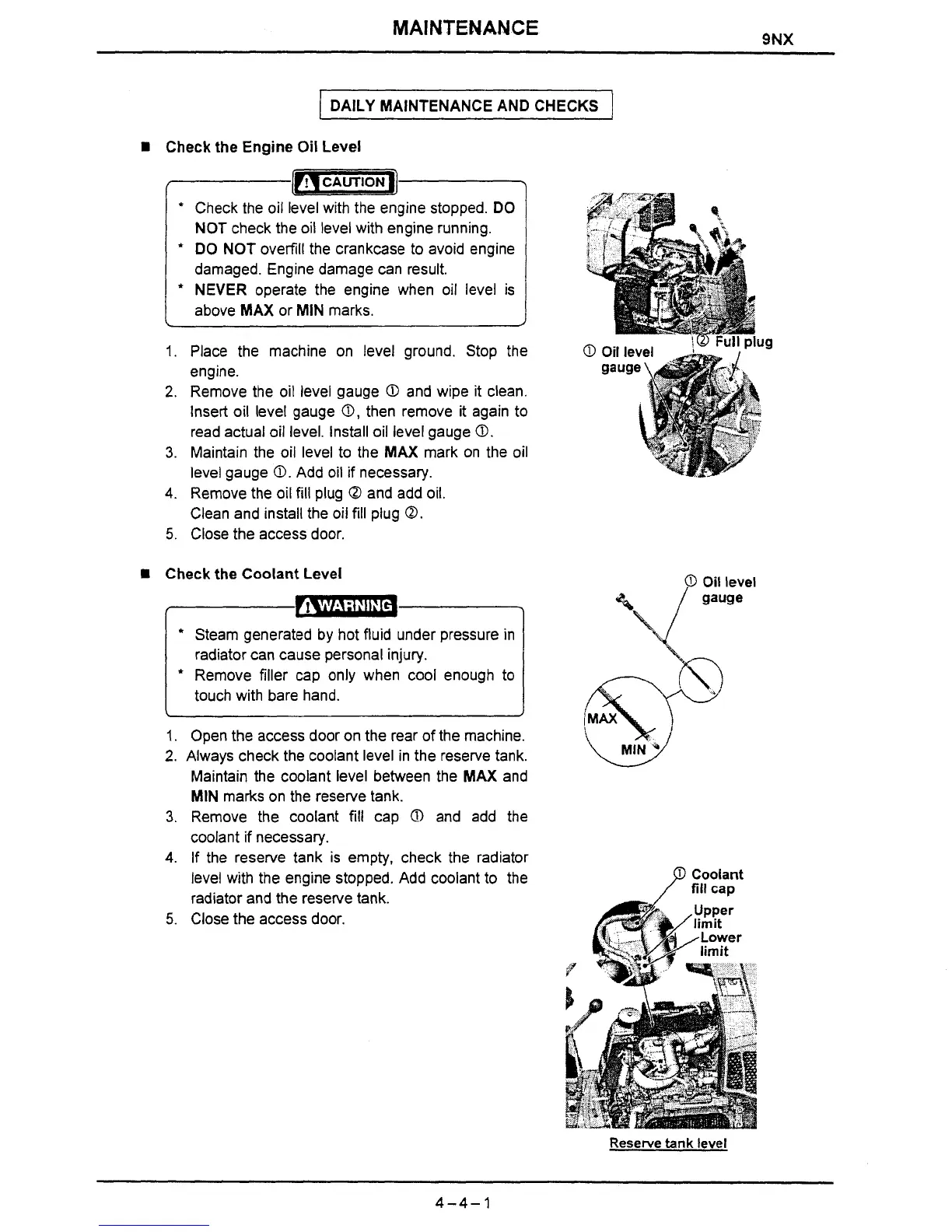

DAILY MAINTENANCE AND CHECKS
Check the Engine Oil Level
*
Check the oil level with the engine stopped. DO
NOT
check the oil level with engine running.
DO NOT overfill the crankcase to avoid engine
damaged. Engine damage can result.
NEVER operate the engine when oil level is
above
MAX or MIN marks.
- - -- -
1. Place the machine on level ground. Stop the
engine.
2. Remove the oil level gauge O and wipe it clean.
Insert oil level gauge
GI, then remove it again to
read actual oil level. Install oil level gauge
GI.
3. Maintain the oil level to the MAX mark on the oil
level gauge
0. Add oil if necessary.
4. Remove the oil fill plug O and add oil.
Clean and install the oil fill plug
O.
5. Close the access door.
m Check the Coolant Level
*
Steam generated by hot fluid under pressure in
radiator can cause personal injury.
Remove filler cap only when cool enough to
touch with bare hand.
1. Open the access door on the rear of the machine.
2. Always check the coolant level in the reserve tank.
Maintain the coolant level between the
MAX and
MIN marks on the reserve tank.
3. Remove the coolant fill cap O and add the
coolant if necessary.
4. If the reserve tank is empty, check the radiator
level with the engine stopped. Add coolant to the
radiator and the reserve tank.
5. Close the access door.
p Oil level
Reserve
tank level
