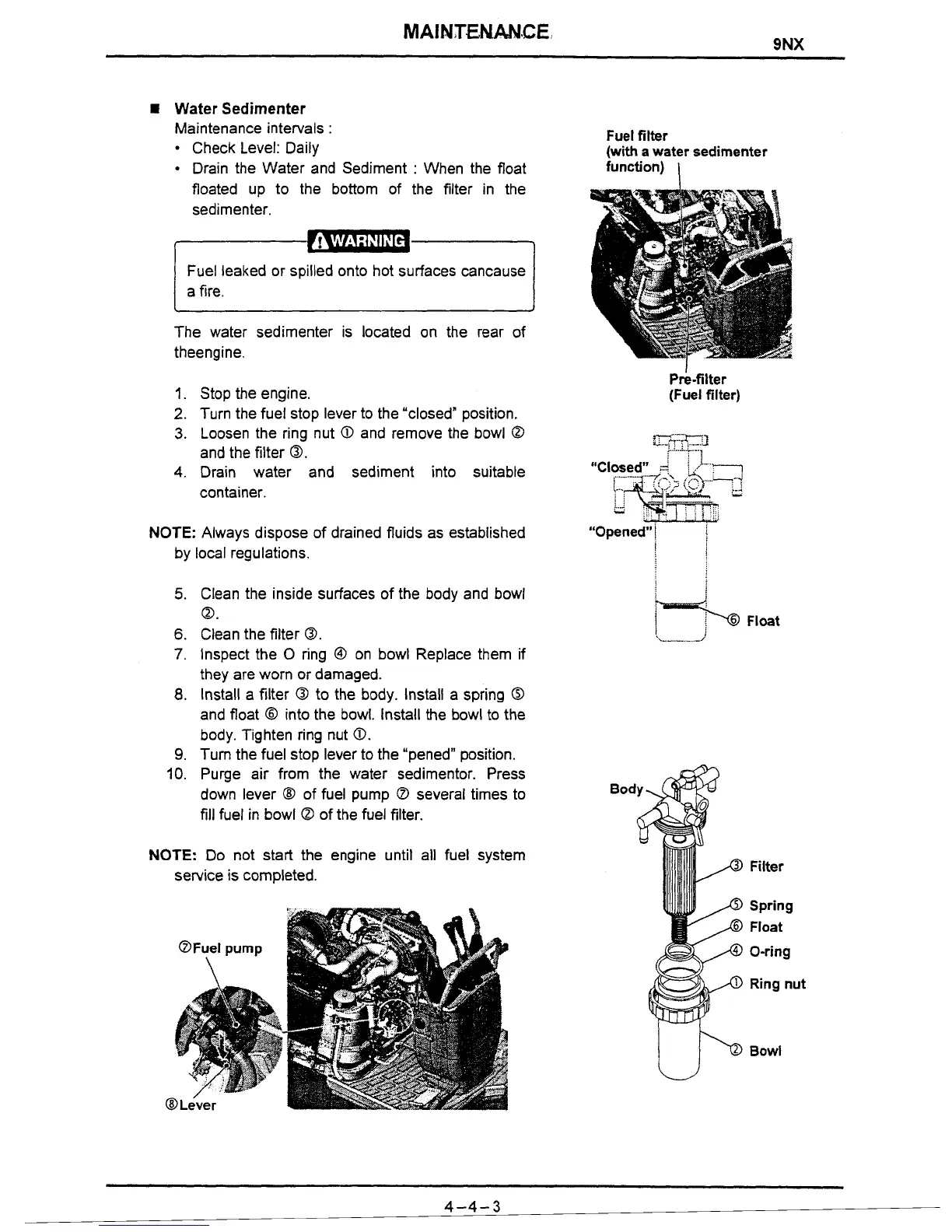

Water Sedirnenter
Maintenance intervals
:
Check Level: Daily
Drain the Water and Sediment
:
When the float
floated up to the bottom of the filter in the
sedimenter.
Fuel leaked or spilled onto hot surfaces
cancause
a fire.
The water sedimenter is located on the rear of
theengine.
1.
Stop the engine.
2.
Turn the fuel stop lever to the "closed" position.
3.
Loosen the ring nut
0
and remove the bowl
0
and the filter
O.
4.
Drain water and sediment into suitable
container.
NOTE:
Always dispose of drained fluids as established
by local regulations.
5.
Clean the inside surfaces of the body and bowl
0.
6.
Clean the filter
O.
7.
Inspect the
0
ring
@
on bowl Replace them if
they are worn or damaged.
8.
Install a filter
O
to the body. Install a spring
O
and float
63
into the bowl. Install the bowl to the
body. Tighten ring nut
0.
9.
Turn the fuel stop lever to the "pened" position.
10.
Purge air from the water sedimentor. Press
down lever
@
of fuel pump
@
several times to
fill
fuel in bowl
O
of the fuel filter.
NOTE:
Do not start the engine until all fuel system
service is completed.
Fuel filter
(with a water sedimenter
function)
I
~&-fi~ter
(Fuel filter)
"Opened"
i
1
Filter
Spring
Float
O-ring
Ring nut
2
Bowl
!rS
