SPECIFICATIONS
9NX
SWING DRIVE DEVICE & BEARING
Layout
Hexagonal socket
Treatment washer
M10
Treatment Bolt : MI0 x 30 ,

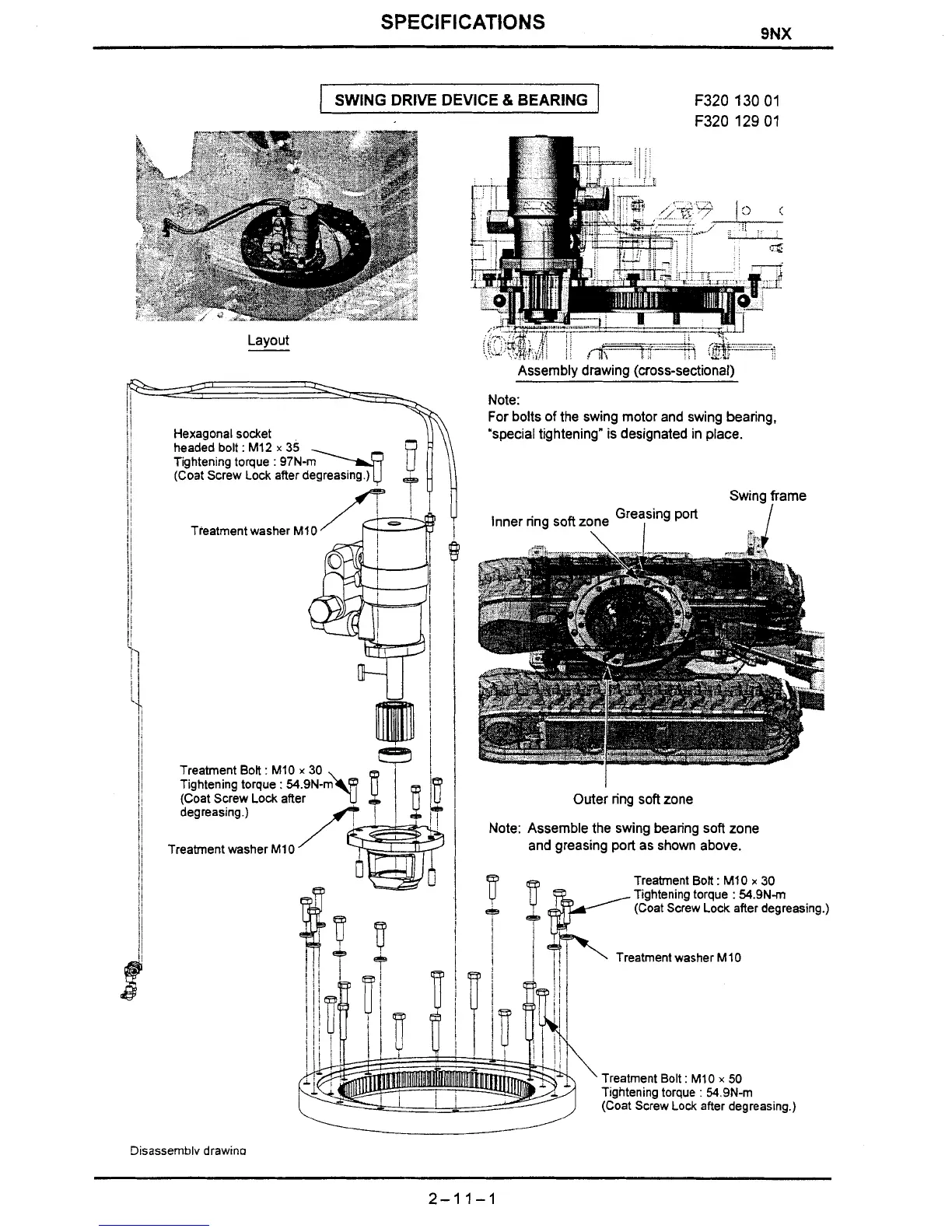

Assembly drawing (cross-sectional)
Note:
For bolts of the swing motor and swing bearing,
'special tightening" is designated in place.
Swing frame
Greasing port
inner ring soft zone
, I
Tightening torque :
(Coat Screw Lock aft
Outer ring soft zone
degreasing.)
Note: Assemble the swing bearing soft zone
Treatment washer MI 0
and greasing port as shown above.
Treatment Bolt : M10 x 30
Tightening torque
: 54.9N-rn
(Coat Screw Lock after degreasing.)
Treatment washer
MI0
Treatment Bolt : MI0 x 50
Tightening torque
: 54.9N-m
(Coat Screw Lock after degreasing.)
Disassemblv drawino
L;
