IHI 9NX - Change the Fuel Filter Element

MAINTENANCE
Bucket position at the time of
sealing
off hydraulic tank.

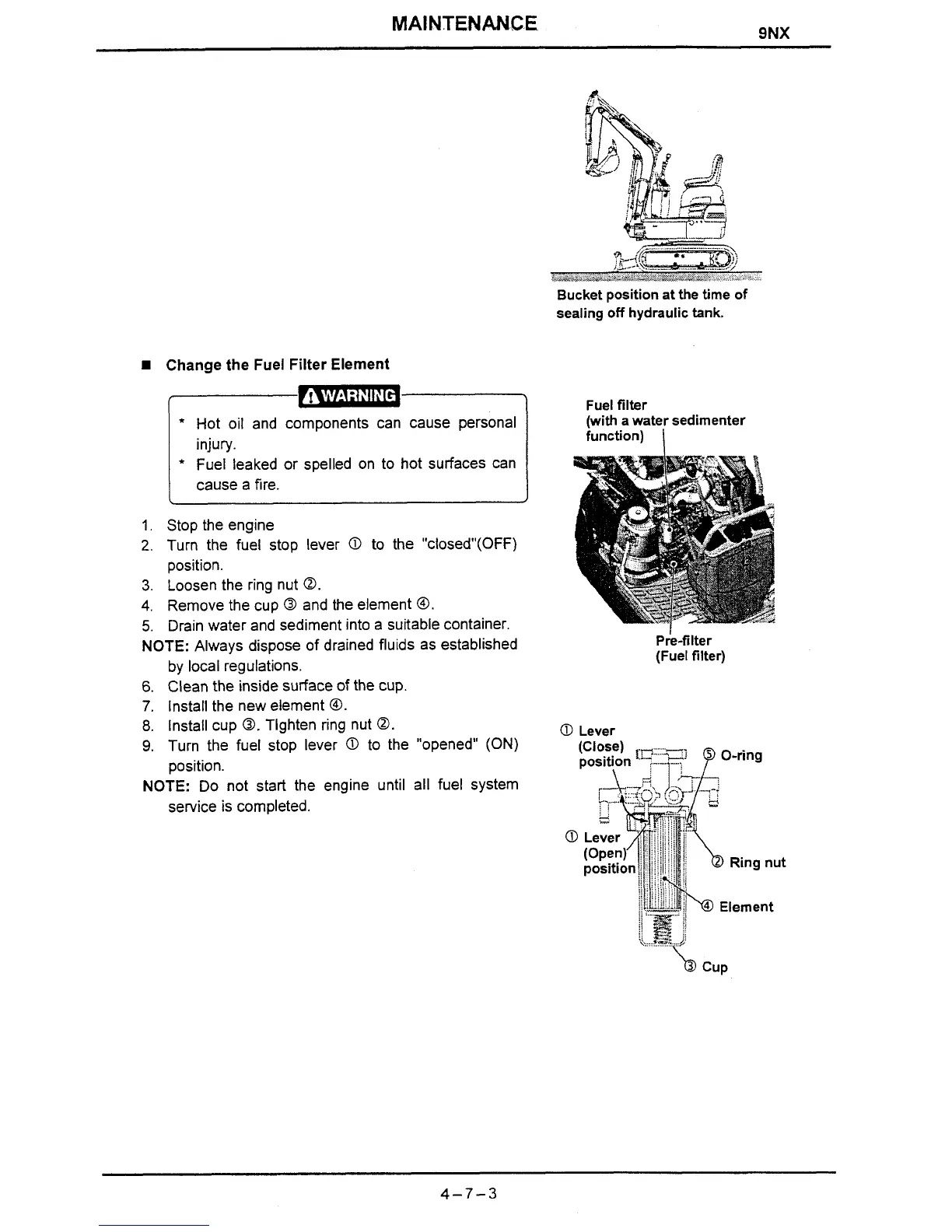

1 Change the Fuel Filter Element
(pEsmmp) Fuel filter
* Fuel leaked or spelled on to hot surfaces can
cause a fire.
<
,
1. Stop the engine
2. Turn the fuel stop lever O to the "closed"(0FF)
position.
3. Loosen the ring nut 0.
4. Remove the cup O and the element @.
5. Drain water and sediment into a suitable container.
NOTE: Always dispose of drained fluids as established
(Fuel Pre-filter filter)
by local regulations.
6. Clean the inside surface of the cup.
7. Install the new element @.
8. Install cup 0. Tighten ring nut 0. O Lever
9. Turn the fuel stop lever O to the "opened" (ON)
position.
NOTE: Do not start the engine until all fuel system
service is completed.
:, :...7 :!
il &&
$ .,& :,,,, )i
\:::: ... .. . . . . . . . /
'b cup
*
Hot oil and components can cause personal
injury.
(with a water sedimenter
function)
I
