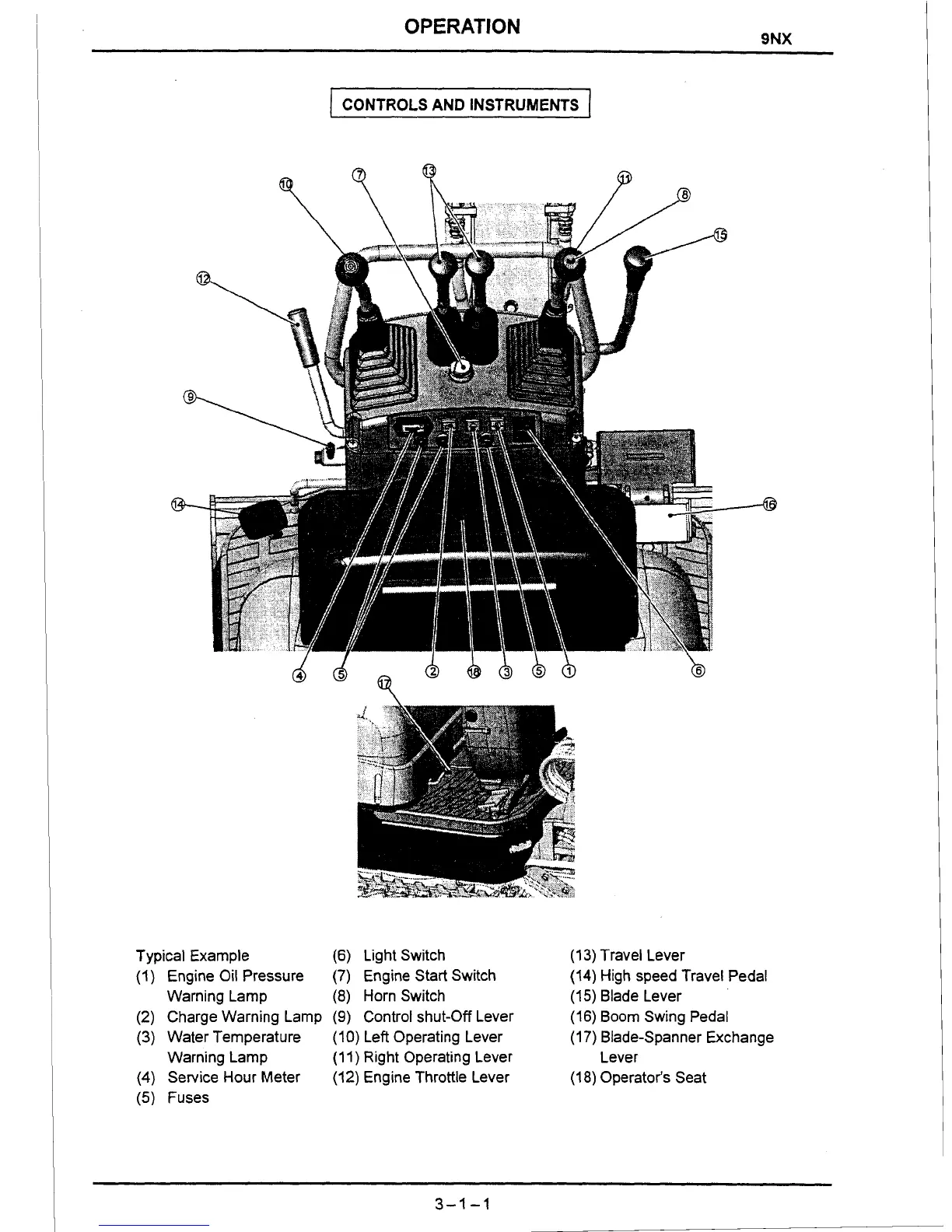

OPERATION
CONTROLS
AND
INSTRUMENTS
Typical Example (6) Light Switch (1
3)
Travel Lever
(1) Engine Oil Pressure (7) Engine Start Switch
(14)
High speed Travel Pedal
Warning Lamp (8) Horn Switch (15) Blade Lever
(2) Charge Warning Lamp
(9)
Control shut-Off Lever (16) Boom Swing Pedal
(3) Water Temperature (10) Left Operating Lever (17) Blade-Spanner Exchange
Warning Lamp (1
1)
Right Operating Lever Lever
(4)
Service Hour Meter (12) Engine Throttle Lever (1 8) Operator's Seat
(5)
Fuses
