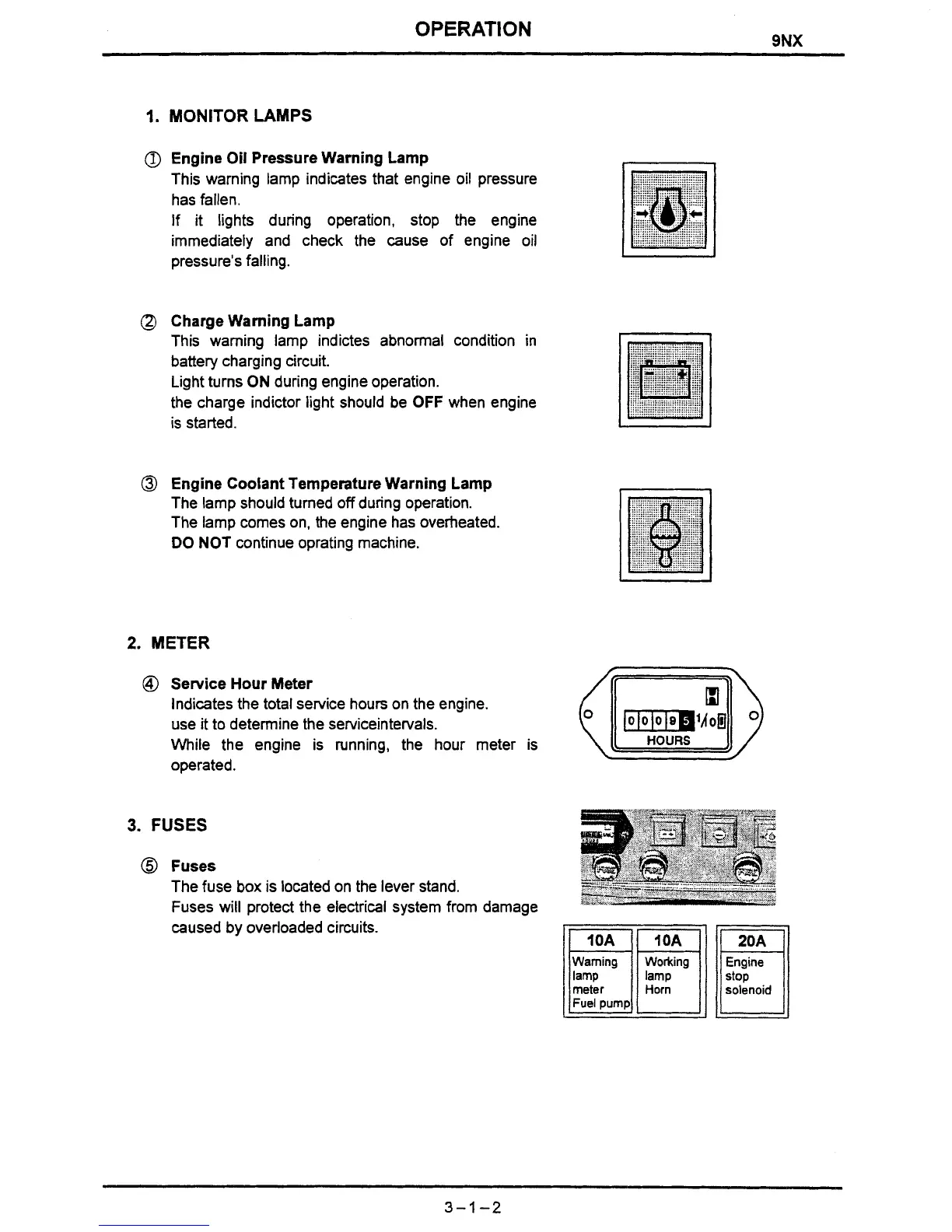

IHI 9NX - Monitor Lamps; Service Hour Meter; Fuses

OPERATION
9NX
1. MONITOR LAMPS
a Engine Oil Pressure Warning Lamp
This warning lamp indicates that engine oil pressure
has fallen.
If it lights during operation, stop the engine
immediately and check the cause of engine oil
pressure's falling.
Q Charge Warning Lamp
This warning lamp indictes abnormal condition in
battery charging circuit.
Light turns
ON during engine operation.
the charge indictor light should be
OFF when engine
is started.
@) Engine Coolant Temperature Warning Lamp
The lamp should turned off during operation.
The lamp comes on, the engine has overheated.
DO NOT continue oprating machine.
2. METER
@ Service Hour Meter
Indicates the total service hours on the engine.
use it to determine the
se~iceintervals.
While the engine is running, the hour meter is
operated.
3. FUSES
@ Fuses
The fuse box is located on the lever stand.
Fuses will protect the electrical system from damage
caused by overloaded circuits.
1 Fuel pump1 1
I I
mi
solenoid
