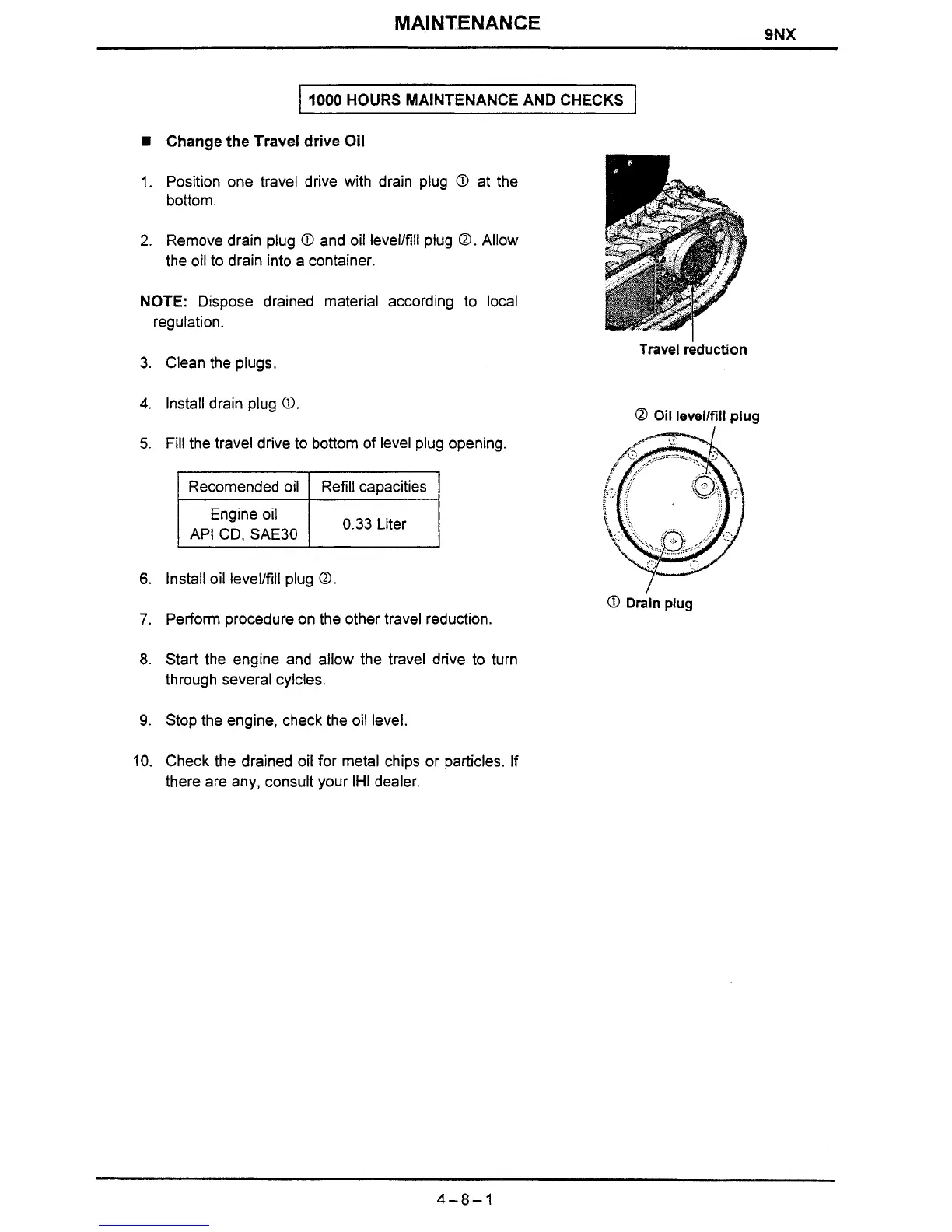

1000 HOURS MAINTENANCE AND CHECKS
H Change the Travel drive Oil
-
1. Position one travel drive with drain plug O at the
bottom.
2. Remove drain plug O and oil levellfill plug O. Allow
the oil to drain into a container.
NOTE: Dispose drained material according to local
regulation.
Travel r=duction
3. Clean the plugs.
4. Install drain plug O.
0 Oil levellfill plug
API CD, SAE30
0.33 Liter
5. Fill the travel drive to bottom of level plug opening.
6. Install oil levellfill plug O.
I
Drain plug
7. Perform procedure on the other travel reduction.
8. Start the engine and allow the travel drive to turn
through several
cylcles.
9. Stop the engine, check the oil level.
10. Check the drained oil for metal chips or particles. If
there are any, consult your
IHI dealer.
