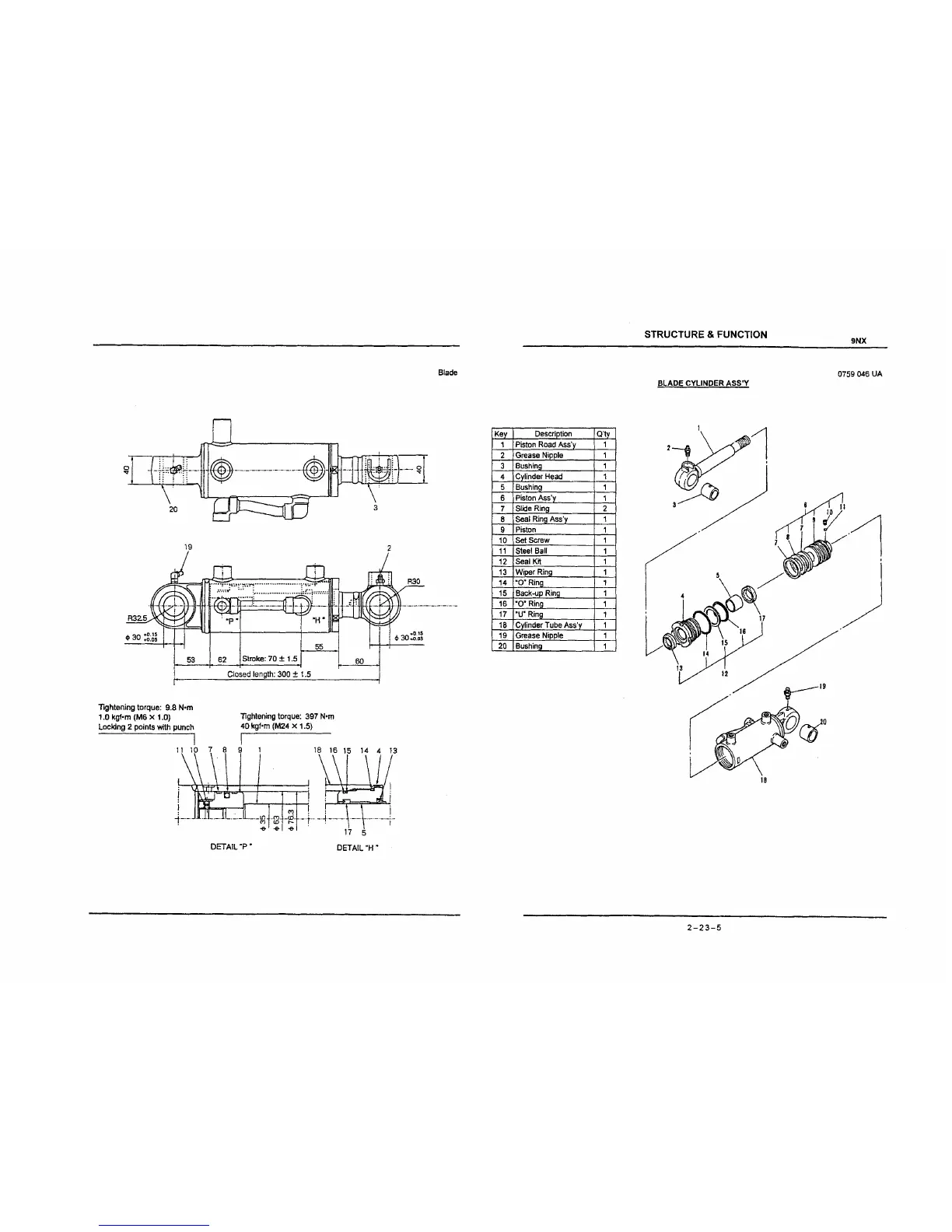

IHI 9NX - Blade Cylinder

53 1 62 I Slroke: 70 + 1.5
Closed length: 300 ? 1.5
-
lightening torque: 9.8 N-m
1.0 kgf-m (M6 X 1.0)
lightening torque: 397
N-rn
Locking 2 points with punch
40
kgfm (M24 X 1.5)
DETAIL "P '
DETAIL "H "
Blade
STRUCTURE 8 FUNCTION
9NX
0759 046 UA
BLADE CYLINDER ASS'Y
