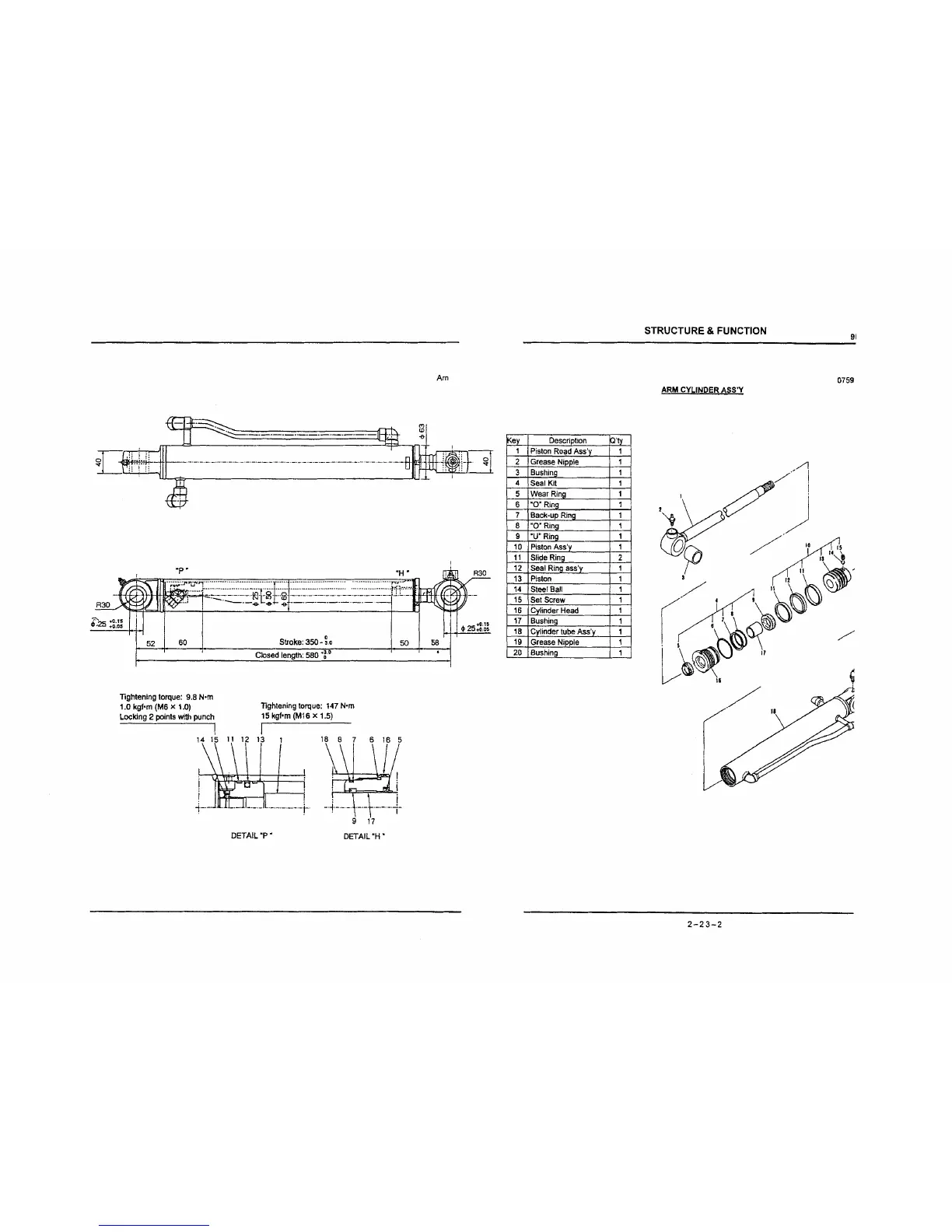

IHI 9NX - Arm Cylinder

STRUCTURE 8 FUNCTION a1
Stroke: 350 - !.o
L
Closed length: 580 'to
I.
lightening torque: 9.8 N-rn
1.0 kern (M6 x 1 .O)
Locking
2 points with punch
Tightening toque:
147 N-rn
15 kern (MI6 x 1.5)
9 1'7
DETAIL 'P '
DETAIL 'H '
0759
ARM CYLINDER ASS'Y
