The output on terminal T5 can be configured as a dimmer type output, to be used as an
analog output (industrial standard 0-10V).
The 5 outputs on the Flex5/DAC expansion board can be configured as:
•Relay output
• Triac ON/OFF output (default setting)
• Triac dimmer output
The terminal pairs of the Flex5/DAC OUT1-OUT2 and OUT3-OUT4 are provided with the
interlock function which is required in applications with, for example, roller blind motors.
Activated via the option, which must be activated for both terminals of the pair, this function
has the purpose of inhibiting the simultaneous active status of the associated terminals.
The outputs configured on the keypads are all open-collector outputs.
Via keypad
Type in Code
(Installer)
, PROGRAMMING Terminals,
select the terminal concerned configured as con-
trolled output (“
H
”)
or
Type in Code
(Installer),
PROGRAMMING Outputs ,
select the output concerned
Via softwareTo program the output, click on the System Layout button and, in the section on the right,
select the device (control panel or peripheral) to which the terminal to be configured belongs.
Here, by right clicking on the terminal icon you can configure it as an “output”. Instead, by
double clicking you access the programming phase.
or
Click on the Outputs button on the menu on the left, the section on the right will provide a
list of all the available outputs and their parameters. Selecting one of the options will allow
you to configure the parameters of the single output by clicking on the button.
Note
If the stand-by status of the output is determined by the occurrence of an event, the output will still not
return to stand-by status during programming mode.

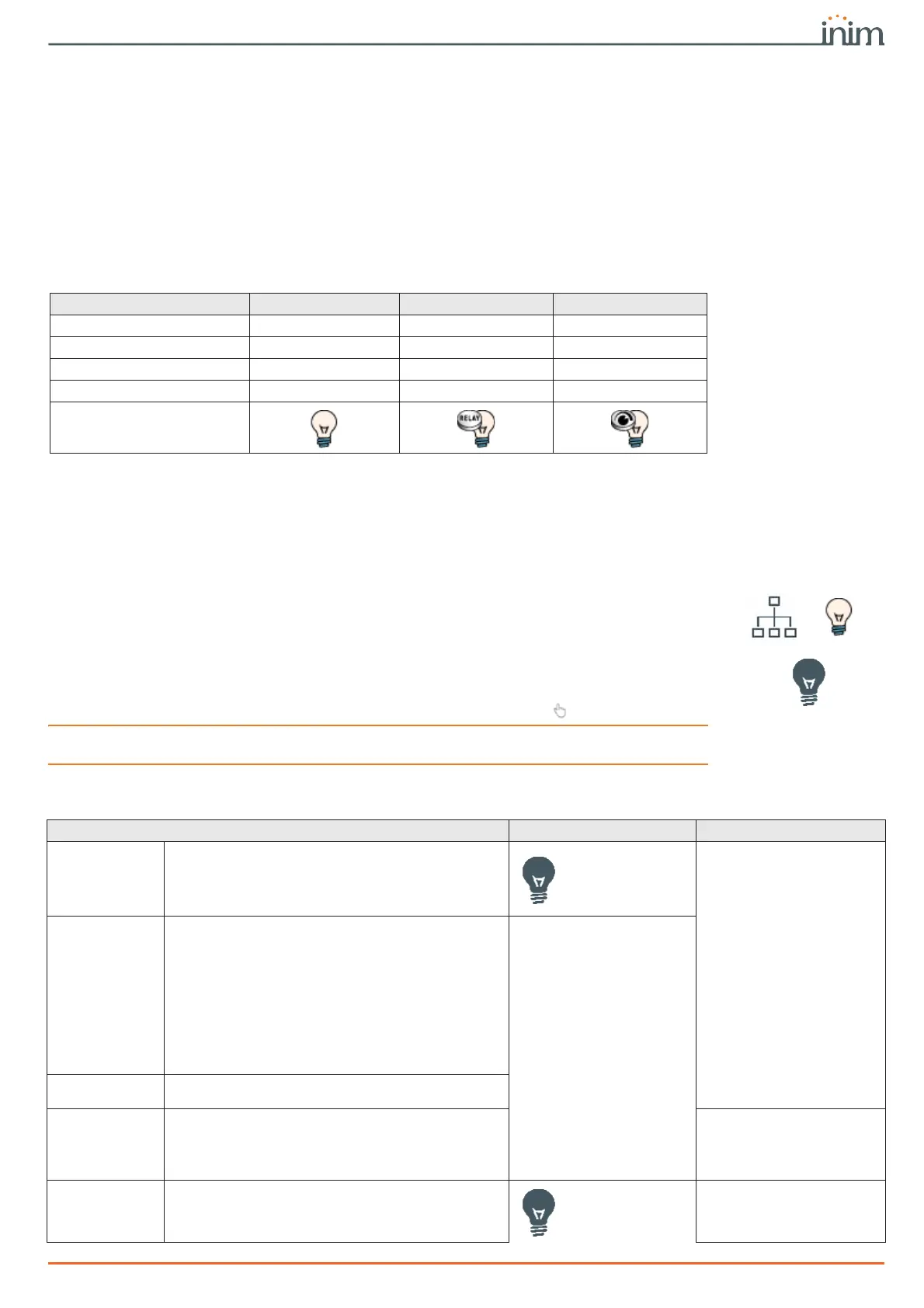

Table 6-6: Outputs - terminal type
Outputs Generic (OC) Relay Dimmer
Control panel terminals
any NO NC COM None
Expansion terminals
any None T5
Flex5/DAC terminals
any any any
Keypad terminals
any None None
icon on software
Table 6-7: Output parameters
Parameter Software section Installer menu section
Description
This is the editable output label (device description).
By default each output, except for the 3 outputs on
the control panel, acquires the description of the
device where it is located followed by the relative
terminal.
Outputs, selected
outputs
Outputs, "output"
Typology
Selection checkbox for operative category of the
output.
•generic
•gate
• lighting
• roller blinds
•garden sprinkler
• climate
• household appliances
• signalling
•fire
•intrusion
Monostable time
Checkbox where you can set the monostable time if
the “Monostable” option is activated.
ON icon
OFF icon
Checkbox for the selection of one of the 80 icons
available (refer to Appendix C, Available Icons) that
can be associated with the “Output activation /
Output deactivation” shortcut assigned to the
selected output.
Not available
Events
Clicking on the Events option in the table opens a
window containing a list of events which, when they
occur will activate the output.
You can delete a single event by clicking on Delete.
Outputs
Not available
