7 Appendix B

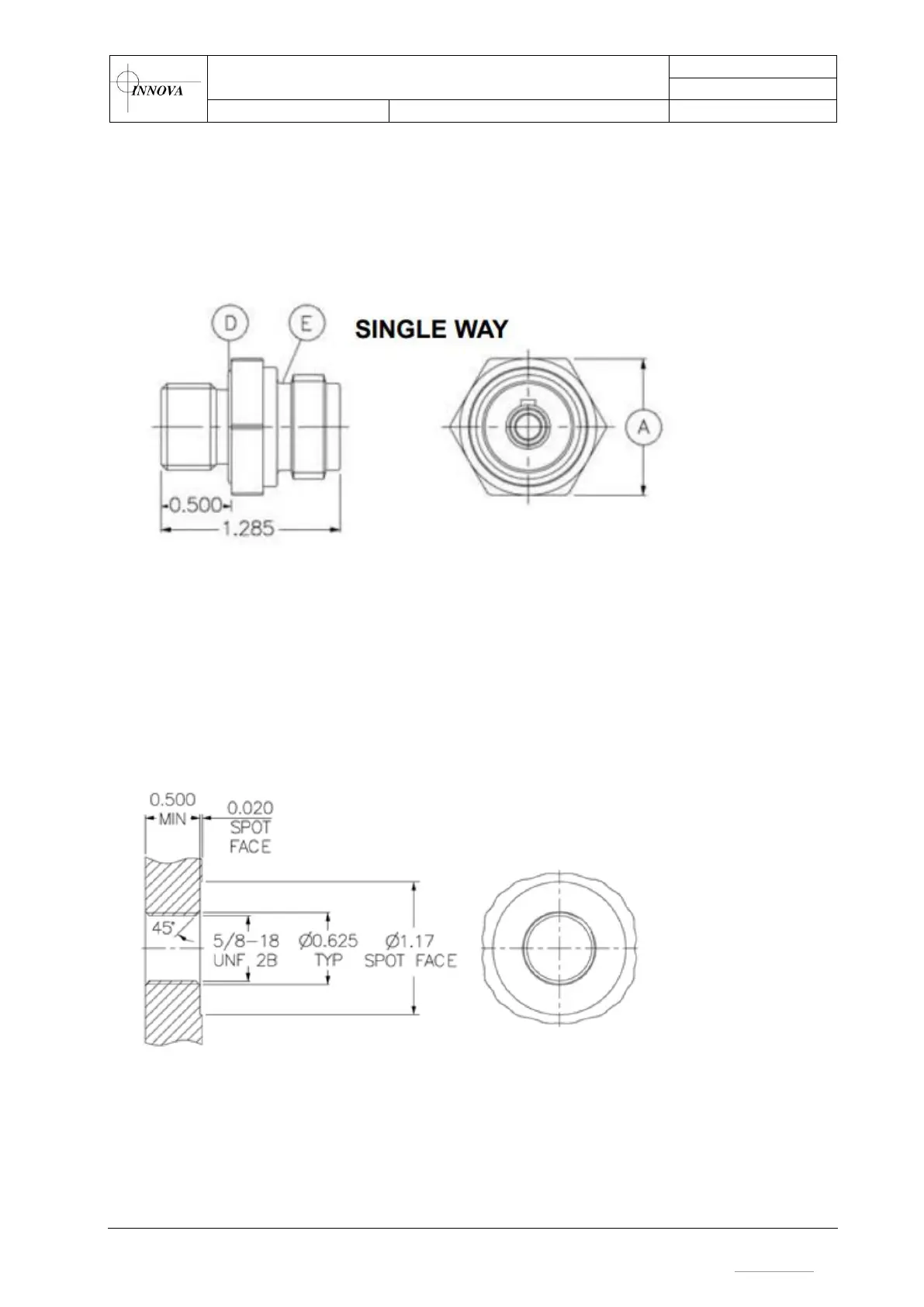

Fibre connector interface details, Seacon OPT-F-1-BCR
A – flats (inches) : 0,980
C – O-ring : 018
D – O-ring : 017
E – O-ring (internal) : 011
Interface dimensions, threaded mounting:

Innova MATRIX MK II+ Specifications
