Innova – Matrix MK II+
Operation and Maintenance Manual
Date
12.12.2017
Page
46 of 74
Project No.:
604653
Document No.:
MAN-000015294
Rev.
5
P.O. BOX 390 Tel.: +47 51 96 17 00 post@innova.no
4067 Stavanger, Norway Fax.: +47 51 96 17 01 www.innova.no

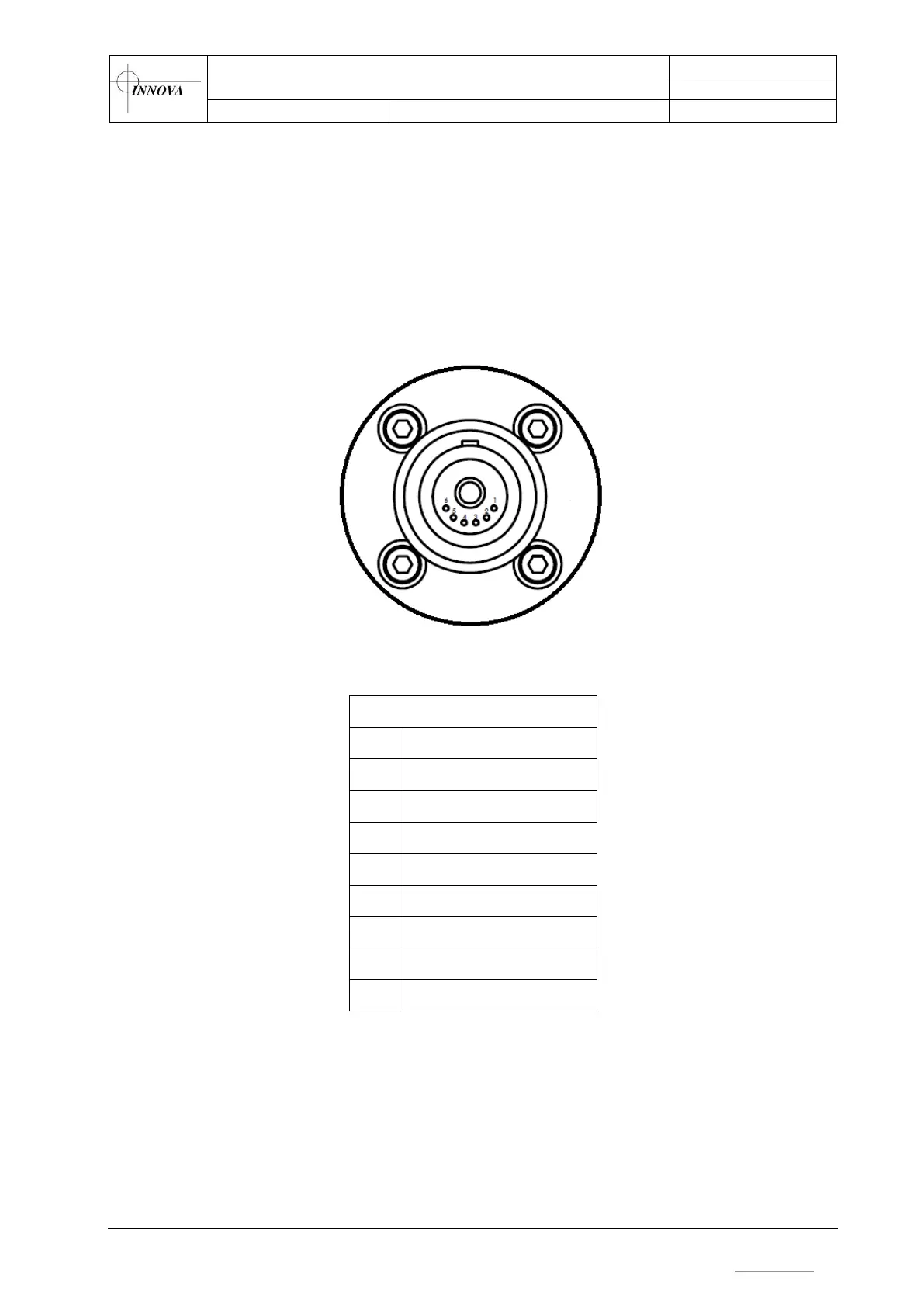

6.10 C5 - HD-SDI Camera Interface (Optional)
6.10.1 Subsea
Power output:
• 24VDC
• Fuse size settable in software, Max 2A
• software resettable fuse
Seacon MINL-75Ω
PIN
FUNCTION
1
RS232 Tx (Downlink)
2
RS232 Rx (Uplink)
3
N/C
4
N/C
5
24VDC
6
0V/RS232 0V
Coax Shield
Coax Center
Recommended mate for Seacon MINL-5515-75Ω: Seacon MINL-5515-75 Ω Attachable
