6.5 C1 – Multibeam interface
6.5.1 Subsea
Power output:
• Software switchable 48VDC or 24VDC
• Fuse size settable in software, Max 6A
• Software resettable fuse

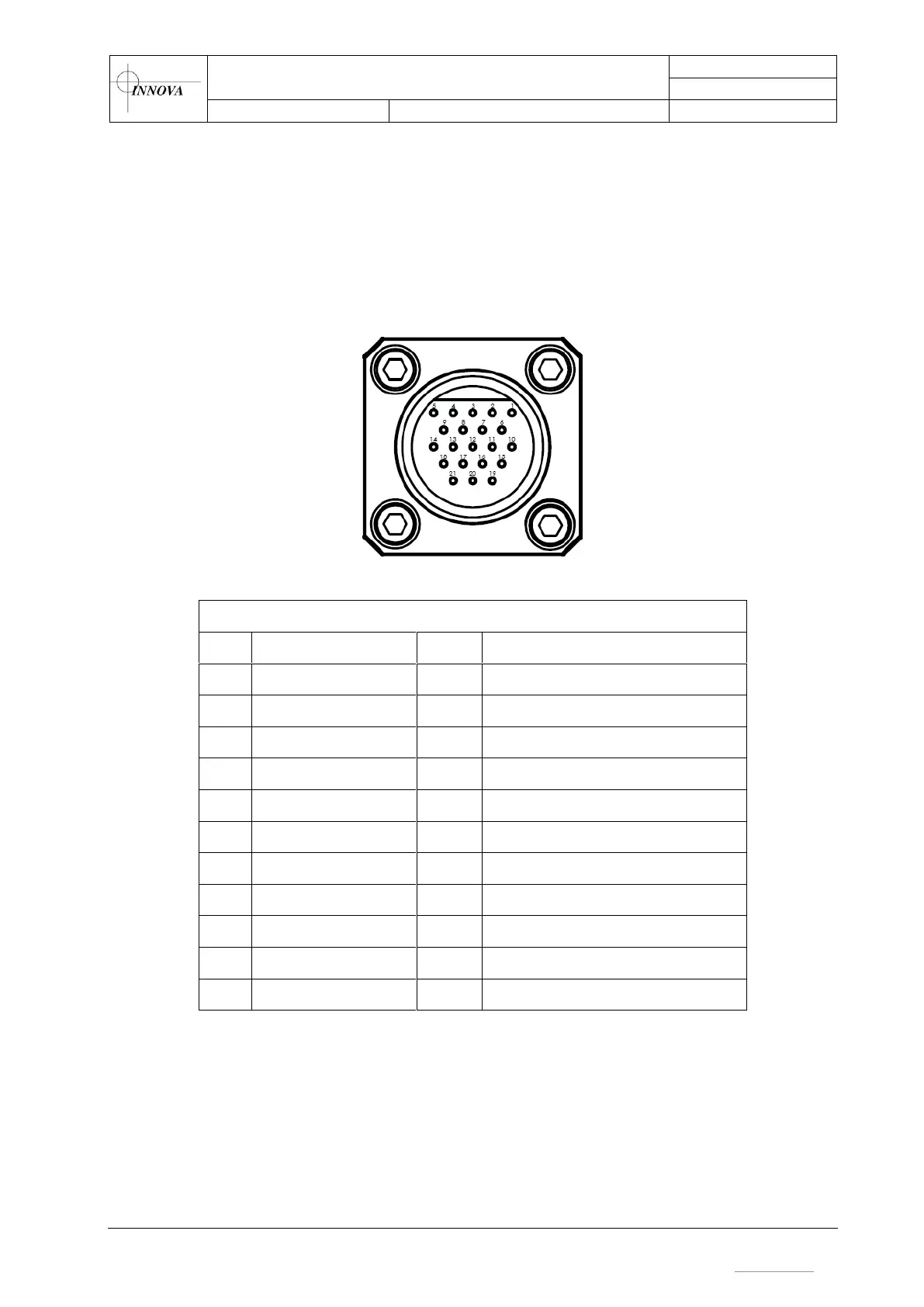

Seacon 5506-2021
PIN
FUNCTION
PIN
FUNCTION
1
Eth, BiDir B-
12
N/C
2
Eth, BiDir B+
13
Eth, BiDir C+
3
N/C
14
Eth, BiDir C-
4
Eth, BiDir D-
15
RS232 0V
5
Eth, BiDir D+
16
RS232 Tx (Downlink)
6
48VDC
17
RS232 Rx (Uplink)
7
0V
18
PECL Screen
8
24VDC
19
PECL Signal
9
NC
20
Sync -
10
Eth, BiDir A-
21
Sync +
11
Eth, BiDir A+
Recommended mates for Seacon 5506-2021: Seacon 55A1-2021 or Seacon 5501-2021
