Innova – Matrix MK II+
Operation and Maintenance Manual
Date
12.12.2017
Page
37 of 74
Project No.:
604653
Document No.:
MAN-000015294
Rev.
5
P.O. BOX 390 Tel.: +47 51 96 17 00 post@innova.no
4067 Stavanger, Norway Fax.: +47 51 96 17 01 www.innova.no

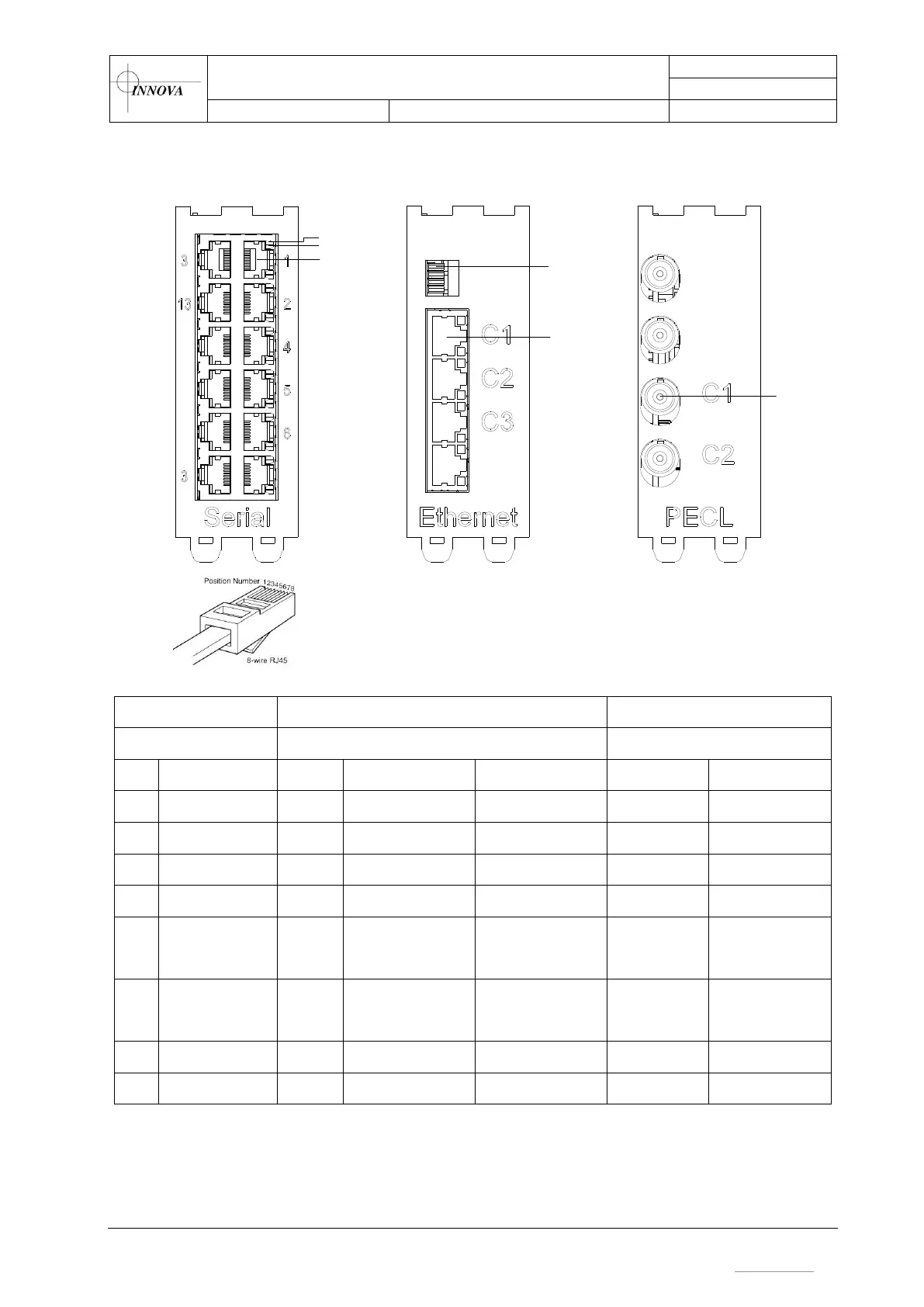

6.5.2 Topside
C1 RX LED
C1 TX LED
C1 RS232
C1 Gbit jumper
(default off)
C1 Ethernet
C1 PECL
RS232 Interface
Ethernet Interface
PECL (75 Ω) Interface
RJ-45 (1)
RJ-45(C1)
BNC(C1)
Pin
Function
Pin
Function
Color
Pin
Function
1
N/C
1
Eth, BiDir A+
White/Orange
Screen
PECL Screen
2
N/C
2
Eth, BiDir A-
Orange
Center
PECL Signal
3
N/C
3
Eth, BiDir B+
White/Green
4
RS232 - 0V
4
Eth, BiDir C+
Blue
5
RS232 – RX
(Downlink)
5
Eth, BiDir C-
White/Blue
6
RS232 – TX
(Uplink)
6
Eth, BiDir B-
Green
7
N/C
7
Eth, BiDir D+
White/Brown
8
N/C
8
Eth, BiDir D-
Brown
