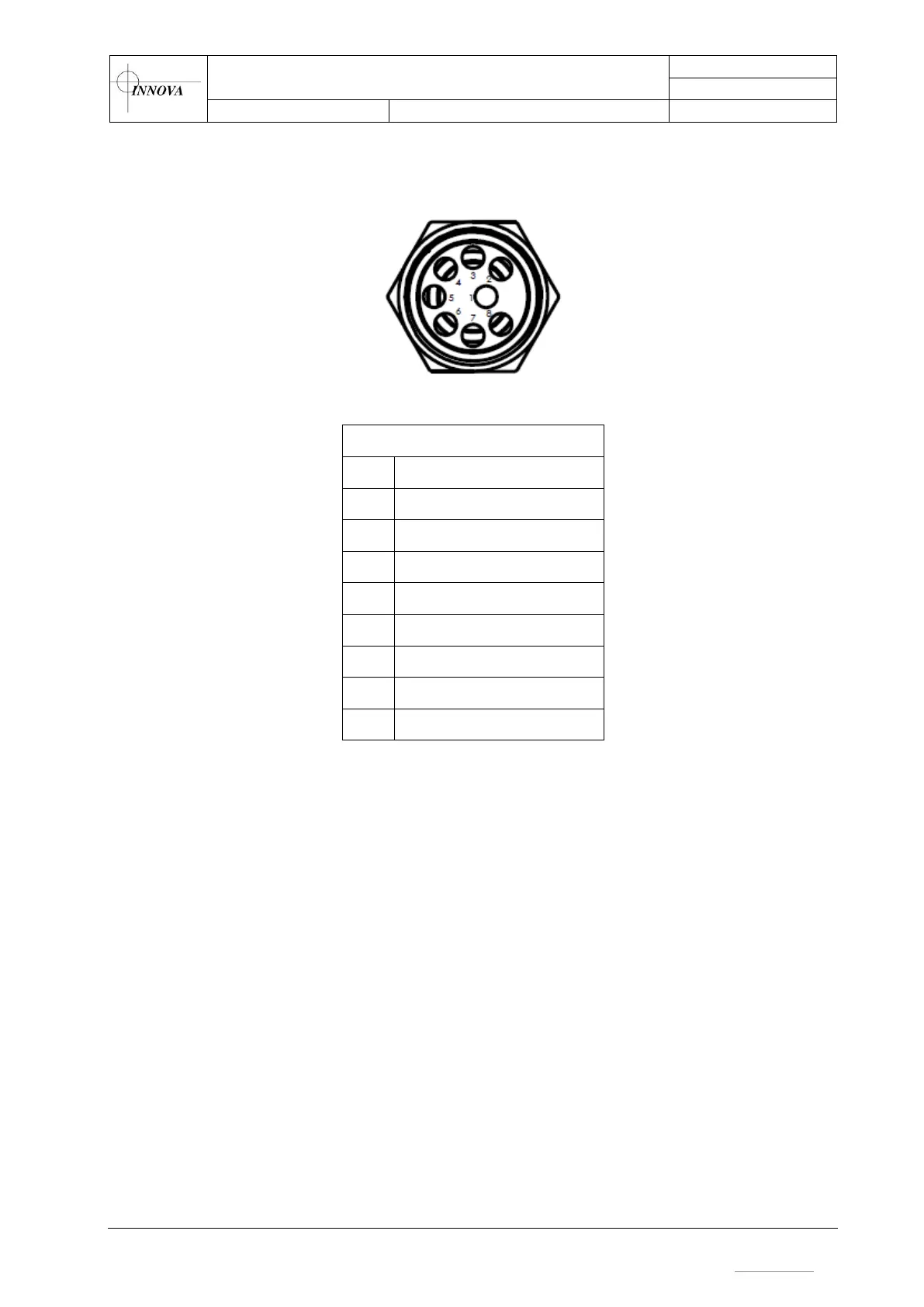

6.15 C8 – RS232 Interface
6.15.1 Subsea
Seacon MCBH8F
PIN
FUNCTION
1
0V
2
24V
3
N/C
4
RS232 0V
5
RS232 Tx (Downlink)
6
N/C
7
RS232 Rx (Uplink)
8
N/C
Recommended mates for Seacon MCBH8F: Seacon MCIL8M
