Innova MATRIX MK II+ User Manual

Innova – Matrix MK II+
Operation and Maintenance Manual
Date
12.12.2017
Page
38 of 74
Project No.:
604653
Document No.:
MAN-000015294
Rev.
5
P.O. BOX 390 Tel.: +47 51 96 17 00 post@innova.no
4067 Stavanger, Norway Fax.: +47 51 96 17 01 www.innova.no
6.6 C2 – Multibeam interface
6.6.1 Subsea
Power output:
• Software switchable 48VDC or 24VDC
• Fuse size settable in software, Max 6A
• Software resettable fuse

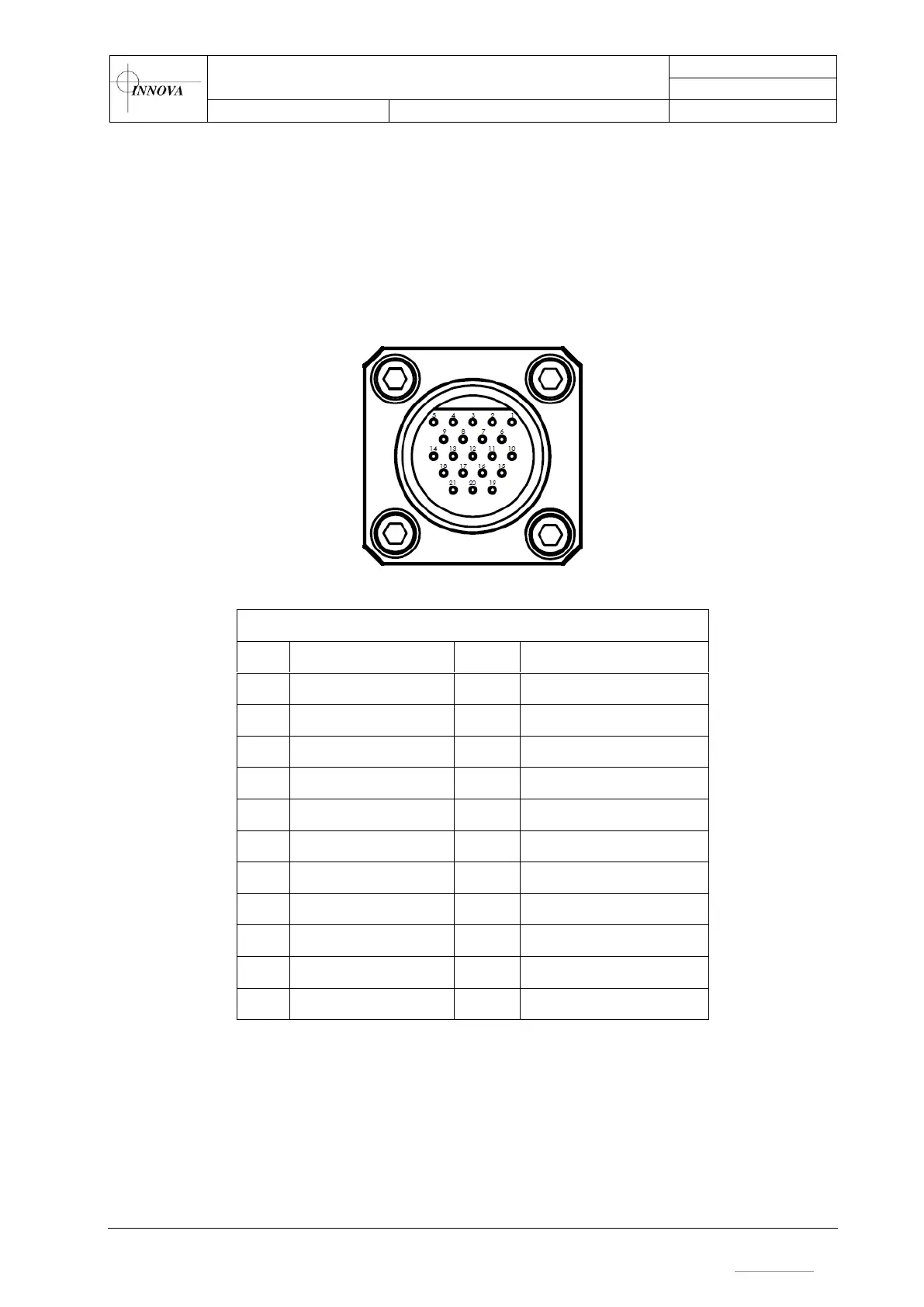

Seacon 5506-2021
PIN
FUNCTION
PIN
FUNCTION
1
Eth, BiDir B-
12
N/C
2
Eth, BiDir B+
13
Eth, BiDir C+
3
N/C
14
Eth, BiDir C-
4
Eth, BiDir D-
15
RS232 0V
5
Eth, BiDir D+
16
RS232 Tx (Downlink)
6
48VDC
17
RS232 Rx (Uplink)
7
0V
18
PECL Screen
8
24VDC
19
PECL Signal
9
NC
20
Sync -
10
Eth, BiDir A-
21
Sync +
11
Eth, BiDir A+
Recommended mates for Seacon 5506-2021: Seacon 55A1-2021 or Seacon 5501-2021
