Innova MATRIX MK II+ User Manual

Innova – Matrix MK II+
Operation and Maintenance Manual
Date
12.12.2017
Page
55 of 74
Project No.:
604653
Document No.:
MAN-000015294
Rev.
5
P.O. BOX 390 Tel.: +47 51 96 17 00 post@innova.no
4067 Stavanger, Norway Fax.: +47 51 96 17 01 www.innova.no

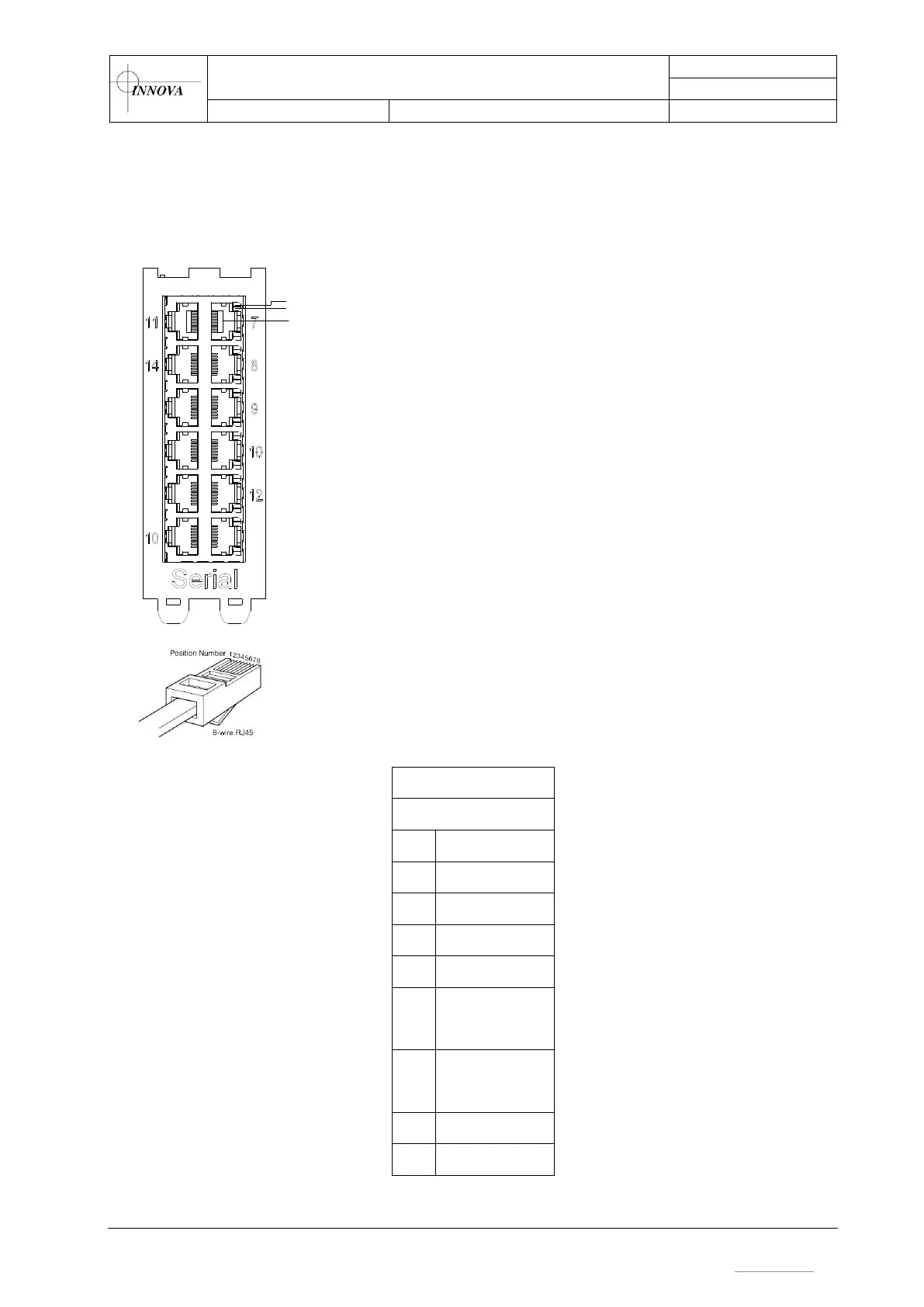

6.14.2 Topside
C7 RX LED
C7 TX LED
C7 RS232
RS232 Interface
RJ-45(7)
Pin
Function
1
N/C
2
N/C
3
N/C
4
RS232 - 0V
5
RS232 – RX
(Downlink)
6
RS232 – TX
(Uplink)
7
N/C
8
N/C
