Innova – Matrix MK II+
Operation and Maintenance Manual
Date
12.12.2017
Page
58 of 74
Project No.:
604653
Document No.:
MAN-000015294
Rev.
5
P.O. BOX 390 Tel.: +47 51 96 17 00 post@innova.no
4067 Stavanger, Norway Fax.: +47 51 96 17 01 www.innova.no

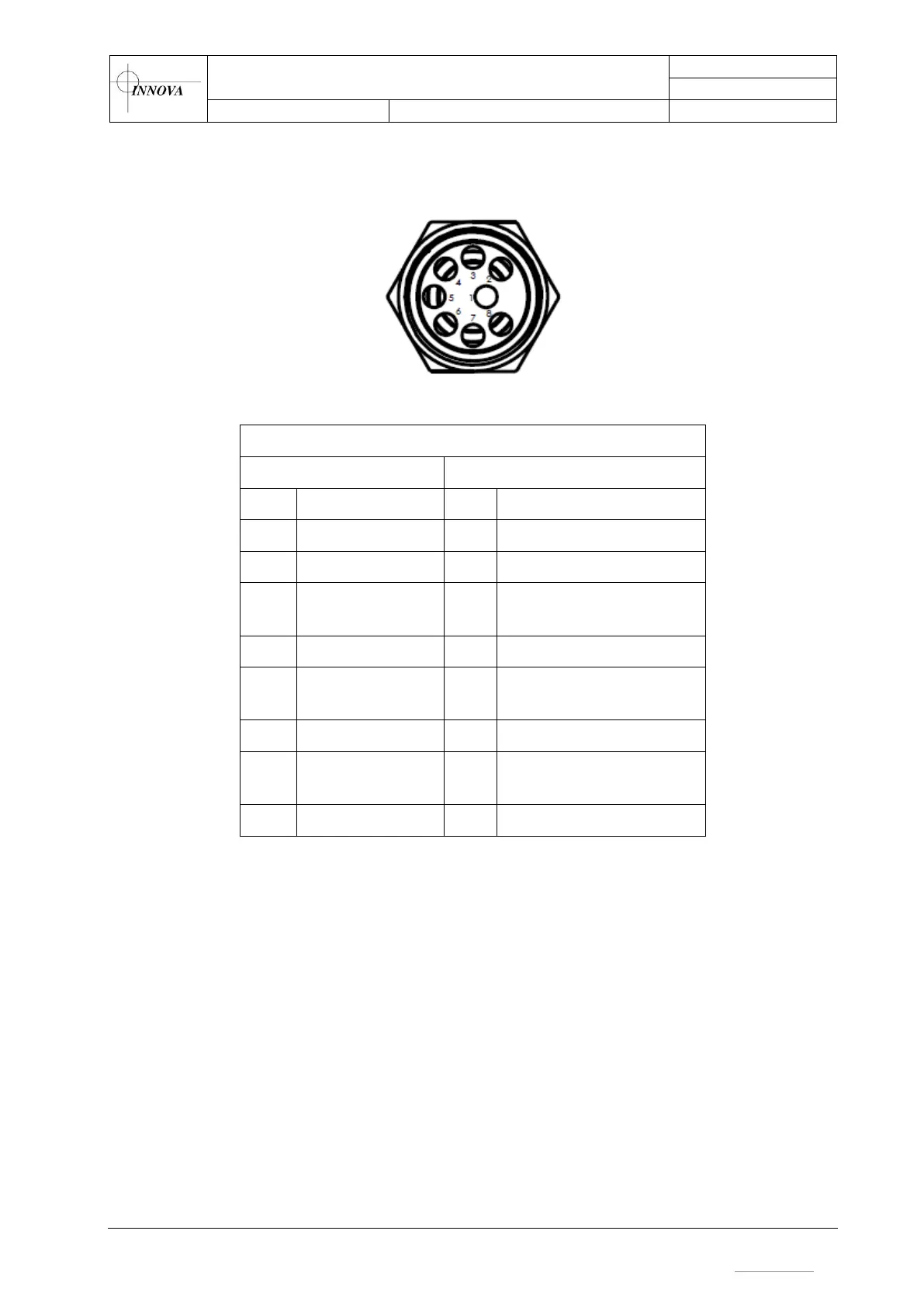

6.16 C9 – 100Mbps Ethernet/TTL or RS232 Interface
6.16.1 Subsea
Seacon MCBH8F
OPTIONAL
STANDARD
PIN
FUNCTION
PIN
FUNCTION
1
0V
1
0V
2
24V
2
24V
3
N/C
3
TTL 5V (Same TTL split
out on both C10 and C9)
4
RS232 0V
4
TTL 0V
5
RS232 Tx
(Downlink)
5
Eth, TX+
6
N/C
6
Eth, RX+
7
RS232 Rx
(Uplink)
7
Eth, TX-
8
N/C
8
Eth, RX-
Recommended mates for Seacon MCBH8F: Seacon MCIL8M
