Innova MATRIX MK II+ User Manual

Innova – Matrix MK II+
Operation and Maintenance Manual
Date
12.12.2017
Page
30 of 74
Project No.:
604653
Document No.:
MAN-000015294
Rev.
5
P.O. BOX 390 Tel.: +47 51 96 17 00 post@innova.no
4067 Stavanger, Norway Fax.: +47 51 96 17 01 www.innova.no
LINK
DV
Fiber
LINK
C4 – DV Camera 1
C5 – DV Camera 2
C6 – DV Camera 3
Ch1
Ch2
Ch3
Ch4
FIBER
Camera Video Signal

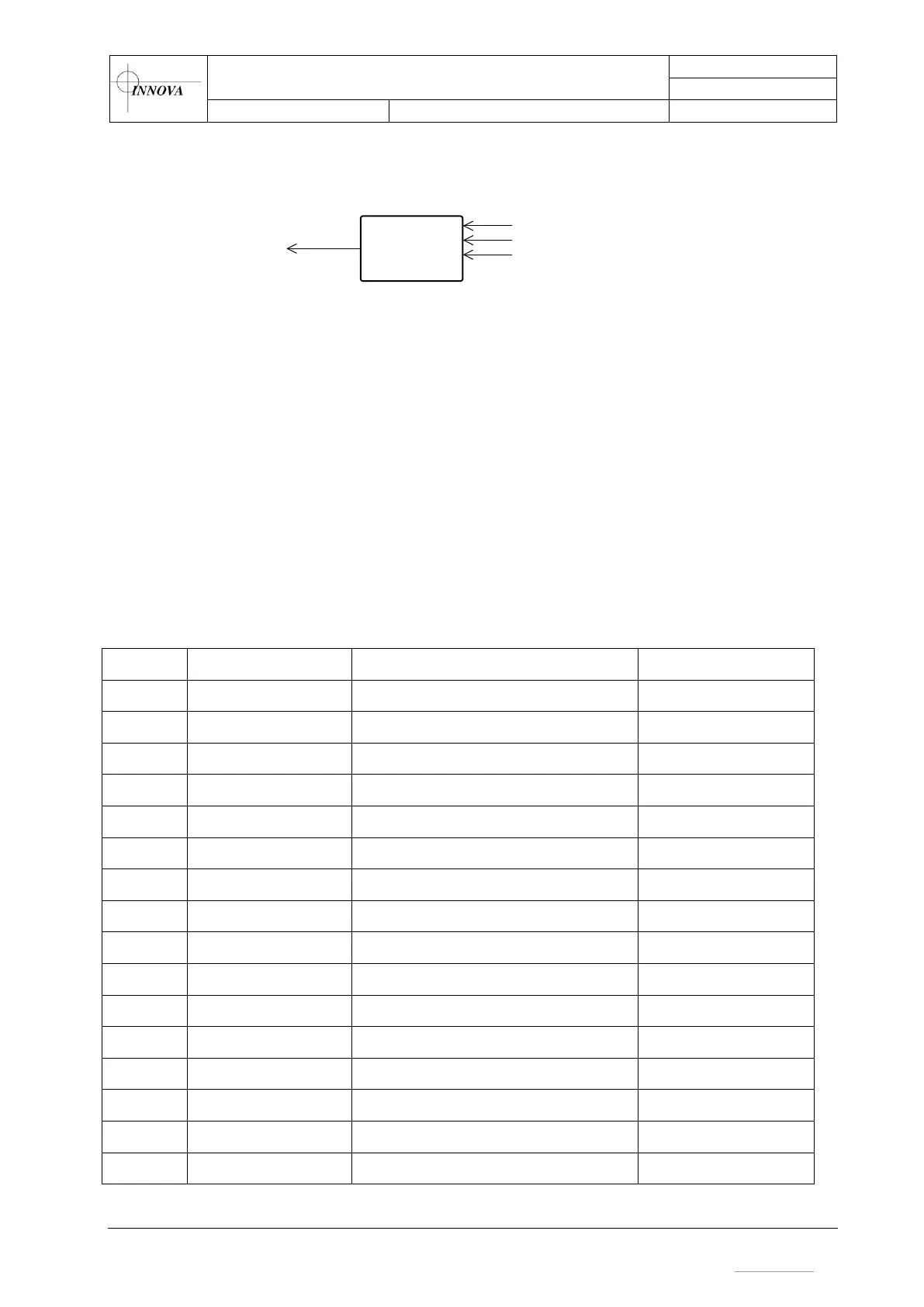

Figure 16 - DV camera signal
5.3 Topside Console system
The topside Matrix rack system is used to control the Matrix subsea pod.
The Matrix rack utilise the following LINK output boards:
• Digital Video HD-SDI 4ch output board (optional)
• Ethernet Base-T 4 Ch. output board
• PECL board (optional)
• Analogue Video output board
• 2 off serial extension output boards
Serial channels overview:
Serial board number 1: A11 and serial board number 2: A12.
Channel
Connector output
Function
Speed (bps)
A11, 2
C7
RS232
max 115kbps
A11, 3
C8
RS232
max 115kbps
A11, 4
N/C
RS232
max 115kbps
A11, 5
C10
RS232
max 115kbps
A11, 6
C12
RS232
max 115kbps
A11, 7
C11
RS232/RS485
max 115kbps
A11, 8
C3
RS232/RS485
max 115kbps
A12, 9
C3
Trigger
A12, 2
C4
RS232 DV camera 1 ctrl.
max 115kbps
A12, 3
C5
RS232 DV camera 2 ctrl.
max 115kbps
A12, 4
C6
RS232 DV camera 3 ctrl.
max 115kbps
A12, 5
C1
RS232 MBE 1
max 115kbps
A12, 6
C2
RS232 MBE 2
max 115kbps
A12, 7
C13
RS232/RS485
max 115kbps
A12, 8
C14
RS232/RS284
max 115kbps
A12, 9
C10
Trigger
Table 1
