6.9 C4 – Analog video Camera Interface (Optional)
6.9.1 Subsea
Power output:
• 24VDC
• Fuse size settable in software, Max 2A
• software resettable fuse

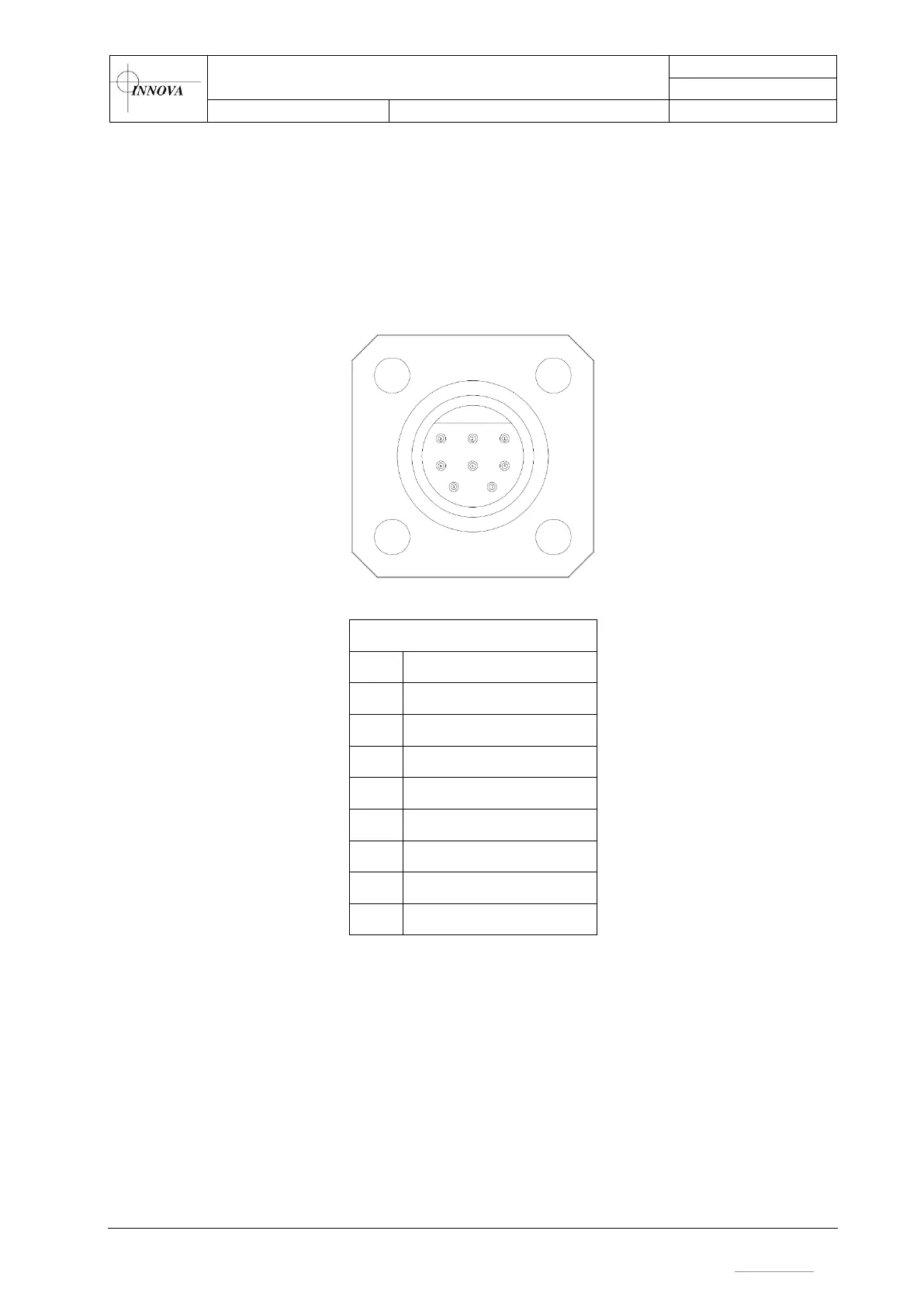

Seacon 5506-1508
PIN
FUNCTION
1
0V/ Video screen
2
24VDC
3
RS232 0V
4
RS232 Rx (Uplink)
5
Video
6
RS232 Tx (Downlink)
7
N/C
8
N/C
Recommended mate for Seacon 5506-1508: Seacon 5501-1508 or Seacon 55A1-1508
